Toyota CRESSIDA — WINDSHIELD WASHER

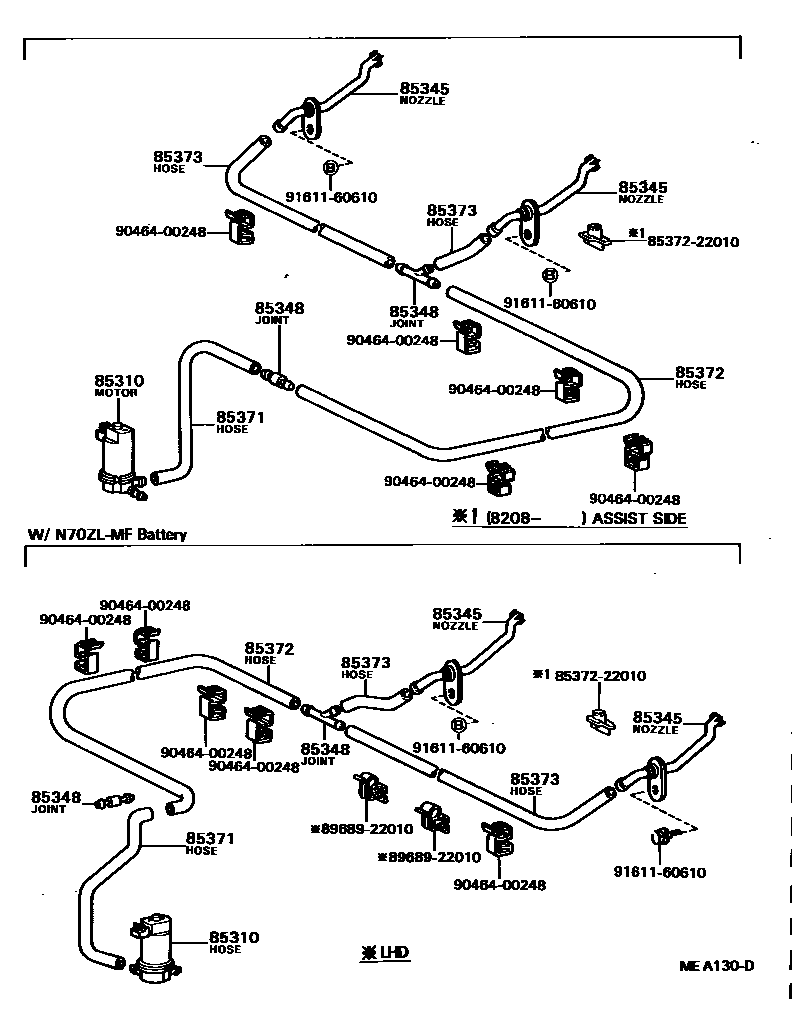

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20100i198009-198105
main85310-22080i198208-198407
85345NOZZLE, WINDSHIELD WASHER
main85341-22130×2i198009-198208
main85341-22131×2i198208-198504
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85355-14010i198009-198504
3 WAY
main85355-87201i198009-198504
2 WAY
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33368i198208-198407
L=1000(*H,L=400)
main90446-06013i198009-198504
L=1450(*H,L=320)
main90446-07001i198009-198407
L=2200,*H,L=250,W/NS70ZL-MF BATTERY
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-07001i198009-198504
L=1800(*H,L=1300)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i198009-198208
L=650
8537222010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-22010
8968922010CLAMP, WIRELESS DOOR LOCK
main89689-22010
9046400248
main90464-00248
9161160610
main91611-60610

10 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CRESSIDA

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: SWITCH & RELAY & COMPUTER, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
