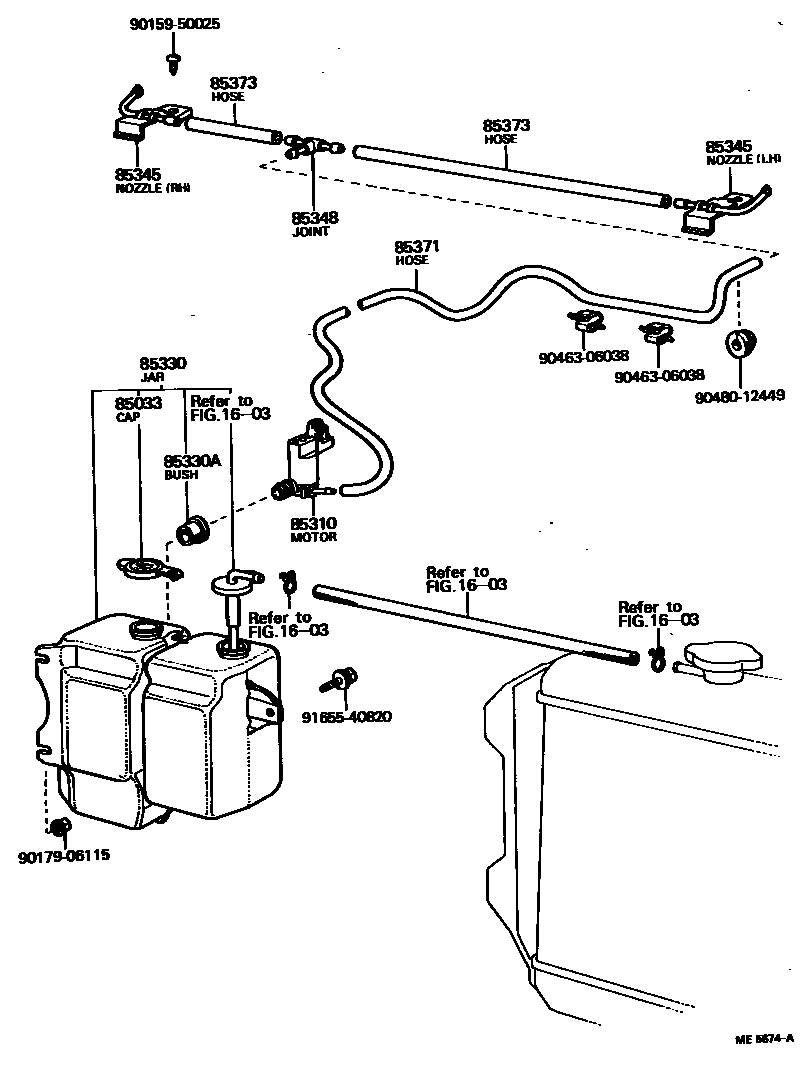

Toyota CRESSIDA — WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85033CAP ASSY, WINDSHIELD WASHER

main85332-20020i197612-198008

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100i197612-197901

main85310-22040i197901-198008

85330JAR ASSY, WINDSHIELD WASHER

main85330-22030i197612-197710

main85330-22031i197710-198008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i197612-198008

85345NOZZLE, WINDSHIELD WASHER

main85341-22060i197612-198008

RH.

main85341-22070i197612-198008

LH.

main85341-22090i197612-198008

RH.

main85341-22100i197612-198008

LH.

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011i197612-198008

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33271i197612-197912

L=1700

main90099-33313i197612-197808

L=2000

main90446-06006i197912-198008

L=2000,H,L=1900

main90446-06012i197808-197912

L=1900

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33314i197612-197912

L=1000(*H,L=140)

main90446-06013i197912-198008

L=1000(*H,L=400)

main90446-06286i197612-197912

L=1000(*H,L=400)

9015950025

main90159-50025

9017906115

main90179-06115

9046306038

main90463-06038

9048012449

main90480-12449

9165540820

main91655-40820

14 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CRESSIDA

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CRESSIDA. Key components include: RADIATOR & WATER OUTLET, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
