Toyota CRESSIDA — VENTURI

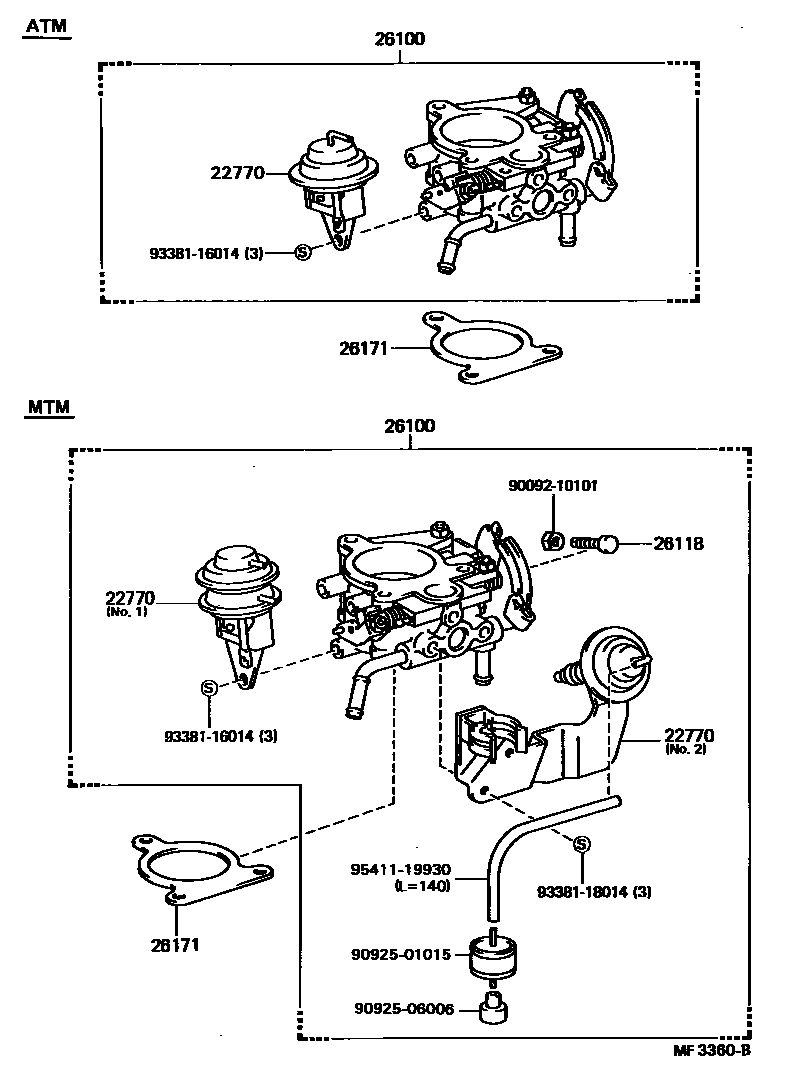

Parts diagram

22770ACTUATOR, IDEL UP

main26133-54040i198408-198608

NO.2

main26133-54051i198408-198508

main26133-54070i198408-198608

NO.1

main26133-54080i198508-198608

26100VENTURI ASSY

main26100-54032i198408-198608

main26100-54070i198408-198508

main26100-54071i198508-198608

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i198408-198608

26171GASKET, VENTURI

main26171-54010i198408-198608

9009210101

main90092-10101

9092501015

main90925-01015

9092506006

main90925-06006

9338116014

main93381-16014

9338118014

main93381-18014

9541119930

main95411-19930

10 parts on this diagram · 1 diagram in section

VENTURI for Toyota CRESSIDA

This section contains 10 genuine Toyota parts for the VENTURI system of the Toyota CRESSIDA. Key components include: ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
