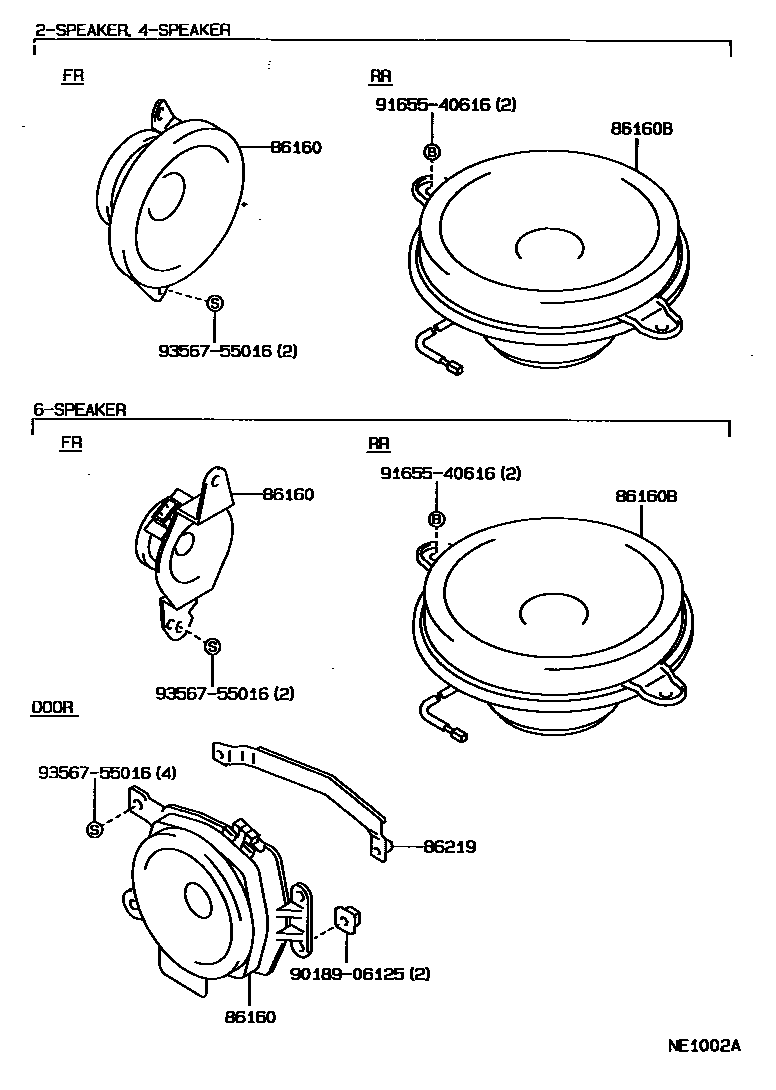

Toyota CRESSIDA — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-22440×2iGX81,LX80,MX81,RX8#..(GL,GLX)..GEN; RX80..XL;RX80..GL..V;MX8#..GD,GL,XL198808-198809
INSTRUMENT PANEL
INSTRUMENT PANEL
INSTRUMENT PANEL; W(AM/FM MPX ETR CST A.F. 2DIN RADIO),INSTRUMENT PANEL
W(AM/FM MPX ETR CST A.F. 2DIN RADIO)
W(AM/FM MPX ETR CST A.F. 2DIN RADIO)
DOOR,RH; W(AM/FM MPX ETR CST A.F. 2DIN RADIO),DOOR,RH
DOOR,LH; W(AM/FM MPX ETR CST A.F. 2DIN RADIO),DOOR,LH
RH; W(AM/FM MPX ETR CST A.F. 2DIN RADIO),RH
DOOR,RH; W(AM/FM MPX ETR CST A.F. 2DIN RADIO),DOOR,RH
86160BSPEAKER ASSY, REAR
W(AM/FM MPX ETR CST A.F. 2DIN RADIO)
W(AM/FM MPX ETR CST A.F. 2DIN RADIO)
86219BRACKET, STEREO COMPONENT SPEAKER, NO.1
RH
LH
9018906125
main90189-06125
9165540616
main91655-40616
9356755016
main93567-55016
6 parts on this diagram · 1 diagram in section
SPEAKER for Toyota CRESSIDA
This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota CRESSIDA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, STEREO COMPONENT SPEAKER, NO.1.
