Toyota CRESSIDA — SPEAKER

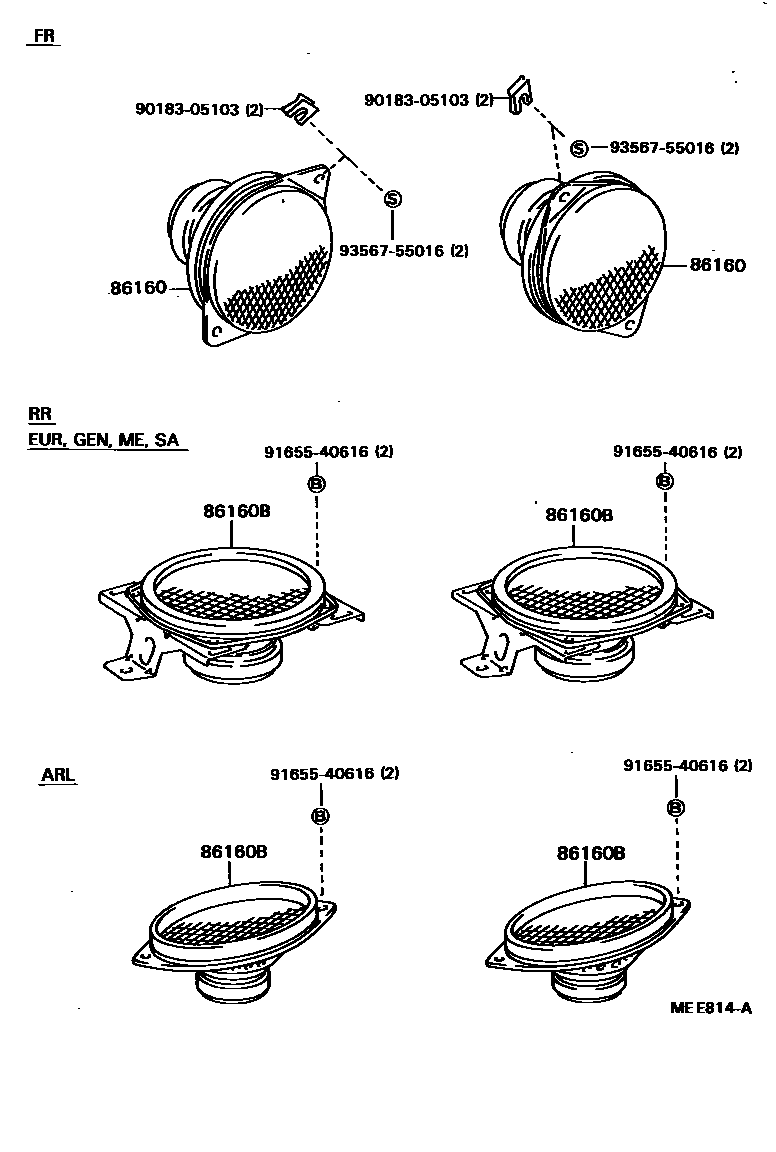

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-20230×2i198408-198808

86160BSPEAKER ASSY, REAR

main86160-22220×2i198408-198808

main86160-22240×2i198504-198808

main86160-22260×2i198408-198808

main86160-22340i198411-198808

RH

main86160-22350i198411-198808

LH

9018305103

main90183-05103

9165540616

main91655-40616

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota CRESSIDA

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota CRESSIDA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
