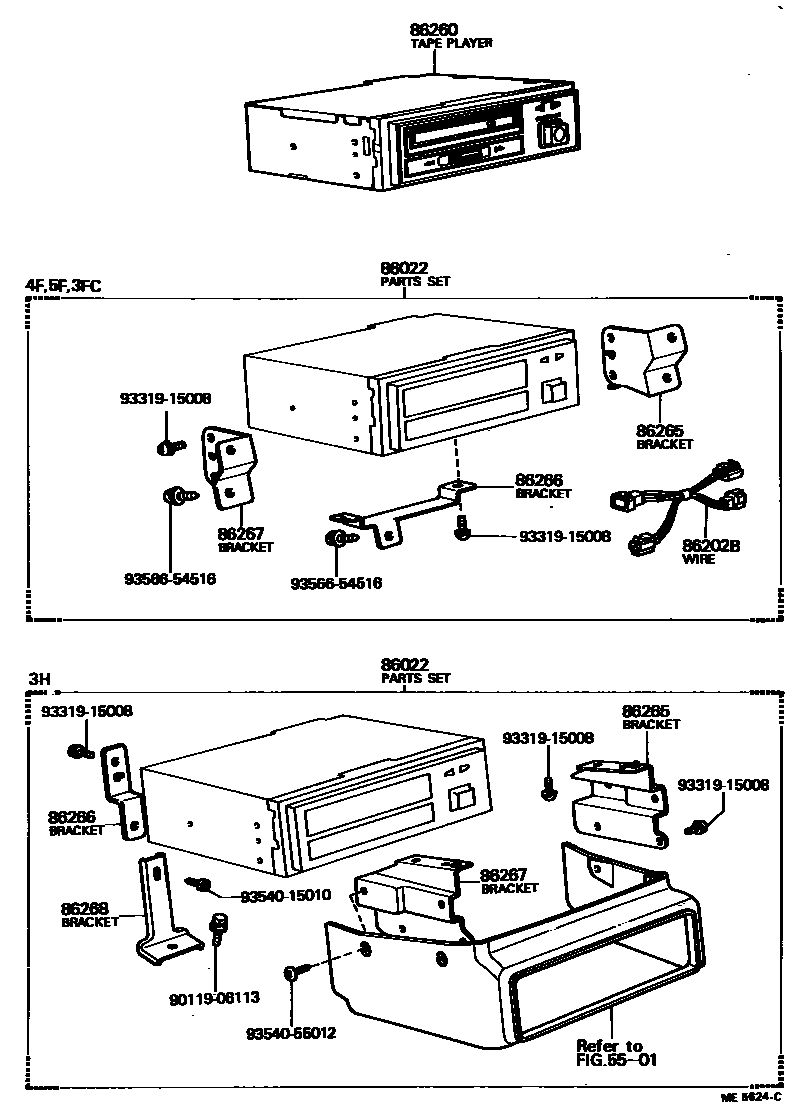

Toyota CRESSIDA — SPEAKER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86022PARTS SET, TAPE PLAYER SETTING

main86022-22020i197612-198008

main86022-22030i197612-198008

main86022-22040i197808-198008

MIDDLE EAST COUNTRIES SPEC.

86202BWIRE, TAPE PLAYER

main86202-22030i197808-198008

MIDDLE EAST COUNTRIES SPEC.

86260TAPE PLAYER ASSY

main86260-22050i197612-197708

AM,AM/FM RADIO

main86260-22051i197708-197809

AM,AM/FM RADIO

main86260-22060i197908-198008

AM/FM MULTIPLEX

main86260-22070i197809-197908

MW/SW, RADIO

main86260-22080i197808-198004

MIDDLE EAST COUNTRIES SPEC.

main86260-22081i198004-198008

MIDDLE EAST COUNTRIES SPEC.

86265BRACKET, TAPE PLAYER, NO.1

main86265-22060i197612-198008

main86265-22080i197612-198008

86266BRACKET, TAPE PLAYER, NO.2

main86266-22040i197612-198008

main86266-22050i197612-198008

main86266-22070i197808-198008

MIDDLE EAST COUNTRIES SPEC.

86267BRACKET, TAPE PLAYER, NO.3

main86265-22050i197612-198008

main86265-22070i197612-198008

86268BRACKET, TAPE PLAYER, NO.4

main86266-22060i197612-198008

9011906113

main90119-06113

9331915008

main93319-15008

9354015010

main93540-15010

9354055012

main93540-55012

9356654516

main93566-54516

13 parts on this diagram · 3 diagrams in section

SPEAKER for Toyota CRESSIDA

This section contains 20 genuine Toyota parts for the SPEAKER system of the Toyota CRESSIDA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT, PARTS SET, TAPE PLAYER SETTING, SPEAKER SET, FRONT, SPEAKER ASSY, REAR.
