Toyota CRESSIDA — PARTIAL ENGINE ASSEMBLY

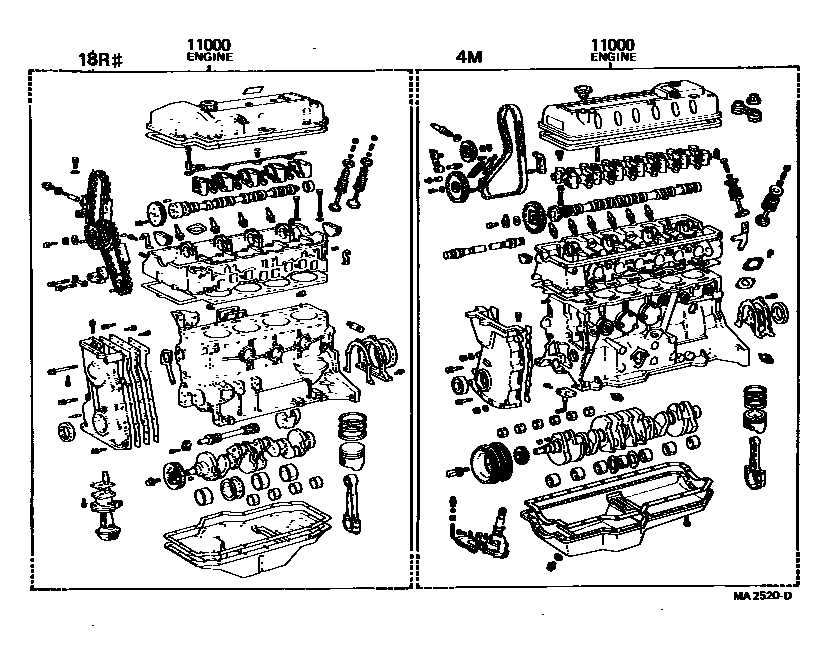

11000ENGINE ASSY, PARTIAL

main19000-34242i18R..RX3#197612-197701

main19000-34243i18R..RX3#..EUR,GEN197701-198008

main19000-34323i18RC..RX3#197707-198008

sub19000-34324

sub25601-34021

sub25601-34041

main19000-45024i4M..MX32..SA197707-197708

sub90116-10028

sub90116-10033

main19000-45025i4M..MX32..SA197708-197803

sub19000-45027

sub90179-10016

main19000-45026i4M..MX32..SA197803-198001

sub19000-45150

main19000-45080i4M..MX3#197612-197707

sub13407-45010

main19000-45081i4M..MX3#..ARL197707-197708

sub90116-10028

sub90116-10033

main19000-45082i4M..MX3#..ARL197708-197803

main19000-45083i4M..MX3#..ARL197803-197908

main19000-45084i4M..MX3#..ARL197908-198008

sub19000-45085

1 parts on this diagram · 1 diagram in section
