Toyota CRESSIDA — MOUNTING

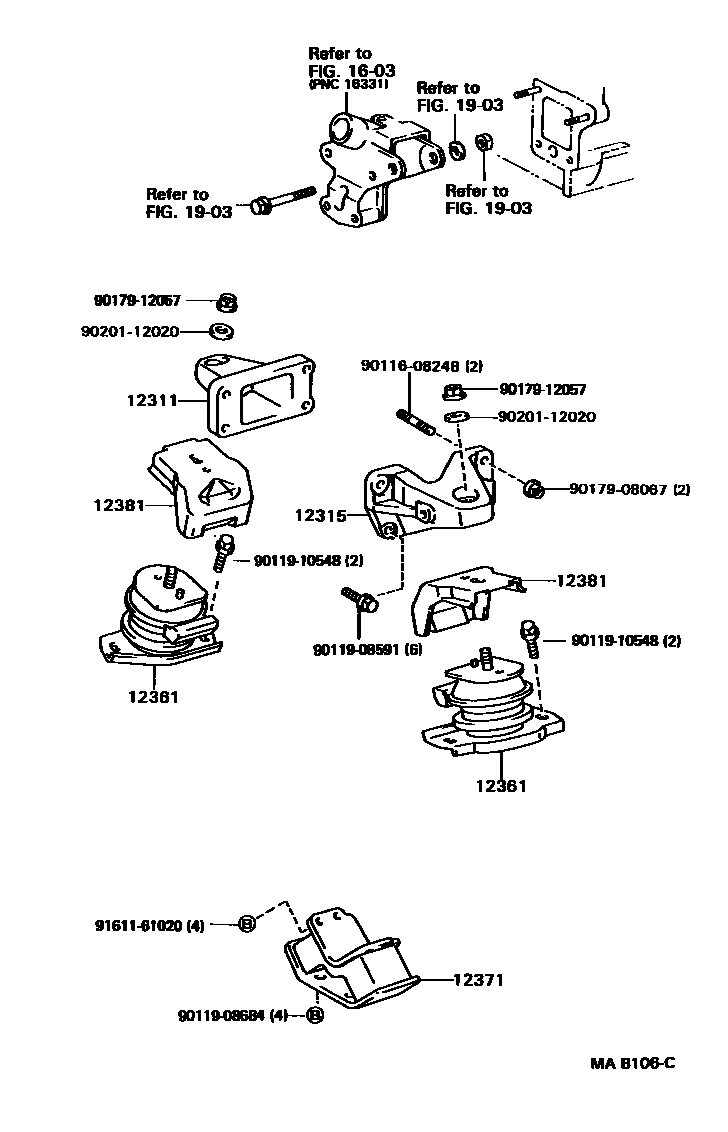

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-35040i198808-199608

main12311-42030i198808-199002

main12311-42060i199002-199302

main12311-54130i198808-199008

main12311-54190i199008-199302

main12311-70090i198808-199302

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-35020i198808-199608

main12315-42030i198808-199002

main12315-42060i199002-199302

main12315-70060i198808-199302

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35080×2i198808-199508

main12361-35100×2i199508-199608

main12361-42040×2i198808-198908

main12361-42060×2i199002-199302

main12361-54152×2i198808-198903

main12361-54153×2i198903-199302

main12361-70120×2i198808-198907

main12361-70151×2i198908-199002

main12361-70170×2i198907-198908

main12361-70180×2i198908-199302

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198808-199302

main12371-34030i198808-199209

main12371-35070i199209-199608

main12371-42020i198808-199302

main12371-54040i198808-199302

12381STABILIZER, ENGINE MOUNTING

main12381-35030i198808-199608

RH

main12381-42020×2i198808-199002

main12381-42040×2i199002-199302

main12381-70010×2i198808-199302

main12382-35020i198808-199608

LH

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1903ALTERNATOR

→ Go to FIG 19-03

9011608248

main90116-08248

9011908591

main90119-08591

9011908684

main90119-08684

9011910548

main90119-10548

9017908067

main90179-08067

9017912057

main90179-12057

9020112020

main90201-12020

9161161020

main91611-61020

15 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota CRESSIDA

This section contains 35 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
