Toyota CRESSIDA — MOUNTING

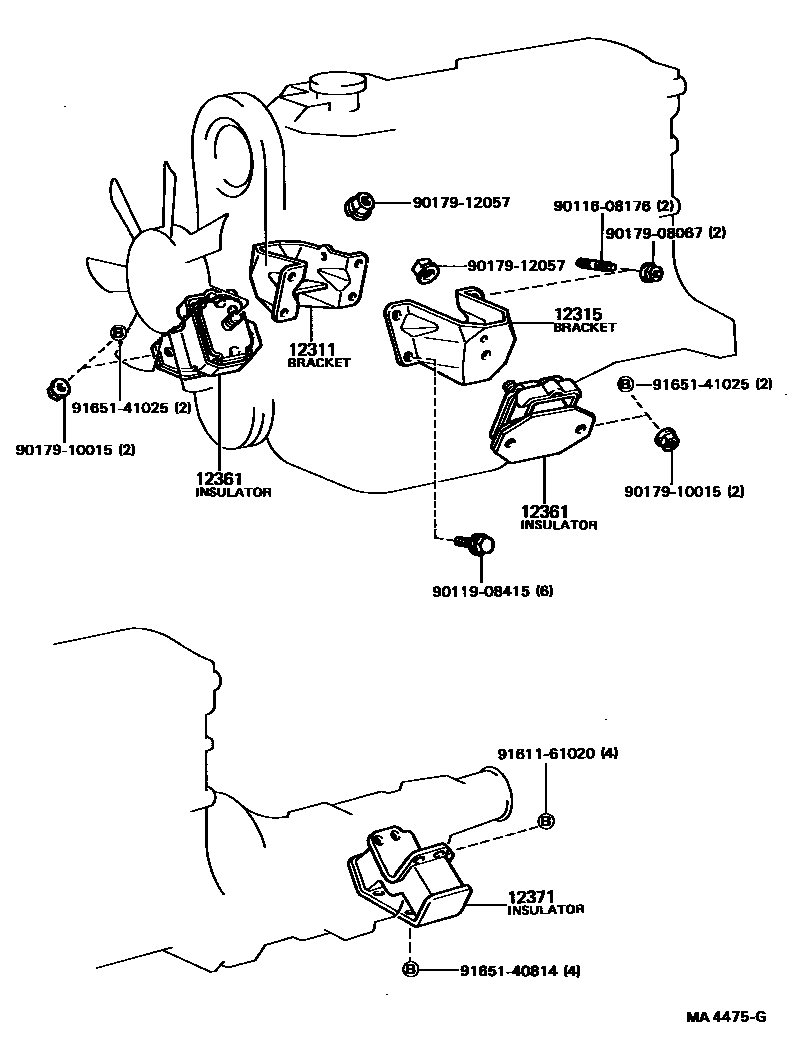

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-35040i198607-198808

main12311-37010i198408-198607

main12311-41051i198408-198808

main12311-54070i198408-198808

main12311-70050i198408-198808

main12311-71010i198502-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54040i198408-198808

main12315-35020i198607-198808

main12315-37020i198408-198607

main12315-41071i198408-198808

main12315-70011i198408-198808

main12315-71010i198502-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35070×2i198607-198808

main12361-37030×2i198408-198607

main12361-38120×2i198502-198508

MARUYASU

main12361-38130×2i198502-198508

TOYO

main12361-41080×2i198408-198808

main12361-41082×2i198508-198808

main12361-43020×2i198408-198508

main12361-54150×2i198408-198410

main12361-54151×2i198410-198507

main12361-54152×2i198507-198808

main12361-70030×2i198408-198608

main12361-71020×2i198508-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i198408-198808

main12371-34030i198408-198808

main12371-43020i198408-198808

main12371-54040i198408-198808

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017910015

main90179-10015

9017912057

main90179-12057

9161161020

main91611-61020

9165140814

main91651-40814

9165141025

main91651-41025

12 parts on this diagram · 7 diagrams in section

MOUNTING for Toyota CRESSIDA

This section contains 38 genuine Toyota parts for the MOUNTING system of the Toyota CRESSIDA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
