Toyota CRESSIDA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22200-12i199008-199509

NEW MAROON,TRIM3#

main87810-22200-13i199008-199302

MEDIUM GRAY,TRIM1#

main87810-22200-14i198808-199008

LIGHT BLUE,TRIM8#

main87810-22200-16i198808-199008

LIGHT SABLE,TRIM3#,4#

main87810-22220-D0i199509-199608

NEW MAROON,TRIM3#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198808-199608

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22050i198808-199309

main87828-23010i199309-199608

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22050-04i198808-199008

BLUE,TRIM8#

main87834-22050-06i199008-199302

SABLE,TRIM4#

main87834-22050-12i199008-199608

NEW MAROON,TRIM3#

main87834-22050-13i199008-199302

MEDIUM GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-22830i198808-199001

main87931-22843i199001-199008

REMORT CONTROL MIRROR

main87931-22860i198808-199302

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-22820i198808-199001

main87961-2A012i199001-199008

REMORT CONTROL MIRROR

main87961-2A030i198808-199302

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-22760-01i198808-199008

BLACK,202

main87910-22760-02i198808-199008

RED MICA,3H4

main87910-22760-03i198808-199302

SUPER SILVER METALLI,176

main87910-22760-04i198808-199302

LIGHT BLUE METALLIC,8G2

main87910-22760-05i198808-198908

SABLE MICA METALLIC,4K2

main87910-22760-06i198908-199008

DARK BROWN MICA M,4L4

main87910-22760-08i198808-199302

SUPER WHITE,050

main87910-22760-12i199008-199302

RED M M,3J9

main87910-22760-13i198808-199008

GRAY MICA METALLIC,170

main87910-22760-14i199008-199302

BLUE M,869

main87910-22760-15i199008-199302

BEIGE M M,4J1

main87910-22770-01i198808-199008

BLACK,202

main87910-22770-02i198808-199008

RED MICA,3H4

main87910-22770-03i198808-199302

SUPER SILVER METALLI,176

main87910-22770-04i198808-199302

LIGHT BLUE MICA META,8G2

main87910-22770-05i198808-198908

SABLE MICA METALLIC,4K2

main87910-22770-06i198908-199008

DARK BROWN MICA M,4L4

main87910-22770-08i198808-199302

SUPER WHITE,050

main87910-22770-12i199008-199308

RED M M,3J9

main87910-22770-13i198808-199008

GRAY MICA METALLIC,170

main87910-22770-14i199008-199302

BLUE M,869

main87910-22770-15i199008-199302

BEIGE M M,4J1

main87910-22790i198808-199608

REMOTE CONTROL MIRROR

main87910-22800i198808-199302

main87910-22810i198808-199608

main87910-22830i198808-199001

REMOTE CONTROL MIRROR

main87910-22831i199001-199302

REMOTE CONTROL MIRROR

main87910-22860-01i198808-199008

BLACK,202

main87910-22860-02i198808-199008

RED MICA,3H4

main87910-22860-03i198808-199302

SUPER SILVER METALLI,176

main87910-22860-04i198808-199302

LIGHT BLUE MICA META,8G2

main87910-22860-05i198808-198908

SABLE MICA METALLIC,4K2

main87910-22860-06i198908-199008

DARK BROWN MICA M,4L4

main87910-22860-08i198808-199302

SUPER WHITE,050

main87910-22860-12i199008-199302

RED M M,3J9

main87910-22860-13i198808-199008

GRAY MICA METALLIC,170

main87910-22860-14i199008-199302

BLUE M,869

main87910-22860-15i199008-199302

BEIGE M M,4J1

main87910-22870i198808-199008

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-22820-01i198808-199008

BLACK,202

main87940-22820-02i198808-199008

RED MICA,3H4

main87940-22820-03i198808-199302

SUPER SILVER METALLI,176

main87940-22820-04i198808-199302

LIGHT BLUE MICA META,8G2

main87940-22820-05i198808-198908

SABLE MICA METALLIC,4K2

main87940-22820-06i198908-199008

DARK BROWN MICA M,4L4

main87940-22820-08i198808-199302

SUPER WHITE,050

main87940-22820-12i199008-199302

RED M M,3J9

main87940-22820-13i198808-199008

GRAY MICA METALLIC,170

main87940-22820-14i199008-199302

BLUE M,869

main87940-22820-15i199008-199302

BEIGE M M,4J1

main87940-22830-01i198808-199008

BLACK,202

main87940-22830-02i198808-199008

RED MICA,3H4

main87940-22830-03i198808-199302

SUPER SILVER METALLI,176

main87940-22830-04i198808-199302

LIGHT BLUE MICA META,8G2

main87940-22830-05i198808-198908

SABLE MICA METALLIC,4K2

main87940-22830-06i198908-199008

DARK BROWN MICA M,4L4

main87940-22830-08i198808-199302

SUPER WHITE,050

main87940-22830-12i199008-199308

RED M M,3J9

main87940-22830-13i198808-199008

GRAY MICA METALLIC,170

main87940-22830-14i199008-199302

BLUE M,869

main87940-22830-15i199008-199302

BEIGE M M,4J1

main87940-22840i198808-199302

REMOTE CONTROL MIRROR

main87940-22850i198808-199608

REMOTE CONTROL MIRROR

main87940-22860i198808-199302

main87940-22870i198808-199608

main87940-2A030-01i198808-199008

BLACK,202

main87940-2A030-02i198808-199008

RED MICA,3H4

main87940-2A030-03i198808-199302

SUPER SILVER METALLI,176

main87940-2A030-04i198808-199302

LIGHT BLUE MICA META,8G2

main87940-2A030-05i198808-198908

SABLE MICA METALLIC,4K2

main87940-2A030-06i198908-199008

DARK BROWN MICA M,4L4

main87940-2A030-08i198808-199302

SUPER WHITE,050

main87940-2A030-12i199008-199302

RED M M,3J9

main87940-2A030-13i198808-199008

GRAY MICA METALLIC,170

main87940-2A030-14i199008-199302

BLUE M,869

main87940-2A030-15i199008-199302

BEIGE M M,4J1

main87940-2A040i198808-199008

9014950035

main90149-50035

9014950044

main90149-50044

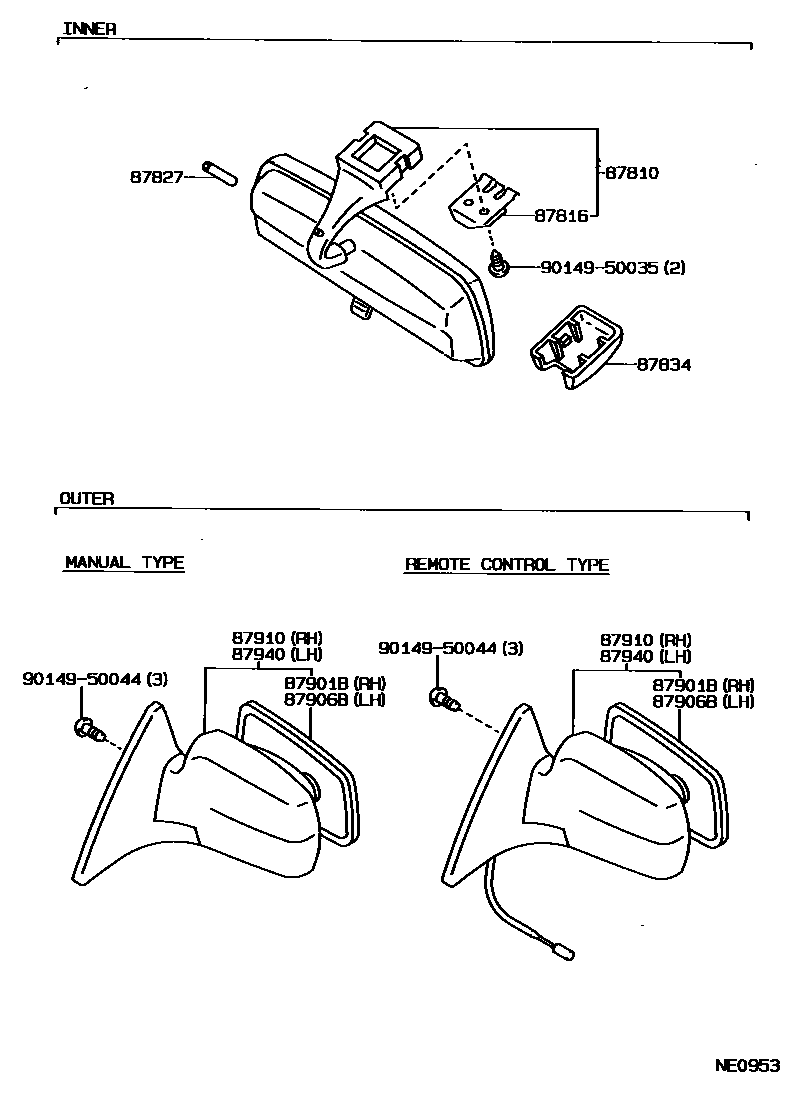

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota CRESSIDA

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota CRESSIDA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
