Toyota CRESSIDA — METER

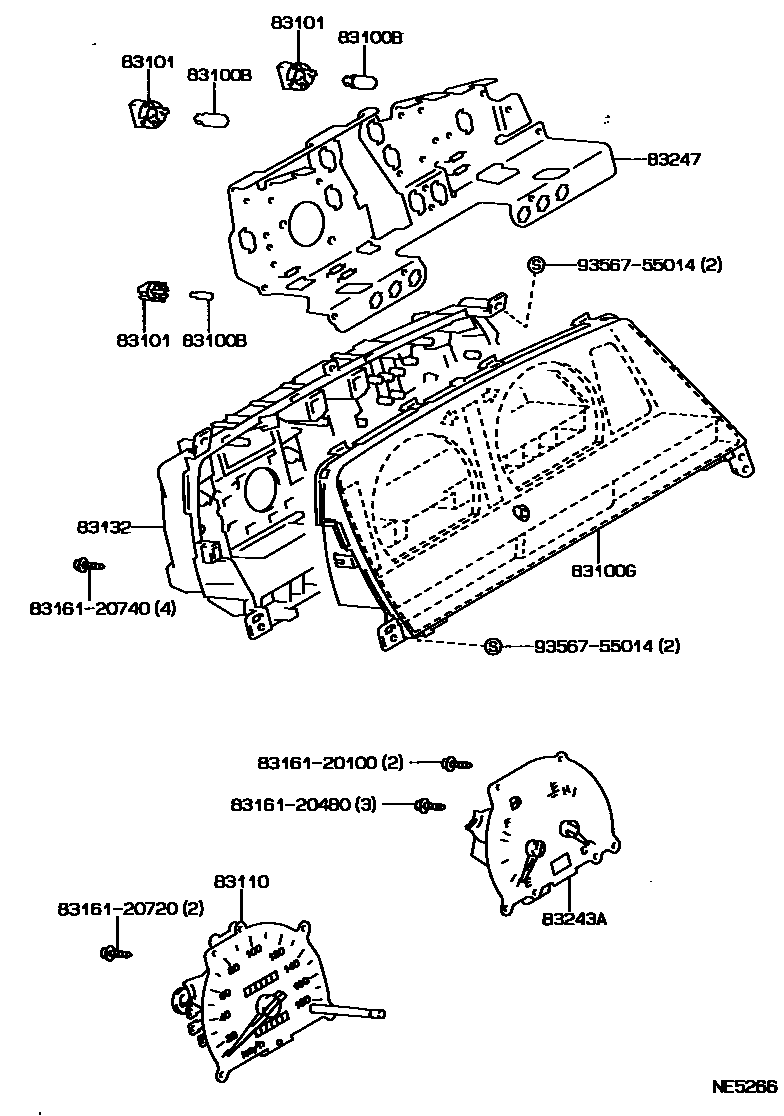

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24030×4i198808-199608
12V3.4W W(GREEN CAP),SOCKET:83101-14030
main83109-30060i199008-199302
12V 2.0W,W/GREEN CAP,W(DIGITAL SPEEDOMETER),SOCKET:83101-30050
main83119-24030×2i198909-199008
12V 1.2W W(SOCKET),W(DIGITAL SPEEDOMETER),TURN
main90981-11018×6i198808-199302
12V 1.2W W/O SOCKET,SOCKET:83101-14040; 12V 1.2W W/O SOCKET,W(DIGITAL SPEEDOMETER),SOCKET:83101-14040
main99132-12034×3i198808-199608
12V 3.4W,SOCKET:83101-14030
83100GGLASS, COMBINATION METER
main83133-22730i198808-199608
W(TACHOMETER)
main83133-22810i198808-199003
W(DIGITAL SPEEDOMETER)
main83133-22890i198808-199003
W(DIGITAL SPEEDOMETER)
main83133-2A010i198808-199608
main83133-2A030i198808-199302
main83133-2A070i199003-199008
W(DIGITAL SPEEDOMETER)
main83133-2A130i199003-199008
W(DIGITAL SPEEDOMETER)
main83133-2A150i199008-199302
W(DIGITAL SPEEDOMETER)
main83134-2A540i198808-199302
W(TACHOMETER)
main83134-2A580i198808-199302
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×3i199008-199608
BULB:12V 3.4W
main83101-14040×6i198808-199302
BULB:12V 1.2W
main83101-20040×8i198808-199302
BULB:12V 3.4W
main83101-30050i199008-199302
W(DIGITAL SPEEDOMETER),BULB:12V 2.0W
83110SPEEDOMETER ASSY
main83110-2A590i198808-198912
main83110-2A591i198912-199008
main83110-2A592i199008-199302
main83110-2A600i198808-198912
W(TACHOMETER)
main83110-2A601i198912-199008
W(TACHOMETER)
main83110-2A602i199008-199302
W(TACHOMETER)
main83110-2A610i198808-198912
MPH/KMH; MPH/KMH & W(TACHOMETER)
main83110-2A611i198912-199008
MPH/KMH; MPH/KMH & W(TACHOMETER)
main83110-2A612i199008-199302
MPH/KMH; MPH/KMH & W(TACHOMETER)
main83110-2A640i198808-199008
W(TACHOMETER)
main83110-2A641i199008-199302
W(TACHOMETER)
main83110-2A650i198808-199008
W(TACHOMETER)
main83110-2A651i199008-199608
W(TACHOMETER)
main83110-2A660i198808-199008
main83110-2A670i198808-199008
MPH/KMH
main83110-2A680i198808-199008
W(TACHOMETER)
main83110-2A681i199008-199302
W(TACHOMETER)
main83110-2A690i198808-199008
MPH/KMH; MPH/KMH & W(TACHOMETER)
main83110-2A691i199008-199302
MPH/KMH; MPH/KMH & W(TACHOMETER)
main83110-2A700i198808-199008
main83110-2A701i199008-199302
main83110-2A710i198808-199008
MPH/KMH
main83110-2A711i199008-199302
MPH/KMH
main83110-2A760i198808-198912
main83110-2A761i198912-199008
main83110-2A762i199008-199302
main83110-2A770i198808-198912
MPH/KMH
main83110-2A771i198912-199008
MPH/KMH
main83110-2A772i199008-199302
MPH/KMH
main83110-2A780i198808-199008
main83110-2A781i199008-199608
main83110-2A790i198808-199008
main83110-2A791i199008-199302
main83110-2A800i198808-199008
MPH/KMH
main83110-2A801i199008-199302
MPH/KMH
main83110-2A890i198808-199008
main83110-2A891i199008-199302
83132CASE, COMBINATION METER
main83132-2A110i198808-199008
W(DIGITAL SPEEDOMETER)
main83132-2A170i198808-199008
W(DIGITAL SPEEDOMETER)
main83132-2A230i198808-199008
W(TACHOMETER)
main83132-2A250i198808-199008
W(TACHOMETER)
main83132-2A270i198808-199008
W(TACHOMETER)
main83132-2A290i198808-199008
main83132-2A310i198808-199008
main83132-2A330i198808-199008
main83132-2A370i198808-199008
main83132-2A400i198808-199008
main83132-2A460i198808-199008
main83132-2A480i198808-199008
W(TACHOMETER)
main83132-2A510i199008-199302
W(DIGITAL SPEEDOMETER)
main83132-2A530i199008-199302
W(TACHOMETER)
main83132-2A550i199008-199608
W(TACHOMETER)
main83132-2A560i198808-199008
main83132-2A570i199008-199302
W(TACHOMETER)
main83132-2A590i199008-199302
main83132-2A610i199008-199608
main83132-2A630i199008-199302
main83132-2A640i199008-199302
W(MPH/KMH SPEEDOMETER)
main83132-2A650i199008-199302
main83132-2A660i199008-199302
main83132-2A700i199008-199302
main83132-2A720i199008-199302
W(TACHOMETER)
main83132-2A800i199008-199302
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-22390i198808-199008
W(TACHOMETER); W(TACHOMETER) OR SINGAPORE SPEC & W(TACHOMETER)
main83243-22410i198808-199008
SINGAPORE SPEC
main83243-22430i198808-199008
main83243-22450i199008-199302
W(TACHOMETER) OR SINGAPORE SPEC & W(TACHOMETER)
main83243-22470i199008-199608
main83243-22490i199008-199302
main83243-2A120i198808-199008
W(TACHOMETER)
main83243-2A160i198808-199008
main83243-2A220i199008-199302
W(TACHOMETER)
main83243-2A260i199008-199302
83247PLATE, METER CIRCUIT
main83247-2A360i198808-199008
main83247-2A380i198808-199008
main83247-2A460i198808-199008
main83247-2A480i198808-199008
W(TACHOMETER)
main83247-2A600i199008-199302
main83247-2A680i199008-199302
main83247-2A690i198808-199008
W(DIGITAL SPEEDOMETER)
main83247-2A700i199008-199302
W(TACHOMETER)
main83247-2A730i198808-199008
W(DIGITAL SPEEDOMETER)
main83247-2A780i199008-199302
main83247-2A790i198808-199302
W(TACHOMETER)
main83247-2A810i198808-199302
main83247-2A830i198808-199302
main83247-2A850i198808-199608
W(TACHOMETER)
main83247-2A870i198808-199302
W(TACHOMETER)
main83247-2A890i198808-199608
main83247-2C010i198808-199302
main83247-2C030i198808-199008
main83247-2C070i198808-199302
main83247-2C150i199008-199302
W(DIGITAL SPEEDOMETER)
8316120100CASE, COMBINATION METER MIRROR, NO.1
main83161-20100
8316120480CASE, COMBINATION METER MIRROR, NO.1
main83161-20480
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
8316120740CASE, COMBINATION METER MIRROR, NO.1
main83161-20740
9356755014
main93567-55014

12 parts on this diagram · 6 diagrams in section

METER for Toyota CRESSIDA

This section contains 42 genuine Toyota parts for the METER system of the Toyota CRESSIDA. Key components include: WIRE, TRANSMISSION, INDICATOR, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB.
