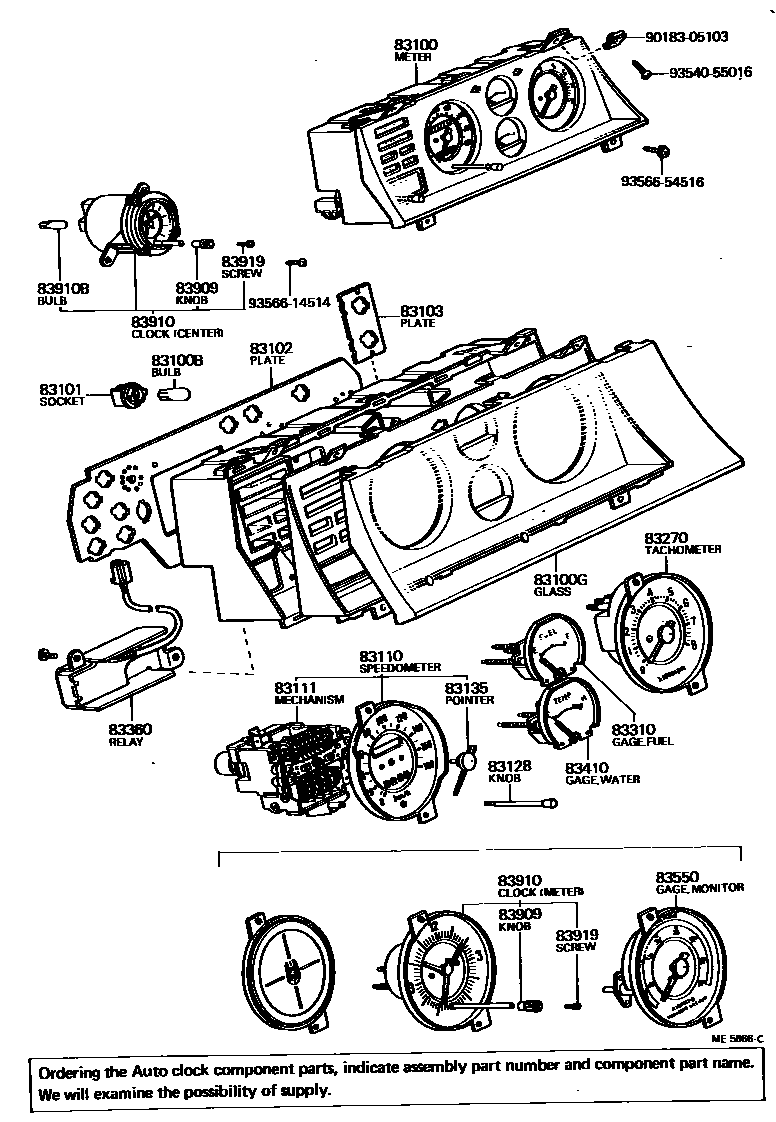

Toyota CRESSIDA — METER
83100METER ASSY, COMBINATION
KM
KM,W/ED MONITOR
MILE
MILE
MILE,W/ED MONITOR
MILE,W/ED MONITOR
KM.,W/ED MONITOR
KM
KM,W/ED MONITOR
MILE
MILE,W/ED MONITOR
KM,W/CLOCK
MILE, W/CLOCK
MILE, W/CLOCK
KM,W/CLOCK
MILE, W/CLOCK
KM.,W/TACHOMETER
MILE,W/TACHOMETER
MILE,W/TACHOMETER
KM.,W/TACHOMETER
MILE,W/TACHOMETER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W
83100GGLASS, COMBINATION METER
W/CLOCK
W/CLOCK
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
MILE
KM
MILE
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83110SPEEDOMETER ASSY
KM
MILE & KM
MILE & KM
KM
KM
MILE
MILE & KM
83111MECHANISM, SPEEDOMETER
MILE & KM,HONG KONG SPEC.
KM
KM
MILE
MILE
83128KNOB, TRIP COUNTER
83135POINTER, SPEEDOMETER
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
KM
MILE
MILE
KM
KM
MILE
MILE
83360RELAY ASSY, FUEL SENDER
MILE
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
MIDDLE EAST COUNTRY
83550GAGE ASSY, ED MONITOR
83909KNOB, CLOCK
FOR CENTER
FOR METER
83910CLOCK ASSY
FOR CENTER
FOR CENTER
FOR METER
DIGITAL MIDDLE EAST COUNTRY
FOR METER
FOR CENTER
83910BBULB, CLOCK INDICATOR
12V 3.4W
83919SCREW, CLOCK
FOR METER
FOR CENTER
9018305103
main90183-05103
9354055016
main93540-55016
9356614514
main93566-14514
9356654516
main93566-54516
23 parts on this diagram · 3 diagrams in section
METER for Toyota CRESSIDA
This section contains 50 genuine Toyota parts for the METER system of the Toyota CRESSIDA. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), SPEEDOMETER DRIVEN GEAR (ATM), METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
