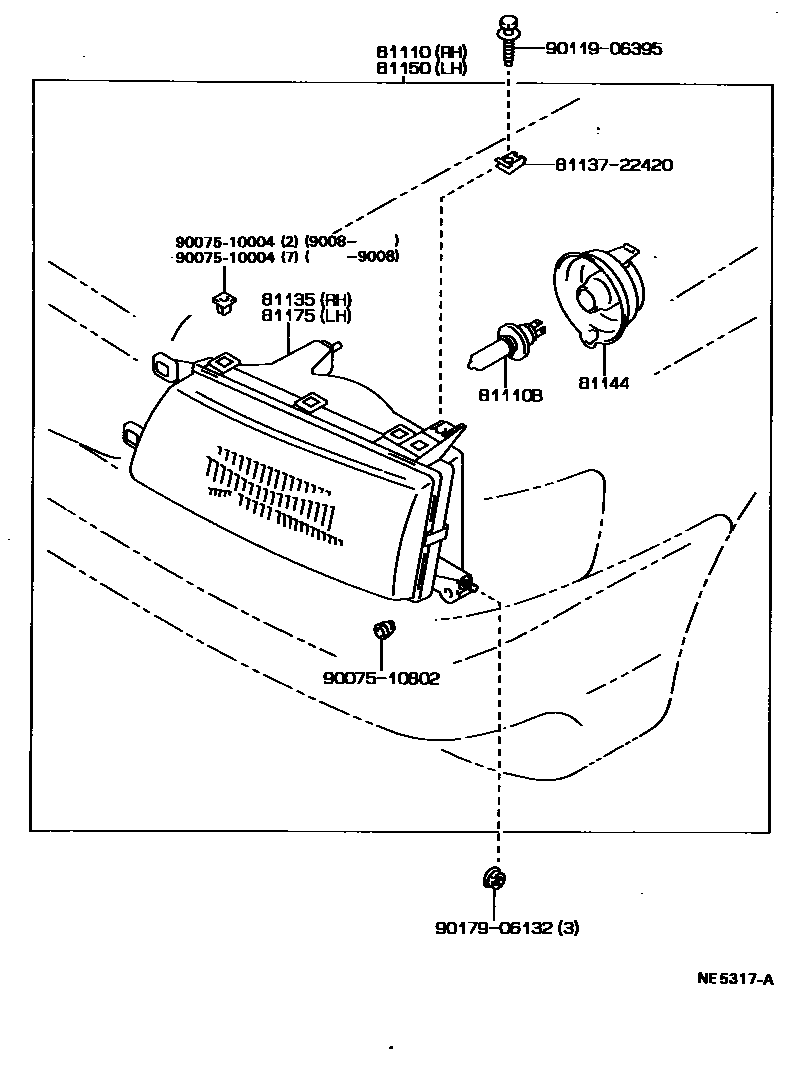

Toyota CRESSIDA — HEADLAMP
81110HEADLAMP ASSY, RH
main81110-22590iRX80..LHD..XL..GEN; RX80..V;RX80..LHD..GL..GEN;GX81,LX80,MX81,RX81..LHD198808-199008
HALOGEN WHITE
HALOGEN YELLOW
HALOGEN YELLOW
LH TRAFFIC
main81110-22620iGX81,LX80,MX81,RX80..LHD..(GL,GLX)..GEN; GX81,MX83,RX80..RHD..(GL,GLX); RX80..LHD..XL..GEN; RX80..RHD..XL198808-199008
HALOGEN WHITE; LH TRAFFIC; LH TRAFFIC & HALOGEN WHITE
LH TRAFFIC
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE
12V 60/55W,*HAL *WH
12V 60/55W,*HAL *YE
12V 60/55W,*HAL *WH
81135UNIT ASSY, HEADLAMP, RH
main81130-22590iRX80..LHD..XL..GEN; RX80..V;RX80..LHD..GL..GEN;GX81,LX80,MX81,RX81..LHD198808-199008
HALOGEN WHITE
HALOGEN YELLOW
LH TRAFFIC
main81130-22620iGX81,LX80,MX81,RX80..LHD..(GL,GLX)..GEN; GX81,MX83,RX80..RHD..(GL,GLX); RX80..LHD..XL..GEN; RX80..RHD..XL198808-199008
HALOGEN WHITE; LH TRAFFIC; LH TRAFFIC & HALOGEN WHITE
LH TRAFFIC
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
main81150-22590iRX80..LHD..XL..GEN; RX80..V;RX80..LHD..GL..GEN;GX81,LX80,MX81,RX81..LHD198808-199008
HALOGEN WHITE
HALOGEN YELLOW
HALOGEN YELLOW
LH TRAFFIC
main81150-22620iGX81,LX80,MX81,RX80..LHD..(GL,GLX)..GEN; GX81,MX83,RX80..RHD..(GL,GLX); RX80..LHD..XL..GEN; RX80..RHD..XL198808-199008
HALOGEN WHITE; LH TRAFFIC; LH TRAFFIC & HALOGEN WHITE
LH TRAFFIC
81175UNIT ASSY, HEADLAMP, LH
main81170-22590iRX80..LHD..XL..GEN; RX80..V;RX80..LHD..GL..GEN;GX81,LX80,MX81,RX81..LHD198808-199008
HALOGEN WHITE
HALOGEN YELLOW
LH TRAFFIC
main81170-22620iGX81,LX80,MX81,RX80..LHD..(GL,GLX)..GEN; GX81,MX83,RX80..RHD..(GL,GLX); RX80..LHD..XL..GEN; RX80..RHD..XL198808-199008
HALOGEN WHITE; LH TRAFFIC; LH TRAFFIC & HALOGEN WHITE
LH TRAFFIC
8113722420PROTECTOR, HEADLAMP, NO.2 RH
main81137-22420
9007510004
main90075-10004
9007510802
main90075-10802
9011906395
main90119-06395
9017906132
main90179-06132
11 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota CRESSIDA
This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota CRESSIDA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1, HEADLAMP ASSY, LH.
