Toyota CRESSIDA — FRONT FENDER APRON & DASH PANEL

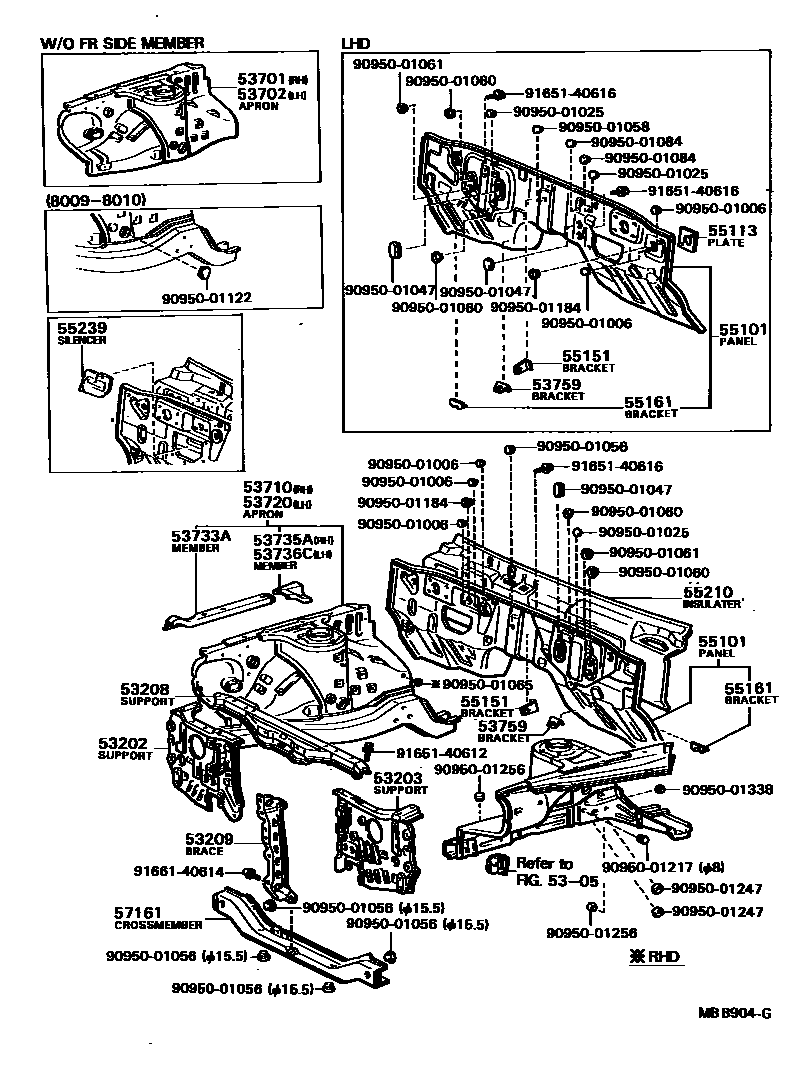

Parts diagram

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-22090i198009-198208

main53202-22100i198009-198208

main53202-22130i198208-198308

main53202-22140i198308-198407

main53202-22150i198308-198407

main53202-22160i198208-198308

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-22110i198009-198208

main53203-22130i198308-198407

main53203-22140i198208-198308

main53203-22150i198308-198407

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

main53205-22020i198009-198208

main53205-22021i198208-198308

main53205-22031i198308-198407

53209BRACE SUB-ASSY, HOOD LOCK

main53217-22060i198009-198208

main53217-22080i198208-198504

main53217-22090i198208-198407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22905i198009-198208

main53701-22907i198009-198208

main53701-22908i198208-198504

main53701-22909i198009-198208

COLD SPEC

main53701-22913i198208-198407

main53701-22916i198208-198504

main53701-22917i198208-198407

main53701-22919i198208-198407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22905i198009-198208

main53702-22909i198009-198208

main53702-22914i198208-198407

main53702-22915i198208-198504

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53710-22091i198208-198407

main53710-22100i198009-198208

W/STEEL BUMPER

main53710-22110i198009-198208

W/URETHANE BUMPER

main53710-22130i198009-198208

W/URETHANE BUMPER

main53710-22131i198208-198407

main53710-22140i198009-198208

W/STEEL BUMPER

main53710-22160i198009-198208

W/STEEL BUMPER

main53710-22170i198107-198208

W/URETHANE BUMPER

main53710-22171i198208-198407

main53710-22180i198009-198208

W/STEEL BUMPER

main53710-22190i198009-198208

W/STEEL BUMPER

main53710-22200i198009-198208

W/STEEL BUMPER,COLD SPEC

main53710-22210i198009-198208

W/URETHANE BUMPER

main53710-22211i198208-198308

W/URETHANE BUMPER

main53710-22220i198009-198208

W/URETHANE BUMPER

main53710-22221i198208-198407

main53710-22230i198009-198208

W/URETHANE BUMPER,COLD SPEC

main53710-22231i198208-198407

main53710-22340i198308-198407

main53710-22370i198308-198407

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53720-22150i198009-198208

W/URETHANE BUMPER

main53720-22151i198208-198504

main53720-22210i198009-198208

W/URETHANE BUMPER

main53720-22211i198208-198308

main53720-22230i198009-198407

W/STEEL BUMPER

main53720-22240i198009-198208

W/URETHANE BUMPER

main53720-22241i198208-198407

main53720-22250i198009-198208

W/STEEL BUMPER

main53720-22380i198208-198308

main53720-22390i198208-198407

main53720-22400i198208-198407

main53720-22420i198308-198407

main53720-22430i198308-198407

53733AMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT

main53733-22040i198009-198504

RH

main53734-22040i198009-198504

LH

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-22030i198009-198504

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-22030i198009-198504

53759BRACKET, FLEXIBLE HOSE MOUNTING, NO.1

main53759-12010i198009-198504

55101PANEL SUB-ASSY, DASH

main55101-22460i198009-198504

main55101-22470i198009-198208

main55101-22471i198208-198407

55113PLATE, CLUTCH PEDAL SUPPORT MOUNTING

main55113-22010i198009-198407

55151BRACKET, FLEXIBLE HOSE MOUNTING, NO.2

main55151-22030i198009-198504

55161BRACKET, HEATER MOUNTING

main55164-22020i198009-198504

55210INSULATOR ASSY, DASH PANEL

main55210-22100i198009-198407

main55210-22130i198009-198504

55239SILENCER, STEERING COLUMN HOLE COVER

main55212-22020i198009-198504

main55212-22030i198009-198208

main55212-22070i198009-198208

main55212-22080i198009-198407

main55212-22090i198009-198407

main55212-22100i198009-198407

57161CROSSMEMBER, FRONT

main57104-22070i198209-198504

main57104-22081i198308-198407

main57104-22090i198209-198407

9095001006

main90950-01006

9095001025

main90950-01025

9095001047

main90950-01047

9095001056

main90950-01056

9095001058

main90950-01058

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001084

main90950-01084

9095001122

main90950-01122

9095001184

main90950-01184

9095001217

main90950-01217

9095001247

main90950-01247

9095001256

main90950-01256

9095001338

main90950-01338

9165140612

main91651-40612

9165140616

main91651-40616

9166140614

main91661-40614

38 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota CRESSIDA

This section contains 38 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CRESSIDA. Key components include: FLOOR SIDE MEMBER, SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER, BRACE SUB-ASSY, HOOD LOCK.
