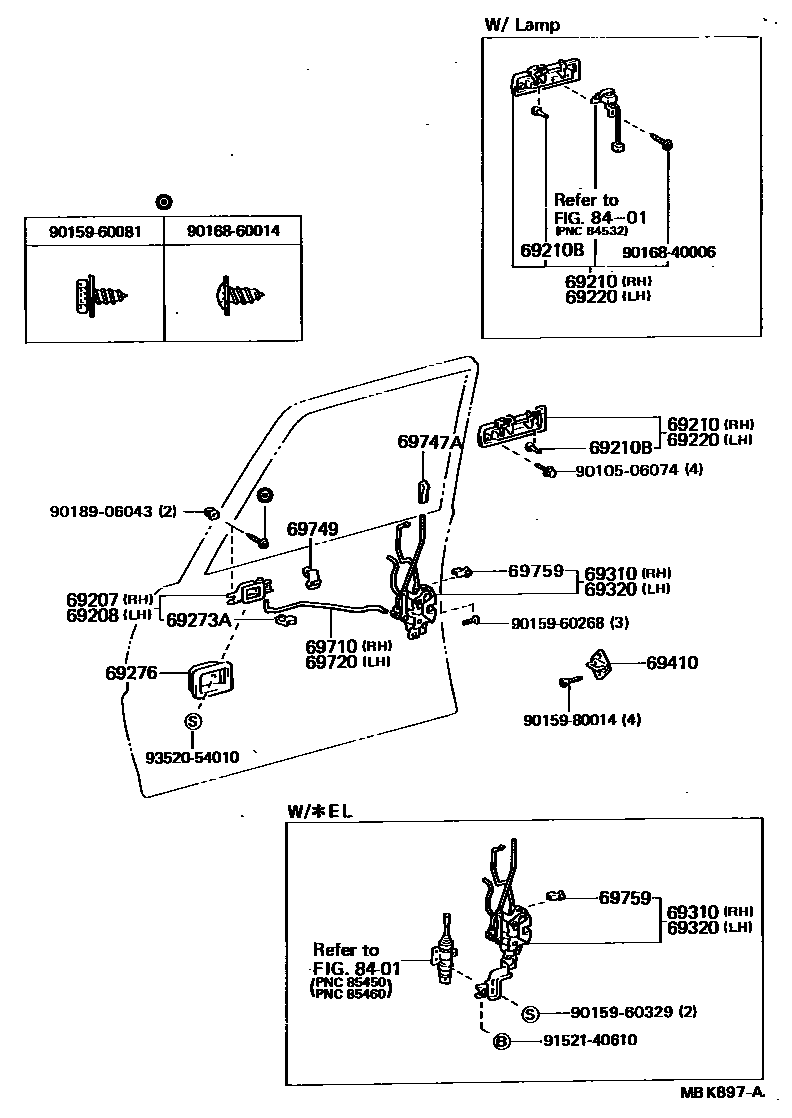

Toyota CRESSIDA — FRONT DOOR LOCK & HANDLE
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MAROON,RED
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
BEIGE,DARK BEIGE
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MAROON,RED
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
BEIGE,DARK BEIGE
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SAUDI ARABIA SPEC
EXCL/SAUDI ARABIA
69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
LH
RH
LH
RH
RH
LH
RH
LH
69276BEZEL, FRONT DOOR INSIDE HANDLE
MAROON,RED
GRAY,COOL GRAY
BLUE,DARK BLUE
BEIGE,BEIGE
MAROON,MAROON
BEIGE,DARK BEIGE
69310LOCK ASSY, FRONT DOOR, RH
W/*EL
W/*EL
SAUDI ARABIA SPEC,W/*EL
W/*EL
EXCL/SAUDI ARABIA
main69310-22250iGX71,LX7#,MX7#..LHD..EUR; GX71,MX73,RX70..(SED,WG)..(GD,GL)..ME; LX70,RX70..LHD..GL..GEN198408-198508
EXCL/SAUDI ARABIA,W/*EL; W/*EL
W/*EL
SAUDI ARABIA SPEC
EXCL/SAUDI ARABIA
69320LOCK ASSY, FRONT DOOR, LH
EXCL/SAUDI ARABIA
W/*EL
W/*EL
main69320-22230iGX71,LX7#,MX7#..LHD..EUR; GX71,MX73,RX70..(SED,WG)..(GD,GL)..ME; LX70,RX70..LHD..GL..GEN198408-198508
EXCL/SAUDI ARABIA,W/*EL; W/*EL
W/*EL
SAUDI ARABIA SPEC,W/*EL
W/*EL
SAUDI ARABIA SPEC
EXCL/SAUDI ARABIA
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
GRAY,COOL GRAY
MAROON,RED/MAROON
BEIGE,BEIGE
MAROON,MAROON
BLUE,DARK BLUE
BEIGE,DARK BEIGE
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH
RH
8401SWITCH & RELAY & COMPUTER
9010506074
main90105-06074
9015960081
main90159-60081
9015960268
main90159-60268
9015960329
main90159-60329
9015980014
main90159-80014
9016840006
main90168-40006
9016860014
main90168-60014
9018906043
main90189-06043
9152140610
main91521-40610
9352054010
main93520-54010
26 parts on this diagram · 2 diagrams in section
FRONT DOOR LOCK & HANDLE for Toyota CRESSIDA
This section contains 28 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CRESSIDA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
