Toyota CRESSIDA — FRONT CLEARANCE LAMP

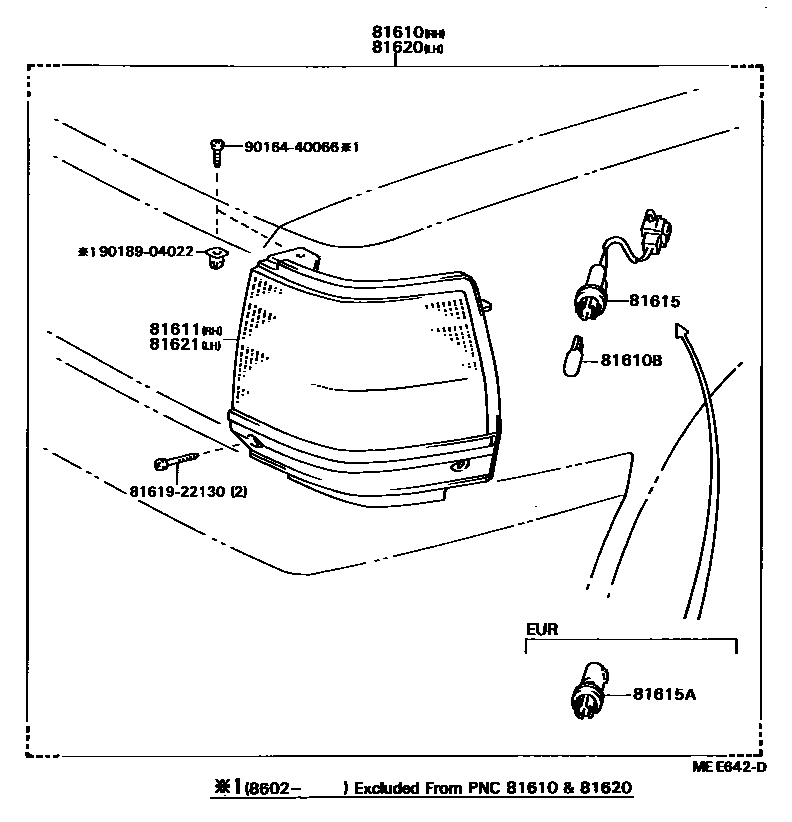

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-22130i198602-198608

main81610-22141i198608-198808

main81610-22142i198608-198808

main81610-22160i198602-198608

main81610-22161i198608-198808

main81610-22170i198508-198608

main81610-29415i198408-198508

main81610-29425i198408-198602

main81610-29435i198408-198508

main81610-29455i198504-198602

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12010×4i198608-198808

12V 5W,12V 5W

main99132-12050×2i198408-198608

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-22120i198408-198508

main81611-22130i198408-198508

main81611-22141i198508-198608

main81611-22142i198608-198808

main81611-22160i198504-198608

main81611-22161i198608-198808

main81611-22170i198508-198608

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-22120×2i198408-198508

main81615-22140×2i198608-198808

main81615-22142×2i198608-198808

main81615-22160×2i198504-198608

main81615-22170×2i198508-198608

81615ASOCKET PLUG, CLEARANCE LAMP

main81735-12180×2i198408-198608

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-22130i198602-198608

main81620-22141i198608-198808

main81620-22142i198608-198808

main81620-22160i198602-198608

main81620-22161i198608-198808

main81620-22170i198508-198608

main81620-29405i198408-198508

main81620-29415i198408-198602

main81620-29425i198408-198508

main81620-29445i198504-198602

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-22120i198408-198508

main81621-22130i198508-198608

main81621-22141i198508-198608

main81621-22142i198608-198808

main81621-22160i198504-198608

main81621-22161i198608-198808

main81621-22170i198508-198608

8161922130

main81619-22130

9016440066

main90164-40066

9018904022

main90189-04022

10 parts on this diagram · 6 diagrams in section

FRONT CLEARANCE LAMP for Toyota CRESSIDA

This section contains 19 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CRESSIDA. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, SOCKET PLUG, CLEARANCE LAMP.
