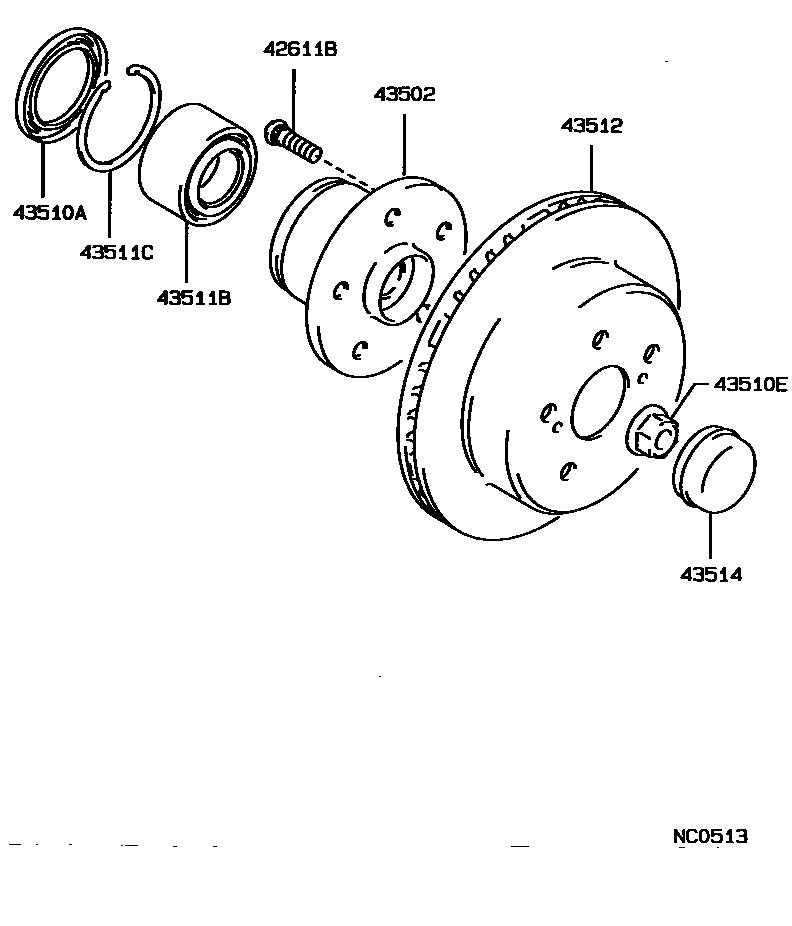

Toyota CRESSIDA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×10i198808-199008

43502HUB SUB-ASSY, FRONT AXLE

main43502-22060×2i198808-199008

main43503-22010×2i198908-199008

W(*66)

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48013×2i198808-199008

43510ENUT (FOR STEERING KNUCKLE)

main90179-22017×2i198808-199008

43511BBEARING (FOR FRONT AXLE HUB)

main90369-32003×2i198808-199008

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001×2i198808-199008

OD=77

43512DISC, FRONT

main43512-22120×2i198808-199008

main43512-22160×2i199008-199608

main43512-22170×2i199008-199302

W(ALUMINUM WHEEL)

main43512-22180×2i199008-199302

W(ALUMINUM WHEEL)

43514CAP, FRONT HUB GREASE

main43514-22030×2i198808-199008

main43514-43010i199601-199608

8 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CRESSIDA

This section contains 8 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CRESSIDA. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), NUT (FOR STEERING KNUCKLE), BEARING (FOR FRONT AXLE HUB).
