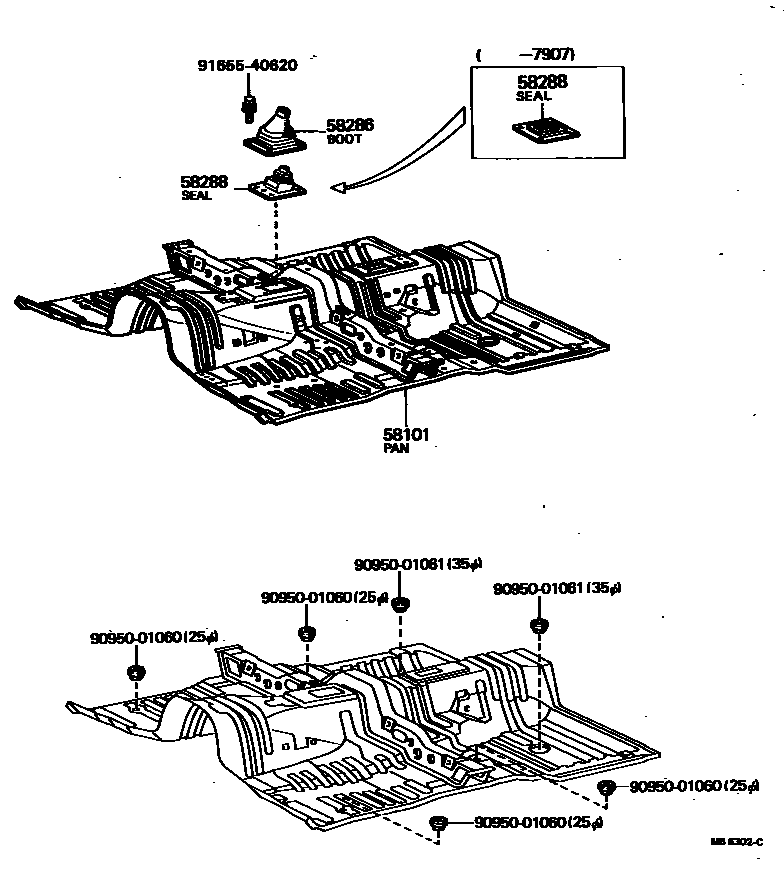

Toyota CRESSIDA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

58101PAN SUB-ASSY, FRONT FLOOR

main58101-22181iRX3#..3H197808-197908

main58101-22182iRX3#..3H197908-197911

sub58101-22183

sub46410-22131

sub46410-22141

main58101-22201iRX3#..3FC,4F,5F197808-197908

main58101-22202iRX3#..3FC,4F,5F197908-197911

sub58101-22203

sub46361-22050

main58101-22221iMX3#197808-197908

main58101-22222iMX3#197908-197911

sub58101-22223

sub46361-22050

main58101-91600iRX3#..3H197612-197808

sub58101-22280

sub46410-22131

sub46410-22141

main58101-91601iRX3#..3FC,4F,5F197612-197808

sub58101-22290

sub46361-22050

sub72130-22080

sub72140-22080

main58101-91603iMX3#197612-197808

sub58101-22310

sub46361-22050

sub72130-22080

sub72140-22080

main58111-22042iRX3#..3H197911-198008

main58111-22053iMX3#,RX3#,TX30..3FC,4F,5F197911-198008

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22030iMX3#,RX3#..(4F,5F)..DLX197612-197712

main58280-22040iRX3#..4F..STD197612-197907

main58280-22041iRX3#,TX30..4F..STD197907-198008

main58280-22050iMX3#,RX3#..(4F,5F)..(DLX,GL)197712-197907

main58280-22051iMX3#,RX3#..(4F,5F)..(DLX,GL)197907-198008

58288SEAL, SHIFT LEVER BOOT

main58288-22020iMX3#,RX3#..4F,5F197612-197907

main58288-22021iMX3#,RX3#,TX30..4F,5F197907-198008

9095001060

main90950-01060

9095001061

main90950-01061

9165540620

main91655-40620

6 parts on this diagram · 5 diagrams in section
