Toyota CRESSIDA — DOOR MOTOR & DOOR SOLENOID

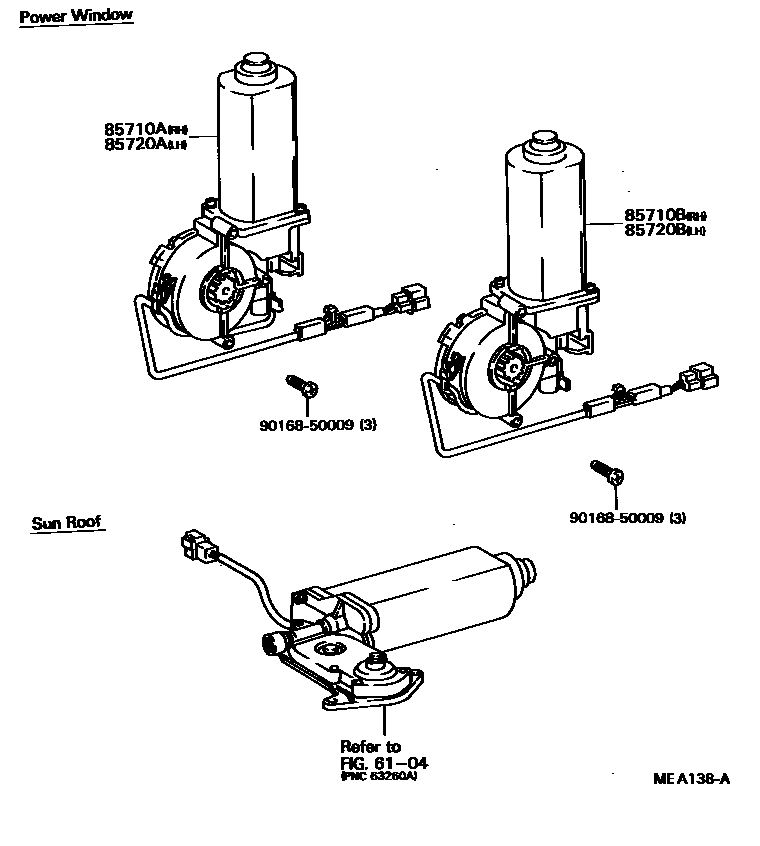

Parts diagram

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85720-22060i198009-198011

main85720-22061i198011-198504

main85720-22070i198009-198011

main85720-22071i198011-198208

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85720-22060i198009-198011

main85720-22061i198011-198504

main85720-22070i198009-198011

main85720-22071i198011-198208

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85710-22090i198009-198011

main85710-22091i198011-198208

main85710-22100i198009-198011

main85710-22101i198208-198407

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-22090i198009-198011

main85710-22091i198011-198504

main85710-22100i198009-198011

main85710-22101i198011-198208

9016850009

main90168-50009

6 parts on this diagram · 1 diagram in section

DOOR MOTOR & DOOR SOLENOID for Toyota CRESSIDA

This section contains 6 genuine Toyota parts for the DOOR MOTOR & DOOR SOLENOID system of the Toyota CRESSIDA. Key components include: ROOF PANEL & BACK WINDOW GLASS, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH, MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH, MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH.
