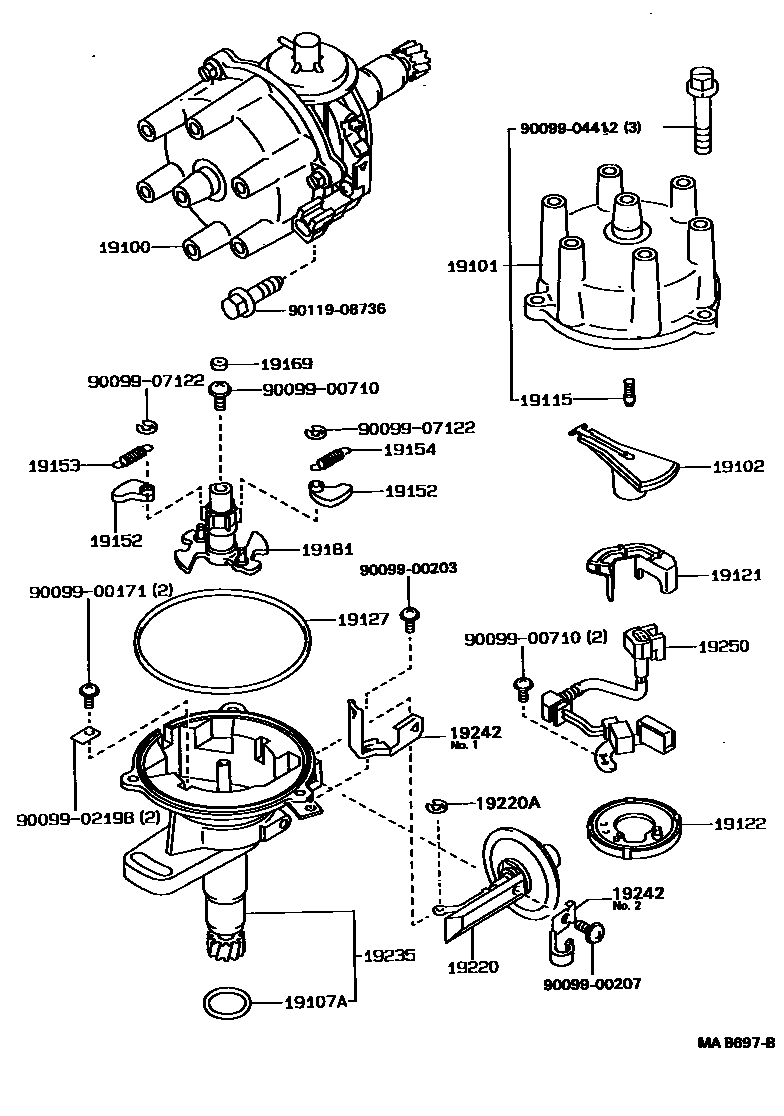

Toyota CRESSIDA — DISTRIBUTOR
19100DISTRIBUTOR ASSY
SINGAPORE SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
19152WEIGHT, GOVERNOR
19153SPRING, GOVERNOR, A
SINGAPORE SPEC
19154SPRING, GOVERNOR, B
SINGAPORE SPEC
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
SINGAPORE SPEC
SINGAPORE SPEC
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
SINGAPORE SPEC
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
NO.1
NO.2
19250GENERATOR ASSY, SIGNAL
9009900171
main90099-00171
9009900203
main90099-00203
9009900207
main90099-00207
9009900710
main90099-00710
9009902198
main90099-02198
9009904412
main90099-04412
9009907122
main90099-07122
9011908736
main90119-08736
26 parts on this diagram · 4 diagrams in section
DISTRIBUTOR for Toyota CRESSIDA
This section contains 44 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CRESSIDA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY, RING, O, DISTRIBUTOR HOUSING.
