Toyota CRESSIDA — DISTRIBUTOR

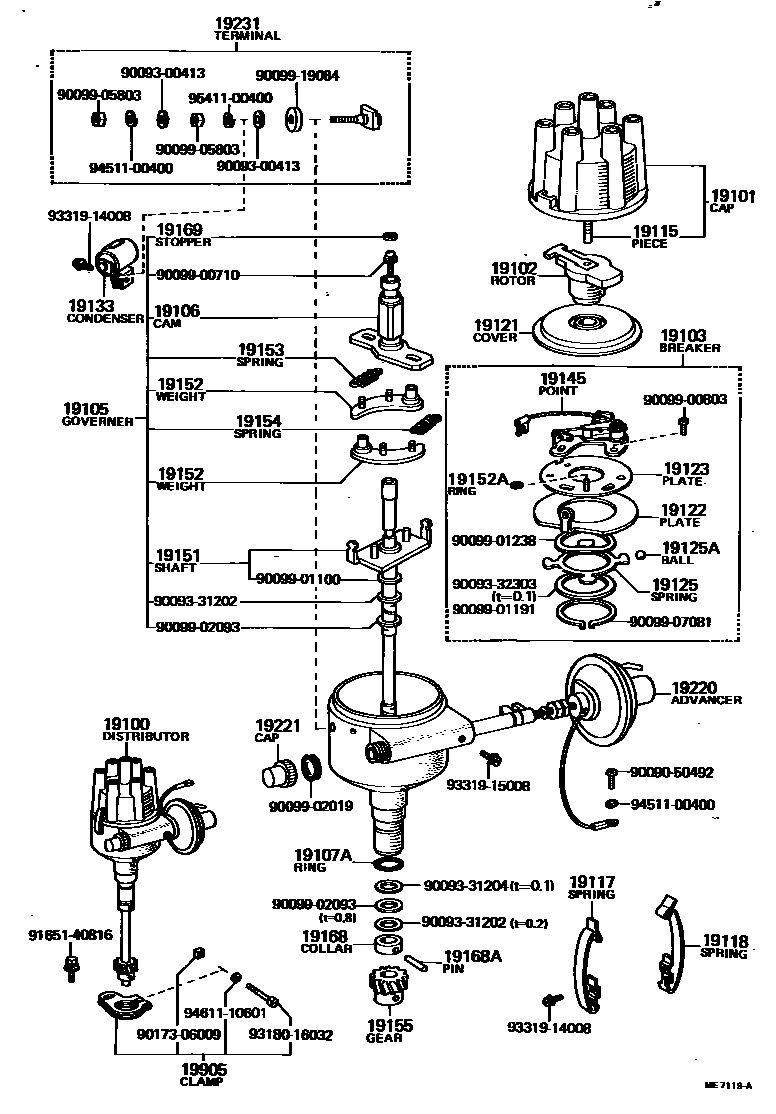

Parts diagram

19100DISTRIBUTOR ASSY

main19100-26210i198001-198008

main19100-33013i197612-197706

main19100-33014i197706-197908

main19100-34210i197612-197706

main19100-34211i197706-197907

main19100-34250i197908-198008

main19100-34260i197908-198008

HONG KONG SPEC.

main19100-34270i197908-198008

main19100-34310i197907-198008

main19100-41120i197612-197803

main19100-45200i197803-197908

main19100-45210i197908-198008

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-25070i197907-197908

main19101-33012i198001-198008

main19101-41010i197908-198001

main19101-41140i197908-198008

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-26150i197612-198008

main19102-33012i197612-198008

main19102-41010i197908-198001

main19102-45060i197908-198008

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-26210i198001-198008

main19103-33013i197612-198008

main19103-41030i197908-198001

19105GOVERNOR SUB-ASSY

main19105-26190i198001-198008

main19105-33013i197908-198008

main19105-34043i197908-198008

main19105-34310i197907-197908

main19105-41120i197612-197803

main19105-45200i197803-197908

main19105-45210i197908-198008

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-25010i197907-198008

main19106-33011i197612-197907

main19106-33013i197908-198008

main19106-38010i197908-198008

main19106-38011i198001-198008

main19106-41010i197908-198001

main19106-45060i197908-198008

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14018i197612-198008

main90099-14020i197612-198008

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i197612-198008

19117SPRING, DISTRIBUTOR CAP, A

main19117-33011i197612-197907

main19117-41010i197612-197908

19118SPRING, DISTRIBUTOR CAP, B

main19118-33011i197907-197908

main19118-41010i197612-197908

19121COVER, DUST PROOF

main19121-30030i197612-197908

main19121-33011i197612-197907

main19121-38030i197908-198008

main19121-41140i197908-198008

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-26210i198001-198008

main19122-33013i197908-198008

main19122-39041i197612-197908

19123PLATE, DISTRIBUTOR BREAKER

main19123-41011i197612-197908

19125SPRING(FOR DISTRIBUTOR STATIONARY PLATE)

main19125-30010i197612-197908

19125ABALL, DISTRIBUTOR STATIONARY PLATE

main90099-12003×4i197612-197908

19133CONDENSER, DISTRIBUTOR

main90099-52057i197612-197908

main90099-52059i197907-197908

main90099-52068i197907-197908

main90099-52071i197908-198008

19145POINT, DISTRIBUTOR

main19145-26060i197612-198008

19151SHAFT, GOVERNOR

main19151-25011i198001-198008

main19151-33011i197612-198008

main19151-41030i197908-198001

main19151-41200i197908-198008

19152WEIGHT, GOVERNOR

main19152-32010×2i197612-197803

main19152-45060×2i197612-198008

main19152-87104×2i197803-197908

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07011×2i198001-198008

main90099-07104i197612-197908

main90099-07109i197908-198008

19153SPRING, GOVERNOR, A

main19153-23020i197908-198001

main19153-26190i198001-198008

main19153-33013i197907-197908

main19153-34043i197908-198008

main19153-34310i197907-198008

main19153-45210i197908-198008

19154SPRING, GOVERNOR, B

main19154-26190i198001-198008

main19154-33013i197908-198008

main19154-34043i197908-198008

main19154-34310i197907-198008

main19154-41120i197707-198001

main19154-45200i197803-197908

main19154-45210i197908-198008

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-25011i198001-198008

main19195-33011i197612-198008

main19195-41010i197612-197908

main19195-41130i197908-198008

19168COLLAR, DISTRIBUTOR

main19168-41010i197612-197908

19168APIN, DISTRIBUTOR COLLAR STOPPER

main90099-08053i197612-197908

19169STOPPER, CAM GREASE

main19169-32010i197612-198008

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-26220i198001-198008

main19220-34200i198001-198008

main19220-34210i197612-197907

main19220-34230i197908-198001

main19220-34240i197908-198001

main19220-34310i197907-198008

main19220-41120i197612-197803

main19220-45200i197803-197908

main19220-45210i197908-198008

19221CAP, ADJUSTER, DISTRIBUTOR

main19221-30030i197908-198008

19231TERMINAL, DISTRIBUTOR

main19132-34210i197612-197706

main19132-36020i197907-197908

main19231-24140i197908-198008

main19231-33011i197612-197706

main19231-38011i197908-198008

main19231-45020i197908-198001

19905CLAMP SUB-ASSY, DISTRIBUTOR

main19905-41010i197612-197908

main19955-33010i197612-198008

main19955-45010i197908-198008

9009050492

main90090-50492

9009300413

main90093-00413

9009331202

main90093-31202

9009331204

main90093-31204

9009332303

main90093-32303

9009900710

main90099-00710

9009900803

main90099-00803

9009901100

main90099-01100

9009901191

main90099-01191

9009901238

main90099-01238

9009902019

main90099-02019

9009902093

main90099-02093

9009905803

main90099-05803

9009907081

main90099-07081

9009919084

main90099-19084

9017306009

main90173-06009

9165140816

main91651-40816

9318016032

main93180-16032

9331914008

main93319-14008

9331915008

main93319-15008

9451100400

main94511-00400

9461110601

main94611-10601

9541100400

main95411-00400

53 parts on this diagram · 7 diagrams in section

DISTRIBUTOR for Toyota CRESSIDA

This section contains 73 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CRESSIDA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR, GOVERNOR SUB-ASSY.
