Toyota CRESSIDA — COWL VENTILATOR

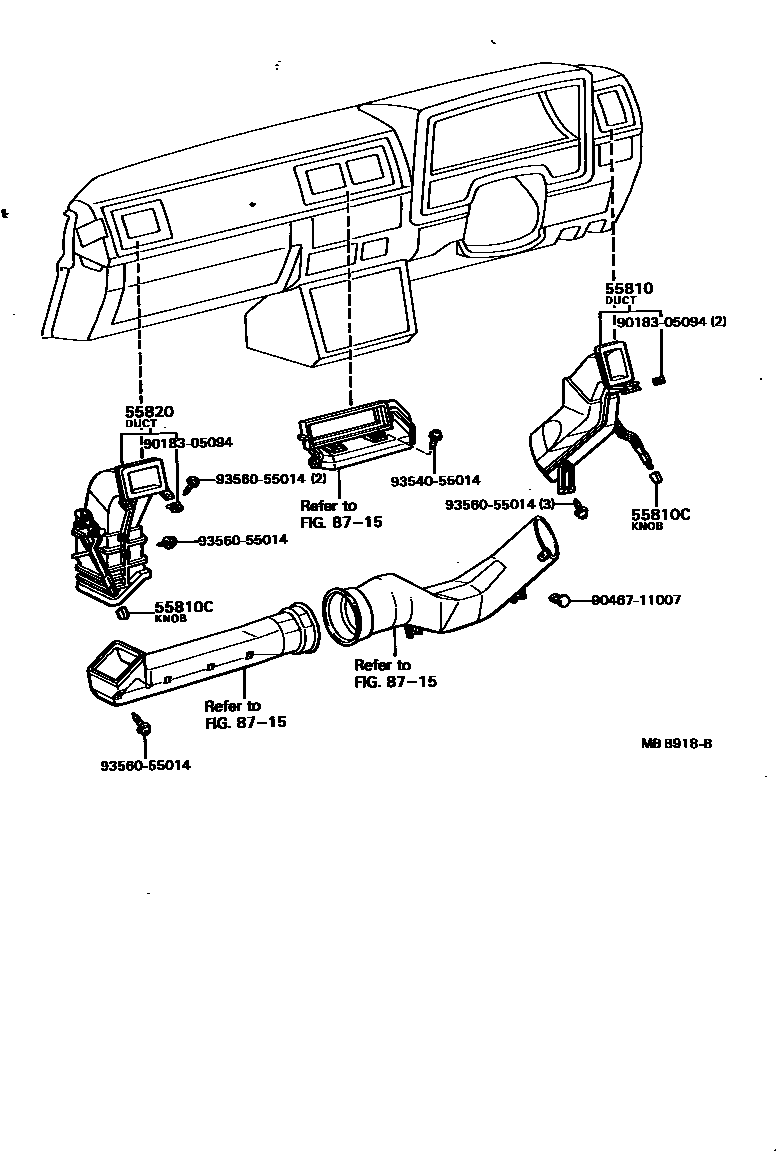

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55084-22020i198009-198504

main55087-22050i198009-198407

55810CKNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)

main55804-22020×2i198009-198504

55820DUCT ASSY, SIDE VENTILATOR, LH

main55084-22030i198009-198407

main55087-22040i198009-198504

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305094

main90183-05094

9046711007

main90467-11007

9354055014

main93540-55014

9356055014

main93560-55014

8 parts on this diagram · 2 diagrams in section

COWL VENTILATOR for Toyota CRESSIDA

This section contains 9 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CRESSIDA. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT), DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
