Toyota CRESSIDA — COWL VENTILATOR

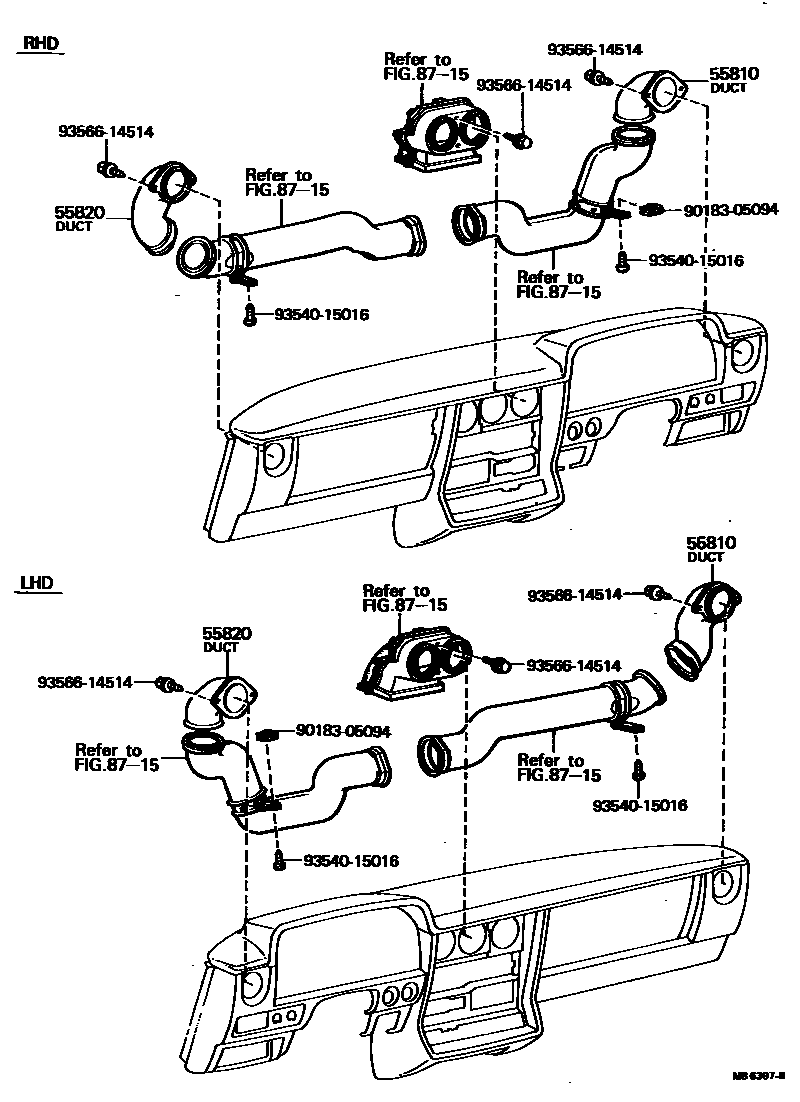

Parts diagram

55810DUCT ASSY, SIDE VENTILATOR, RH

main55843-22010i197612-198008

main55845-22040i197612-198008

55820DUCT ASSY, SIDE VENTILATOR, LH

main55843-22010i197612-198008

main55845-22030i197612-198008

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305094

main90183-05094

9354015016

main93540-15016

9356614514

main93566-14514

6 parts on this diagram · 1 diagram in section

COWL VENTILATOR for Toyota CRESSIDA

This section contains 6 genuine Toyota parts for the COWL VENTILATOR system of the Toyota CRESSIDA. Key components include: DUCT ASSY, SIDE VENTILATOR, RH, DUCT ASSY, SIDE VENTILATOR, LH, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
