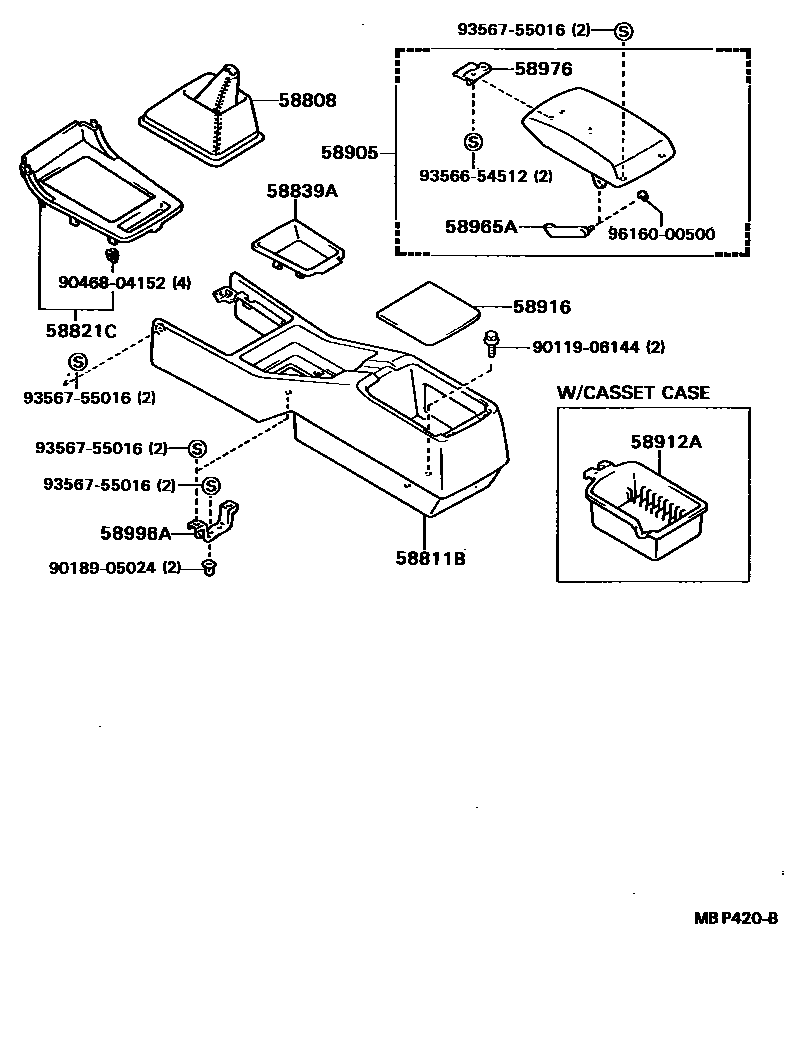

Toyota CRESSIDA — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22090-02iGX81,MX81..5F..(GD,GL,GLX)198808-199008

NEW MAROON,TRIM3#

main58808-22090-03iGX81,MX81..5F199008-199302

MEDIUM GRAY,TRIM1#

main58808-22090-04iGX81,MX81..5F..(GD,GL,GLX)198808-199008

DARK BLUE,TRIM8#

main58808-22090-06iGX81,MX81..5F199008-199302

SABLE,TRIM4#

main58808-22100-02iLX80,RX8#..5F198808-199608

NEW MAROON,TRIM3#

main58808-22100-03iLX80,RX8#..5F199008-199302

MEDIUM GRAY,TRIM1#

main58808-22100-04iLX80,RX8#..5F198808-199008

DARK BLUE,TRIM8#

main58808-22100-06iLX80,RX8#..5F198808-199302

SABLE,TRIM4#

58811BBOX, CONSOLE

main58801-22210-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main58801-22210-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main58801-22210-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main58801-22210-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

58821CPANEL, CONSOLE, UPPER

main58821-22130iRX80..RHD..5F198808-199302

main58821-22140iLX80,RX8#..LHD..5F198808-199608

main58821-22150iGX81,MX83..RHD;RX80..RHD..4FC198808-199302

main58821-22160iGX81,MX81..LHD;LX80,RX8#..LHD..4FC198808-199608

58839ACOVER, CONSOLE BOX HOLE

main58839-22020-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main58839-22020-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main58839-22020-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main58839-22020-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22150-02iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

NEW MAROON,TRIM3#

main58905-22150-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main58905-22150-04iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

DARK BLUE,TRIM8#

main58905-22150-06iGX81,LX80,MX8#,RX8#..GD,GL,GLX198808-199008

SABLE,TRIM4#

main58905-22200-02iMX81,RX8#..XL198808-199008

NEW MAROON,TRIM3#

main58905-22200-04iMX81,RX8#..XL198808-199008

DARK BLUE,TRIM8#

main58905-22200-06iMX81,RX8#..XL198808-199008

SABLE,TRIM4#

main58905-22230-02iMX81..GD199008-199302

W(SPORTS PACKAGE),NEW MAROON,TRIM3#

main58905-22230-03iMX81..GD199008-199302

W(SPORTS PACKAGE),MEDIUM GRAY,TRIM1#

main58905-22230-06iMX81..GD199008-199302

W(SPORTS PACKAGE),SABLE,TRIM4#

58912ABOX, REAR CONSOLE

main58912-22070-02iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

NEW MAROON,TRIM3#

main58912-22070-03iGX81,LX80,MX81,RX8#..GD,GL,GLX199008-199302

MEDIUM GRAY,TRIM1#

main58912-22070-04iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199008

DARK BLUE,TRIM8#

main58912-22070-06iGX81,LX80,MX81,RX8#..GD,GL,GLX198808-199302

SABLE,TRIM4#

58916MAT, BOX BOTTOM

main58916-22030-02iGX81,LX80,MX8#,RX8#198808-199608

NEW MAROON,TRIM3#

main58916-22030-03iGX81,LX80,MX8#,RX8#199008-199302

MEDIUM GRAY,TRIM1#

main58916-22030-04iGX81,LX80,MX8#,RX8#198808-199008

DARK BLUE,TRIM8#

main58916-22030-06iGX81,LX80,MX8#,RX8#198808-199302

SABLE,TRIM4#

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-22020iGX81,LX80,MX8#,RX8#198808-199608

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iGX81,LX80,MX8#,RX8#198808-199608

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-22030iGX81,LX80,MX8#,RX8#198808-199608

9011906144

main90119-06144

9018905024

main90189-05024

9046804152

main90468-04152

9356654512

main93566-54512

9356755016

main93567-55016

9616000500

main96160-00500

16 parts on this diagram · 1 diagram in section
