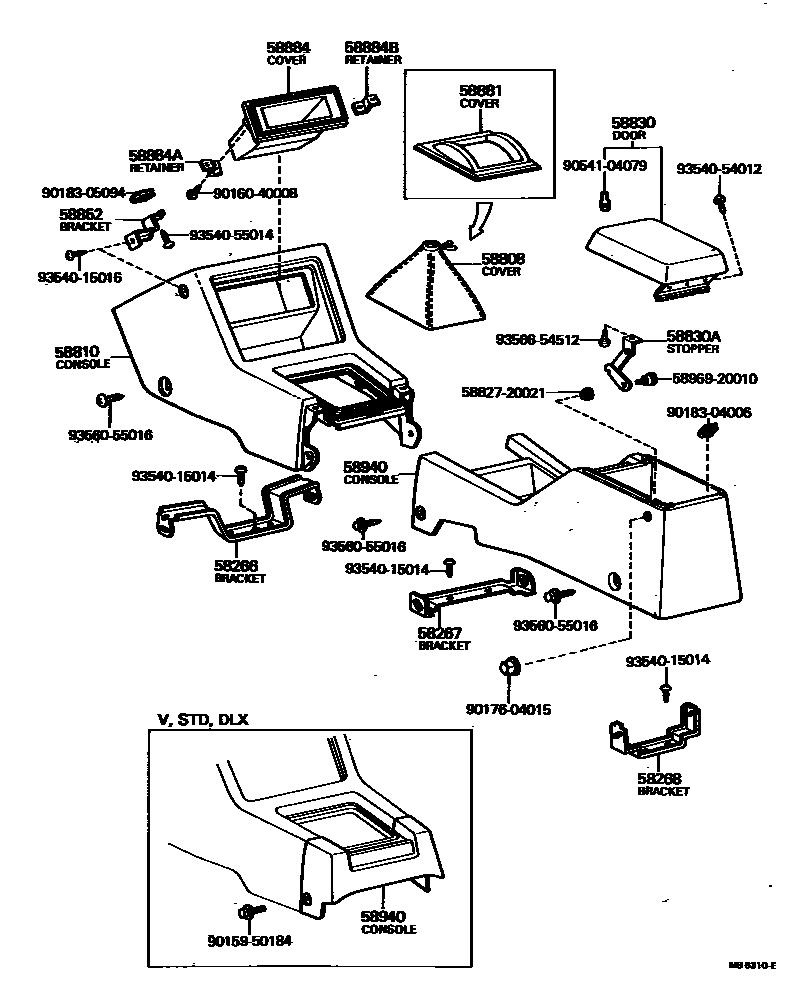

Toyota CRESSIDA — CONSOLE BOX & BRACKET

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58851-22040iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58852-22040iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58853-22020iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197612-198008

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22030iMX3#,RX3#..(4F,5F)..(DLX,GL)197612-198008

58810CONSOLE ASSY

main58811-22090-01iMX3#,RX3#..(4F,5F)..DLX197612-197808

BLACK,BLACK,TRIM2#

main58811-22090-03iMX3#,RX3#..(4F,5F)..DLX197612-197808

GRAY,GRAY,TRIM1#

main58811-22090-05iMX3#,RX3#..(4F,5F)..DLX197612-197808

BEIGE,BEIGE,TRIM4#

main58811-22100-01iMX3#,RX3#..3FC197612-197808

BLACK,BLACK,TRIM2#

main58811-22100-02iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58811-22100-03iMX3#,RX3#..3FC197612-197808

GRAY,GRAY,TRIM1#

main58811-22100-05iMX3#,RX3#..3FC197612-197808

BEIGE,BEIGE,TRIM4#

main58811-22100-11iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

BLACK,BLACK,TRIM2#

main58811-22100-15iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

BEIGE,BEIGE,TRIM4#

58830DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58804-22041-01iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

BLACK,BLACK,TRIM2#

main58804-22041-02iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58804-22041-03iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main58804-22041-05iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

BEIGE,BEIGE,TRIM4#

58830ASTOPPER,CONSOLE COMPARTMENT DOOR

main58904-22020iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58859-22020iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58881COVER, SHIFTING HOLE

main58881-22040-03iMX3#,RX3#..3FC197612-197808

GRAY M.,GRAY,TRIM1#,2#

main58881-22040-13iMX3#,RX3#..3FC197612-197808

SILVER M.,GRAY,TRIM4#

main58881-22040-23iMX3#,RX3#,TX30..3FC197808-198008

SILVER,GRAY

58884COVER, STEREO OPENING

main55462-20070iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

sub55462-20071

58884ARETAINER, STEREO OPENING, NO.1

main55475-20040iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58884BRETAINER, STEREO OPENING, NO.2

main55394-20010iRX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197612-198008

58940CONSOLE ASSY, REAR

main58905-22010-01iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197612-197808

BLACK,BLACK,TRIM2#

main58905-22010-02iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58905-22010-03iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main58905-22010-05iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197612-197808

BEIGE,BEIGE,TRIM4#

main58905-22010-11iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

BLACK,BLACK,TRIM2#

main58905-22010-15iMX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)197808-198008

BEIGE,BEIGE,TRIM4#

main58951-22010-01iRX30,TX30..3FC..STD197707-198008

BLACK,BLACK,TRIM2#

main58951-22010-02iRX30,TX30..3FC..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58951-22010-03iRX30..3FC..STD197707-197808

GRAY,GRAY,TRIM1#

main58951-22010-05iRX30,TX30..3FC..STD197707-198008

BEIGE,BEIGE,TRIM4#

5882720021STOPPER, FUEL INLET COVER, LOWER

main58827-20021

5896920010PROTECTOR, SAFETY LATCH HAND

main58969-20010

9015950184

main90159-50184

9016040008

main90160-40008

9017604015

main90176-04015

9018304006

main90183-04006

9018305094

main90183-05094

9054104079

main90541-04079

9354015014

main93540-15014

9354015016

main93540-15016

9354054012

main93540-54012

9354055014

main93540-55014

9356055016

main93560-55016

9356654512

main93566-54512

27 parts on this diagram · 1 diagram in section
