Toyota CRESSIDA — ARMREST & VISOR

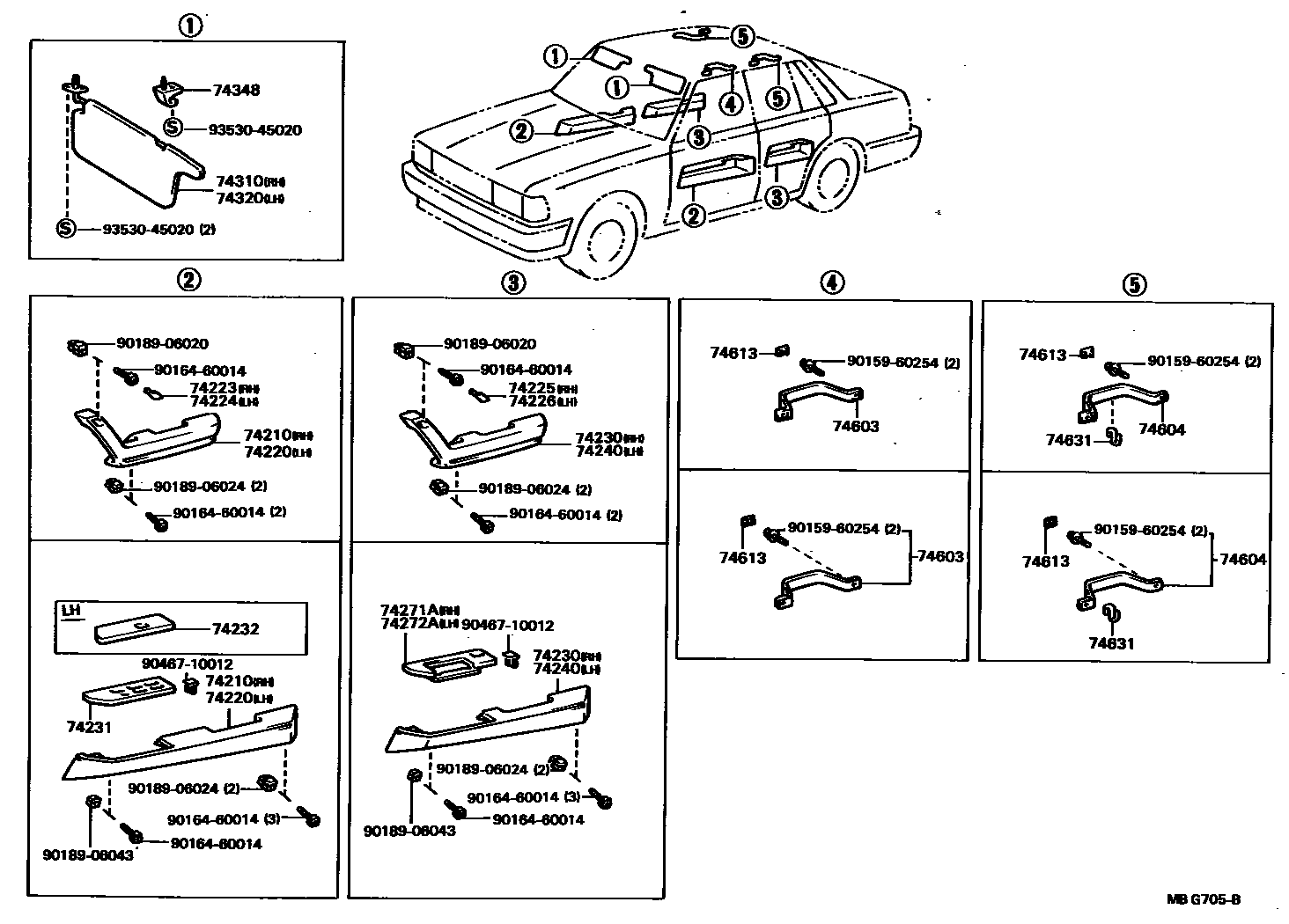

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-22070-03i198705-198808
GRAY,COOL GRAY
main74210-22070-04i198608-198808
BLUE,BLUE
main74210-22070-05i198408-198608
BEIGE,BEIGE
main74210-22070-12i198608-198808
MAROON,MAROON
main74210-22070-15i198612-198808
BEIGE,DARK BEIGE
main74210-22100-02i198408-198808
W/*PW,MAROON,MAROON
main74210-22100-03i198408-198608
W/*PW,GRAY,COOL GRAY
main74210-22100-04i198608-198808
W/*PW,BLUE,DARK BLUE
main74210-22100-05i198408-198608
W/*PW,BEIGE,BEIGE
main74210-22100-15i198608-198808
W/*PW,BEIGE,DARK BEIGE
main74210-22110-02i198408-198808
MAROON,MAROON
main74210-22110-03i198408-198608
GRAY,COOL GRAY
main74210-22110-04i198608-198808
BLUE,DARK BLUE
main74210-22110-05i198408-198608
BEIGE,BEIGE
main74210-22110-15i198608-198612
BEIGE,DARK BEIGE
main74210-22120-02i198608-198808
MAROON,MAROON
main74210-22120-03i198504-198608
GRAY,COOL GRAY
main74210-22120-04i198608-198808
BLUE,DARK BLUE
main74210-22120-05i198504-198608
BEIGE,BEIGE
main74210-22120-15i198608-198808
BEIGE,DARK BEIGE
74220ARMREST ASSY, FRONT, LH
main74220-22060-03i198705-198808
GRAY,COOL GRAY
main74220-22060-05i198608-198612
BEIGE,BEIGE
main74220-22060-12i198608-198808
MAROON,MAROON
main74220-22060-15i198608-198808
BEIGE,DARK BEIGE
main74220-22060-24i198608-198808
BLUE,DARK BLUE
main74220-22090-02i198408-198808
W/*PW,MAROON,MAROON
main74220-22090-03i198408-198608
W/*PW,GRAY,COOL GRAY
main74220-22090-04i198608-198808
W/*PW,BLUE,DARK BLUE
main74220-22090-05i198408-198608
W/*PW,BEIGE,BEIGE
main74220-22090-15i198608-198808
W/*PW,BEIGE,DARK BEIGE
main74220-22100-02i198408-198808
MAROON,MAROON
main74220-22100-03i198408-198608
GRAY,COOL GRAY
main74220-22100-04i198608-198808
BLUE,DARK BLUE
main74220-22100-05i198408-198608
BEIGE,BEIGE
main74220-22100-15i198608-198612
BEIGE,DARK BEIGE
main74220-22110-02i198608-198808
MAROON,MAROON
main74220-22110-03i198504-198608
GRAY,COOL GRAY
main74220-22110-04i198608-198808
BLUE,DARK BLUE
main74220-22110-05i198504-198608
BEIGE,BEIGE
main74220-22110-15i198608-198808
BEIGE,DARK BEIGE
74223CAP, DOOR ARMREST, RH
main74223-22010-02i198608-198808
MAROON,RED/MAROON
main74223-22010-03i198608-198808
GRAY,COOL GRAY
main74223-22010-05i198608-198612
BEIGE,BEIGE
main74223-22010-12i198705-198808
MAROON,MAROON
main74223-22010-15i198608-198808
BEIGE,DARK BEIGE
main74223-22010-24i198608-198808
BLUE,DARK BLUE
74224CAP, DOOR ARMREST, LH
main74224-22010-02i198608-198808
MAROON,RED/MAROON
main74224-22010-03i198608-198808
GRAY,COOL GRAY
main74224-22010-05i198608-198612
BEIGE,BEIGE
main74224-22010-12i198705-198808
MAROON,MAROON
main74224-22010-15i198608-198808
BEIGE,DARK BEIGE
main74224-22010-24i198608-198808
BLUE,DARK BLUE
74225CAP, DOOR ARMREST, REAR RH
main74223-22010-02i198608-198808
MAROON,RED/MAROON
main74223-22010-03i198408-198608
GRAY,COOL GRAY
main74223-22010-05i198408-198608
BEIGE,BEIGE
main74223-22010-12i198705-198808
MAROON,MAROON
main74223-22010-15i198608-198808
BEIGE,DARK BEIGE
main74223-22010-24i198608-198808
BLUE,DARK BLUE
74226CAP, DOOR ARMREST, REAR LH
main74224-22010-02i198608-198808
MAROON,RED/MAROON
main74224-22010-03i198608-198808
GRAY,COOL GRAY
main74224-22010-05i198408-198608
BEIGE,BEIGE
main74224-22010-12i198705-198808
MAROON,MAROON
main74224-22010-15i198608-198808
BEIGE,DARK BEIGE
main74224-22010-24i198608-198808
BLUE,DARK BLUE
74230ARMREST ASSY, REAR, RH
main74210-22070-03i198408-198608
GRAY,COOL GRAY
main74210-22070-04i198608-198808
BLUE,BLUE
main74210-22070-05i198608-198612
BEIGE,BEIGE
main74210-22070-12i198608-198808
MAROON,MAROON
main74210-22070-15i198608-198808
BEIGE,DARK BEIGE
main74250-22040-02i198408-198808
W/*PW,MAROON,MAROON
main74250-22040-03i198408-198608
W/*PW,GRAY,COOL GRAY
main74250-22040-04i198608-198808
W/*PW,BLUE,DARK BLUE
main74250-22040-05i198408-198608
W/*PW,BEIGE,BEIGE
main74250-22040-15i198608-198808
W/*PW,BEIGE,DARK BEIGE
main74250-22050-02i198408-198808
MAROON,MAROON
main74250-22050-03i198608-198808
GRAY,COOL GRAY
main74250-22050-04i198608-198808
BLUE,DARK BLUE
main74250-22050-05i198608-198612
BEIGE,BEIGE
main74250-22050-15i198612-198808
BEIGE,DARK BEIGE
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-22130i198408-198608
main74231-22131i198608-198808
main74231-22140i198408-198608
main74231-22141i198608-198808
main74231-22150i198408-198608
main74231-22160i198408-198608
main74231-22190i198504-198608
main74231-22200i198608-198808
main74231-22210i198608-198808
main74231-22220i198608-198808
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-22100i198504-198608
main74232-22101i198608-198808
main74232-22110i198408-198808
main74232-22120i198408-198808
main74232-22130i198408-198608
main74232-22131i198608-198808
main74232-22140i198408-198608
main74232-22141i198608-198808
74240ARMREST ASSY, REAR, LH
main74220-22060-03i198608-198808
GRAY,COOL GRAY
main74220-22060-05i198608-198612
BEIGE,BEIGE
main74220-22060-12i198608-198808
MAROON,MAROON
main74220-22060-15i198608-198808
BEIGE,DARK BEIGE
main74220-22060-24i198608-198808
BLUE,DARK BLUE
main74260-22030-02i198408-198808
W/*PW,MAROON,MAROON
main74260-22030-03i198408-198608
W/*PW,GRAY,COOL GRAY
main74260-22030-04i198608-198808
W/*PW,BLUE,DARK BLUE
main74260-22030-05i198408-198608
W/*PW,BEIGE,BEIGE
main74260-22030-15i198608-198808
W/*PW,BEIGE,DARK BEIGE
main74260-22040-02i198408-198808
MAROON,MAROON
main74260-22040-03i198408-198608
GRAY,COOL GRAY
main74260-22040-04i198608-198808
BLUE,DARK BLUE
main74260-22040-05i198608-198612
BEIGE,BEIGE
main74260-22040-15i198608-198612
BEIGE,DARK BEIGE
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-22040i198408-198808
main74271-22050i198408-198808
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-22040i198408-198808
main74272-22050i198408-198808
74310VISOR ASSY, RH
main74310-22180-03i198408-198509
GRAY,GRAY
main74310-22180-05i198408-198509
BEIGE,BEIGE
main74310-22190-02i198608-198808
MAROON,MAROON
main74310-22190-03i198509-198612
GRAY,GRAY
main74310-22190-04i198608-198808
BLUE,DARK BLUE
main74310-22190-05i198509-198612
BEIGE,BEIGE
main74310-22190-15i198608-198808
BEIGE,DARK BEIGE
main74310-22200-02i198608-198808
MAROON,MAROON
main74310-22200-03i198408-198608
GRAY,GRAY
main74310-22200-04i198608-198808
BLUE,DARK BLUE
main74310-22200-05i198408-198608
BEIGE,BEIGE
main74310-22200-15i198608-198808
BEIGE,DARK BEIGE
main74310-22210-03i198509-198608
GRAY,GRAY
main74310-22210-05i198509-198608
BEIGE,BEIGE
main74310-22220-02i198608-198808
MAROON,MAROON
main74310-22220-03i198408-198608
GRAY,GRAY
main74310-22220-04i198608-198808
BLUE,DARK BLUE
main74310-22220-05i198408-198608
BEIGE,BEIGE
main74310-22220-15i198608-198808
BEIGE,DARK BEIGE
main74310-22420-02i198611-198705
ZIMBABWE SPEC,MAROON,MAROON
main74310-22420-03i198411-198608
TRINIDAD TOBAGO SPEC,GRAY,GRAY
main74310-22420-04i198608-198705
TRINIDAD TOBAGO SPEC,BLUE,DARK BLUE
main74310-22420-05i198411-198608
TRINIDAD TOBAGO SPEC,BEIGE,BEIGE
main74310-22420-15i198608-198705
TRINIDAD TOBAGO SPEC,BEIGE,DARK BEIGE
main74310-22430-02i198608-198705
MALAYSIA SPEC,MAROON,MAROON; TRINIDAD TOBAGO SPEC,MAROON,MAROON
main74310-22430-03i198411-198608
INDONESIA SPEC,GRAY;MALAYSIA SPEC,GRAY,GRAY; TRINIDAD TOBAGO SPEC,GRAY,GRAY
main74310-22430-04i198608-198705
MALAYSIA SPEC,BLUE,DARK BLUE; TRINIDAD TOBAGO SPEC,BLUE,DARK BLUE
main74310-22430-05i198411-198608
MALAYSIA SPEC,BEIGE;INDONESIA SPEC,BEIGE,BEIGE; TRINIDAD TOBAGO SPEC,BEIGE,BEIGE
main74310-22430-15i198608-198705
MALAYSIA SPEC,BEIGE,DARK BEIGE; TRINIDAD TOBAGO SPEC,BEIGE,DARK BEIGE
main74310-22440-02i198608-198808
MAROON,MAROON
main74310-22440-03i198504-198608
GRAY,GRAY
main74310-22440-04i198608-198808
BLUE,DARK BLUE
main74310-22440-05i198504-198608
BEIGE,BEIGE
main74310-22440-15i198608-198808
BEIGE,DARK BEIGE
main74310-22450-03i198509-198608
GRAY,COOL GRAY
main74310-22450-05i198509-198608
BEIGE,BEIGE
main74310-22460-02i198608-198808
MAROON,MAROON
main74310-22460-03i198509-198608
GRAY,COOL GRAY
main74310-22460-04i198608-198808
BLUE,DARK BLUE
main74310-22460-05i198509-198608
BEIGE,BEIGE
main74310-22460-15i198608-198808
BEIGE,DARK BEIGE
main74310-22470-02i198608-198808
MAROON,MAROON
main74310-22470-03i198509-198608
GRAY,COOL GRAY
main74310-22470-04i198608-198808
BLUE,DARK BLUE
main74310-22470-05i198509-198608
BEIGE,BEIGE
main74310-22470-15i198608-198808
BEIGE,DARK BEIGE
74320VISOR ASSY, LH
main74320-20490-15i198611-198705
ZIMBABWE SPEC,BEIGE
main74320-22220-03i198509-198612
GRAY,GRAY
main74320-22220-05i198509-198612
BEIGE,BEIGE
main74320-22230-03i198408-198509
GRAY,GRAY
main74320-22230-05i198509-198612
BEIGE,BEIGE
main74320-22240-02i198608-198808
MAROON,MAROON
main74320-22240-03i198408-198608
GRAY,GRAY
main74320-22240-04i198608-198808
BLUE,DARK BLUE
main74320-22240-05i198408-198608
BEIGE,BEIGE
main74320-22240-15i198608-198808
BEIGE,DARK BEIGE
main74320-22250-03i198408-198509
GRAY,GRAY
main74320-22250-05i198408-198509
BEIGE,BEIGE
main74320-22270-02i198608-198808
MAROON,MAROON
main74320-22270-03i198408-198608
GRAY,GRAY
main74320-22270-04i198608-198808
BLUE,DARK BLUE
main74320-22270-05i198408-198608
BEIGE,BEIGE
main74320-22270-15i198608-198808
BEIGE,DARK BEIGE
main74320-22410-02i198608-198808
MAROON,MAROON
main74320-22410-04i198608-198808
BLUE,DARK BLUE
main74320-22410-15i198608-198808
BEIGE,DARK BEIGE
main74320-22480-02i198608-198705
MALAYSIA SPEC,MAROON,MAROON; TRINIDAD TOBAGO SPEC,MAROON,MAROON
main74320-22480-03i198411-198608
INDONESIA SPEC,GRAY;MALAYSIA SPEC,GRAY,GRAY; TRINIDAD TOBAGO SPEC,GRAY,GRAY
main74320-22480-04i198608-198705
INDONESIA SPEC,BLUE,DARK BLUE; MALAYSIA SPEC,BLUE,DARK BLUE; TRINIDAD TOBAGO SPEC,BLUE,DARK BLUE
main74320-22480-05i198411-198608
MALAYSIA SPEC,BEIGE;INDONESIA SPEC,BEIGE,BEIGE; TRINIDAD TOBAGO SPEC,BEIGE,BEIGE
main74320-22480-15i198608-198705
INDONESIA SPEC,BEIGE,DARK BEIGE; MALAYSIA SPEC,BEIGE,DARK BEIGE; TRINIDAD TOBAGO SPEC,BEIGE,DARK BEIGE
main74320-22490-02i198611-198705
ZIMBABWE SPEC,MAROON,MAROON
main74320-22490-03i198411-198608
TRINIDAD TOBAGO SPEC,GRAY,GRAY
main74320-22490-04i198611-198705
ZIMBABWE SPEC,BLUE,DARK BLUE
main74320-22490-05i198411-198608
TRINIDAD TOBAGO SPEC,BEIGE,BEIGE
main74320-22490-15i198608-198705
TRINIDAD TOBAGO SPEC,BEIGE,DARK BEIGE
main74320-22500-02i198608-198808
MAROON,MAROON
main74320-22500-03i198504-198608
GRAY,GRAY
main74320-22500-04i198608-198808
BLUE,DARK BLUE
main74320-22500-05i198504-198608
BEIGE,BEIGE
main74320-22500-15i198608-198808
BEIGE,DARK BEIGE
main74320-22510-03i198509-198608
GRAY,COOL GRAY
main74320-22510-05i198509-198608
BEIGE,BEIGE
main74320-22520-02i198608-198808
MAROON,MAROON
main74320-22520-03i198509-198608
GRAY,COOL GRAY
main74320-22520-04i198608-198808
BLUE,DARK BLUE
main74320-22520-05i198509-198608
BEIGE,BEIGE
main74320-22520-15i198608-198808
BEIGE,DARK BEIGE
main74320-22530-02i198608-198808
MAROON,MAROON
main74320-22530-03i198509-198608
GRAY,COOL GRAY
main74320-22530-04i198608-198808
BLUE,DARK BLUE
main74320-22530-05i198509-198608
BEIGE,BEIGE
main74320-22530-15i198608-198808
BEIGE,DARK BEIGE
74348HOLDER, VISOR
main74348-32010-22×2i198608-198808
MAROON,MAROON
main74348-32010-23×2i198408-198608
GRAY,GRAY
main74348-32010-25×2i198608-198612
BEIGE,BEIGE
main74348-32010-34×2i198608-198808
BLUE,DARK BLUE
main74348-32010-45×2i198608-198612
BEIGE,DARK BEIGE
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-22030-02i198608-198808
MAROON,MAROON
main74610-22030-03i198408-198608
GRAY,GRAY
main74610-22030-04i198608-198808
BLUE,DARK BLUE
main74610-22030-05i198408-198608
BEIGE,BEIGE
main74610-22030-15i198608-198808
BEIGE,DARK BEIGE
main74610-32010-02i198608-198808
MAROON,MAROON
main74610-32010-14i198608-198808
BLUE,DARK BLUE
main74610-32010-25i198608-198612
BEIGE,BEIGE
main74610-32010-33i198408-198608
GRAY,GRAY
main74610-32010-35i198608-198808
BEIGE,DARK BEIGE
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-22030-02×2i198608-198808
MAROON,MAROON
main74610-22030-03×2i198408-198608
GRAY,GRAY
main74610-22030-04×2i198608-198808
BLUE,DARK BLUE
main74610-22030-05×2i198408-198608
BEIGE,BEIGE
main74610-22030-15×2i198608-198808
BEIGE,DARK BEIGE
main74610-32010-02×2i198608-198808
MAROON,MAROON
main74610-32010-14×2i198608-198808
BLUE,DARK BLUE
main74610-32010-25×2i198608-198612
BEIGE,BEIGE
main74610-32010-33×2i198408-198608
GRAY,GRAY
main74610-32010-35×2i198608-198808
BEIGE,DARK BEIGE
74613PLUG, ASSIST GRIP
main74617-16010-02×6i198608-198808
MAROON,MAROON
main74617-16010-13×6i198408-198608
GRAY,GRAY
main74617-16010-35×6i198408-198608
BEIGE,BEIGE
main74617-16010-44×6i198608-198808
BLUE,DARK BLUE
main74617-16010-55×6i198612-198808
BEIGE,DARK BEIGE
main74617-30020-12×6i198608-198808
MAROON,MAROON
main74617-30020-13×6i198408-198608
GRAY,GRAY
main74617-30020-25×6i198408-198608
BEIGE,BEIGE
main74617-30020-34×6i198608-198808
BLUE,DARK BLUE
main74617-30020-35×6i198608-198808
BEIGE,DARK BEIGE
74631HOOK, COAT, A
main74631-14010-12×2i198608-198808
MAROON,MAROON
main74631-14010-35×2i198608-198612
BEIGE,BEIGE
main74631-14010-44×2i198608-198808
BLUE,DARK BLUE
main74631-14010-45×2i198612-198808
BEIGE,LIGHT BEIGE
main74631-14010-53×2i198608-198808
GRAY,GRAY
9015960254
main90159-60254
9016460014
main90164-60014
9018906020
main90189-06020
9018906024
main90189-06024
9018906043
main90189-06043
9046710012
main90467-10012
9353045020
main93530-45020

26 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CRESSIDA

This section contains 26 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESSIDA. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, CAP, DOOR ARMREST, REAR RH.
