Toyota CRESSIDA — ARMREST & VISOR

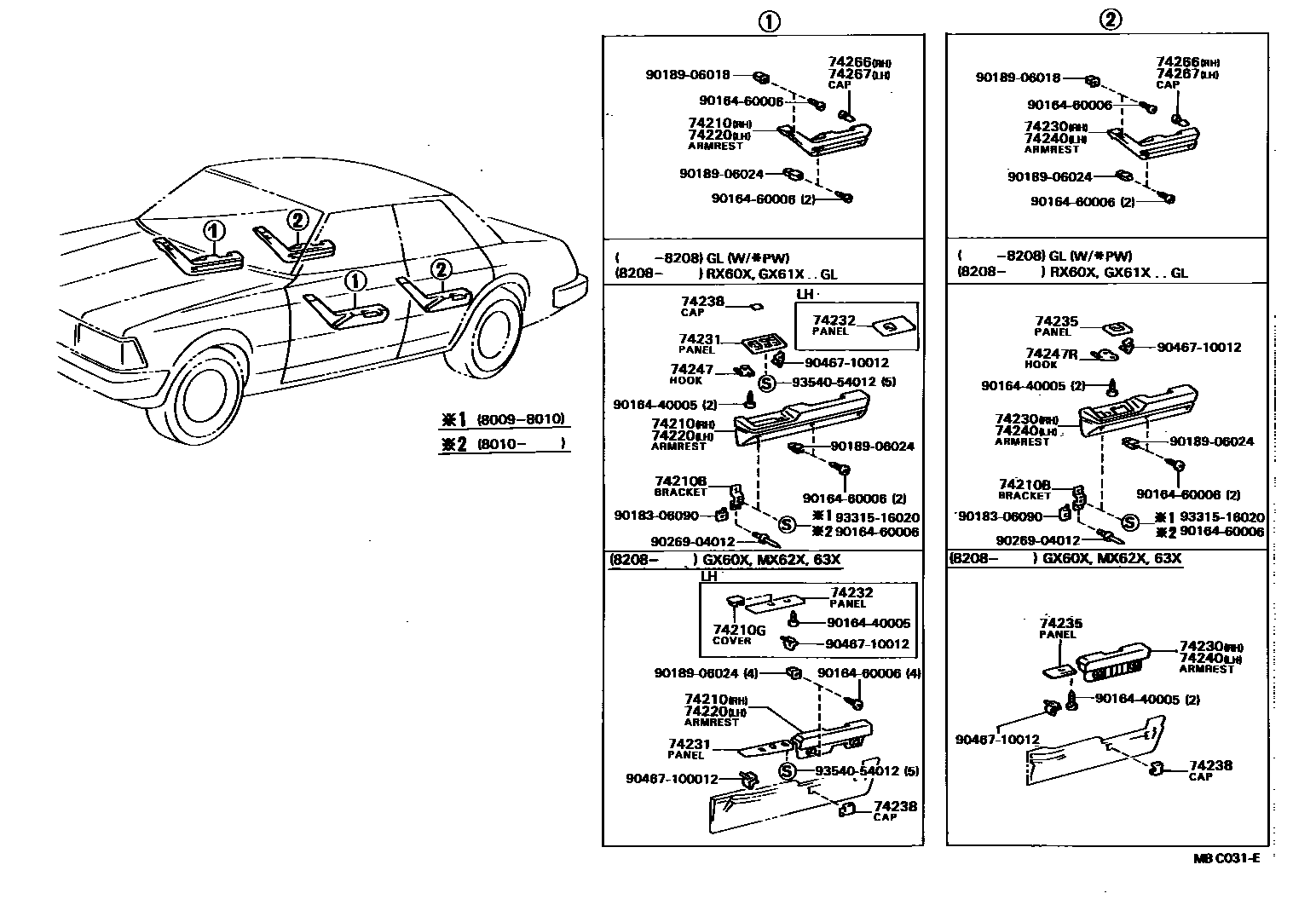

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-22070-01i198009-198208
BLACK,BLACK,TRIM2#
main74210-22070-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22070-04i198009-198208
BLUE,BLUE,TRIM8#
main74210-22070-06i198009-198208
DARK BROWN,BROWN,TRIM0#,4#
main74210-22070-14i198208-198407
BLUE,BLUE,TRIM8#
main74210-22081-01i198009-198208
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74210-22081-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#; W/POWER WINDOW,DEEP MAROON,RED/MAROON,TRIM3#
main74210-22081-04i198009-198208
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74210-22081-06i198208-198407
D-BROWN,BROWN,TRIM4#; W/POWER WINDOW,DARK BROWN,BROWN,TRIM4#
main74210-22081-14i198208-198407
BLUE,BLUE,TRIM8#; W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74210-22090-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22090-04i198208-198504
BLUE,BLUE,TRIM8#
main74210-22090-06i198208-198504
D-BROWN,BROWN,TRIM4#
74210BBRACKET, ARMREST SET
main67645-22010×4i198009-198208
74210GCOVER, SPARE SWITCH HOLE
main55539-24010-01i198208-198504
BLACK,BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-22060-01i198009-198208
BLACK,BLACK,TRIM2#
main74220-22060-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74220-22060-04i198009-198208
BLUE,BLUE,TRIM8#
main74220-22060-06i198208-198407
D-BROWN,BROWN,TRIM4#
main74220-22060-14i198208-198407
BLUE,BLUE,TRIM8#
main74220-22071-01i198009-198208
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74220-22071-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#; W/POWER WINDOW,DEEP MAROON,RED/MAROON,TRIM3#
main74220-22071-04i198009-198208
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74220-22071-06i198208-198407
D-BROWN,BROWN,TRIM4#; W/POWER WINDOW,D-BROWN,BROWN,TRIM4#
main74220-22071-14i198208-198407
BLUE,BLUE,TRIM8#; W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74220-22080-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74220-22080-04i198208-198504
BLUE,BLUE,TRIM8#
main74220-22080-06i198208-198504
D-BROWN,BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-22070-01i198009-198208
BLACK,BLACK,TRIM2#
main74210-22070-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74210-22070-04i198009-198208
BLUE,BLUE,TRIM8#
main74210-22070-06i198009-198208
DARK BROWN,BROWN,TRIM0#,4#
main74210-22070-14i198208-198504
BLUE,BLUE,TRIM8#
main74250-22021-01i198009-198208
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74250-22021-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#; W/POWER WINDOW,DEEP MAROON,RED/MAROON,TRIM3#
main74250-22021-04i198009-198208
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74250-22021-06i198208-198407
D-BROWN,BROWN,TRIM4#; W/POWER WINDOW,D-BROWN,BROWN,TRIM4#
main74250-22021-14i198208-198407
BLUE,BLUE,TRIM8#; W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74250-22030-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74250-22030-04i198208-198504
BLUE,BLUE,TRIM8#
main74250-22030-06i198208-198504
D-BROWN,BROWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-22060i198009-198208
RH
main74231-22070i198009-198208
RH
main74231-22080i198208-198504
main74231-22090i198208-198407
main74231-22110i198208-198407
main74231-22120i198208-198407
LH
main74232-22080i198208-198407
RH
main74232-30090i198009-198208
LH
main74241-22010i198009-198208
LH
main74241-22020i198009-198208
LH
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-22060i198208-198504
main74232-22070i198208-198407
main74232-22080i198208-198407
74235PANEL, REAR ARMREST BASE, UPPER
main74271-22020i198208-198504
RH
main74271-22030i198208-198407
RH,W/*PW
main74271-30030i198009-198208
RH
main74272-22020i198208-198504
LH
main74272-22030i198208-198407
LH,W/*PW
main74272-30030i198009-198208
LH
74238CAP, DOOR ARMREST BASE
main74237-22010i198009-198208
main74237-22020-02×8i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74237-22020-04×8i198208-198407
BLUE,BLUE,TRIM8#
main74237-22020-06×8i198208-198407
D-BROWN,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74220-22060-01i198009-198208
BLACK,BLACK,TRIM2#
main74220-22060-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main74220-22060-04i198009-198208
BLUE,BLUE,TRIM8#
main74220-22060-06i198208-198407
D-BROWN,BROWN,TRIM4#
main74220-22060-14i198208-198504
BLUE,BLUE,TRIM8#
main74260-22010-01i198009-198208
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74260-22010-04i198009-198208
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74260-22010-06i198009-198208
W/POWER WINDOW,DARK BROWN,BROWN,TRIM4#
main74260-22011-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#; W/POWER WINDOW,DEEP MAROON,RED/MAROON,TRIM3#
main74260-22011-06i198208-198407
D-BROWN,BROWN,TRIM4#; W/POWER WINDOW,DARK BROWN,BROWN,TRIM4#
main74260-22011-14i198208-198407
BLUE,BLUE,TRIM8#; W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74260-22020-02i198208-198504
DEEP MAROON,RED/MAROON,TRIM3#
main74260-22020-04i198208-198504
BLUE,BLUE,TRIM8#
main74260-22020-06i198208-198504
D-BROWN,BROWN,TRIM4#
74247HOOK, FRONT DOOR ARMREST UPPER BASE
main74247-30010×2i198009-198208
74247RHOOK, REAR DOOR ARMREST UPPER BASE
main74247-22010×2i198208-198407
74266CAP, DOOR ARMREST, RH
74267CAP, DOOR ARMREST, LH
9016440005
main90164-40005
9016460006
main90164-60006
9018306090
main90183-06090
9018906018
main90189-06018
9018906024
main90189-06024
9026904012
main90269-04012
9046710001
main90467-10001
9046710012
main90467-10012
9331516020
main93315-16020
9354054012
main93540-54012

24 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CRESSIDA

This section contains 34 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CRESSIDA. Key components include: ARMREST ASSY, FRONT, RH, BRACKET, ARMREST SET, COVER, SPARE SWITCH HOLE, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH.
