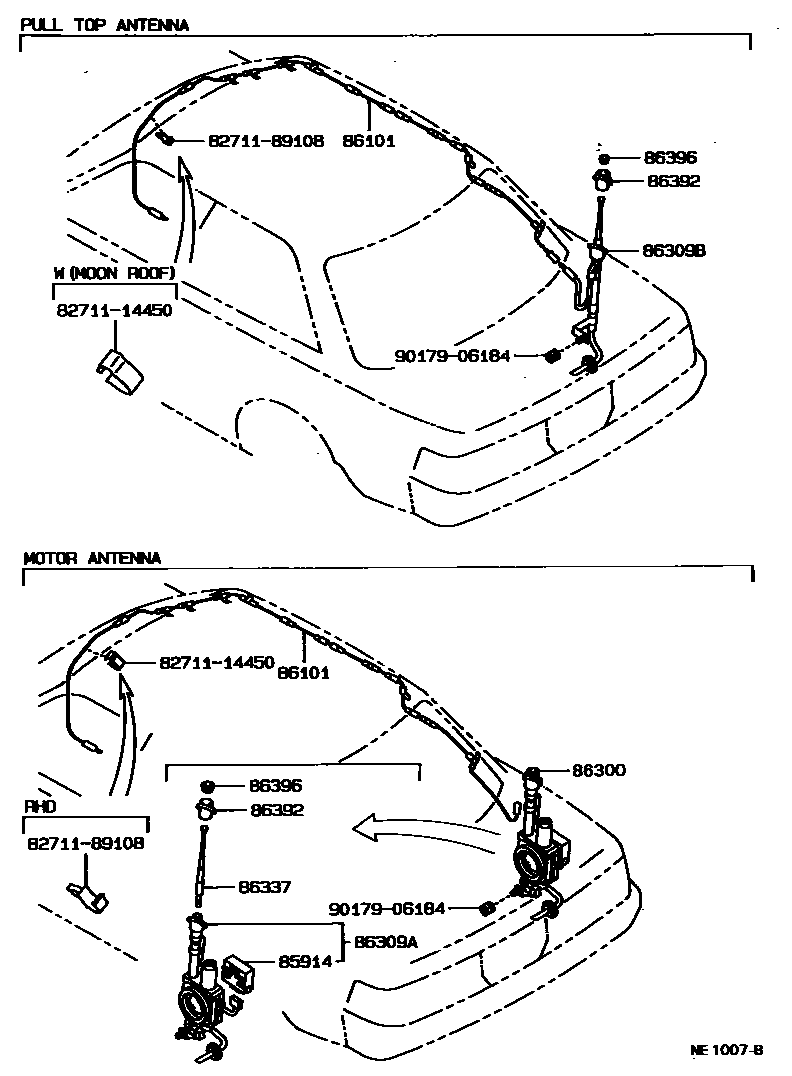

Toyota CRESSIDA — ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010i198808-199608

86101CORD SUB-ASSY, ANTENNA

main86101-22200i199008-199108

main86101-22230i199008-199108

W(MOON ROOF)

86300ANTENNA ASSY, W/HOLDER

main86300-22390i199302-199603

main86300-22391i199603-199608

main86300-22400i198808-198912

main86300-22401i198912-199302

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-22100i198808-199603

main86309-22101i199603-199608

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-22110i198808-198912

main86309-22111i198912-199302

86337ROD & PIPE, SEALED W/CABLE

main86337-22390i198808-199603

main86337-2B040i199603-199608

86392ORNAMENT, ANTENNA

main86392-22040i198808-199302

MOTOR ANTENNA

main86392-22050i198808-199302

86396NUT, ANTENNA

main86396-22030i198808-199302

main86396-89102i198808-199302

MOTOR ANTENNA

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

8271189108WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89108

9017906184

main90179-06184

11 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CRESSIDA

This section contains 11 genuine Toyota parts for the ANTENNA system of the Toyota CRESSIDA. Key components include: RELAY, MOTOR ANTENNA CONTROL, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, MOTOR ANTENNA, POLE SUB-ASSY, PULL TOP ANTENNA.
