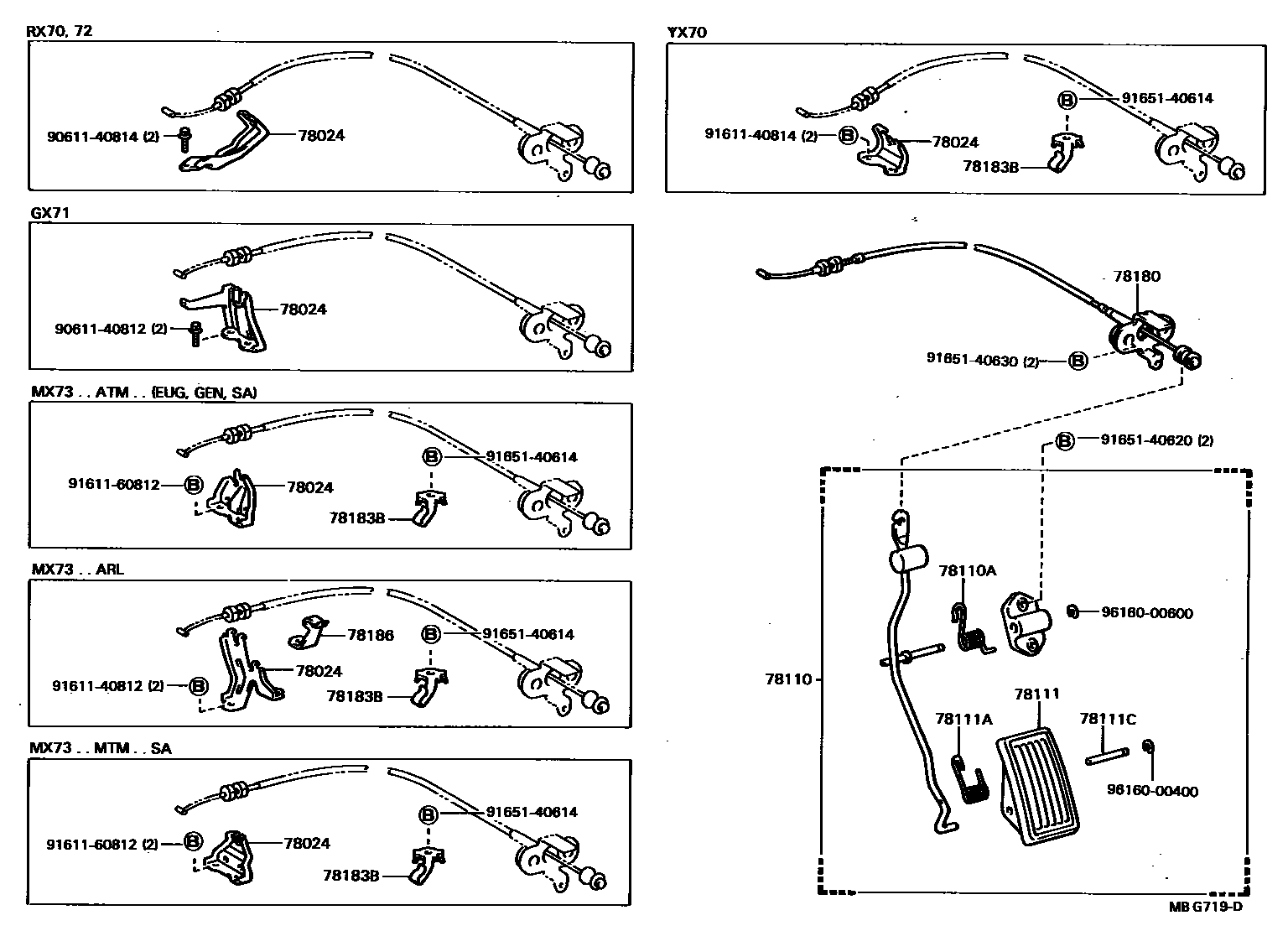

Toyota CRESSIDA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
W/AUTO DRIVE
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78180WIRE ASSY, ACCELERATOR
W/AUTO DRIVE
W/AUTO DRIVE
78183BCLAMP, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9061140812
main90611-40812
9061140814
main90611-40814
9161140812
main91611-40812
9161140814
main91611-40814
9161160812
main91611-60812
9165140614
main91651-40614
9165140620
main91651-40620
9165140630
main91651-40630
9616000400
main96160-00400
9616000600
main96160-00600
19 parts on this diagram · 5 diagrams in section
ACCELERATOR LINK for Toyota CRESSIDA
This section contains 67 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CRESSIDA. Key components include: LINK, ACCELERATOR, BUSH (FOR ACCELERATOR LINK), SPRING, TORSION (FOR ACCELERATOR LINK), SPRING,TENSION (FOR ACCELERATOR LINK), BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE.
