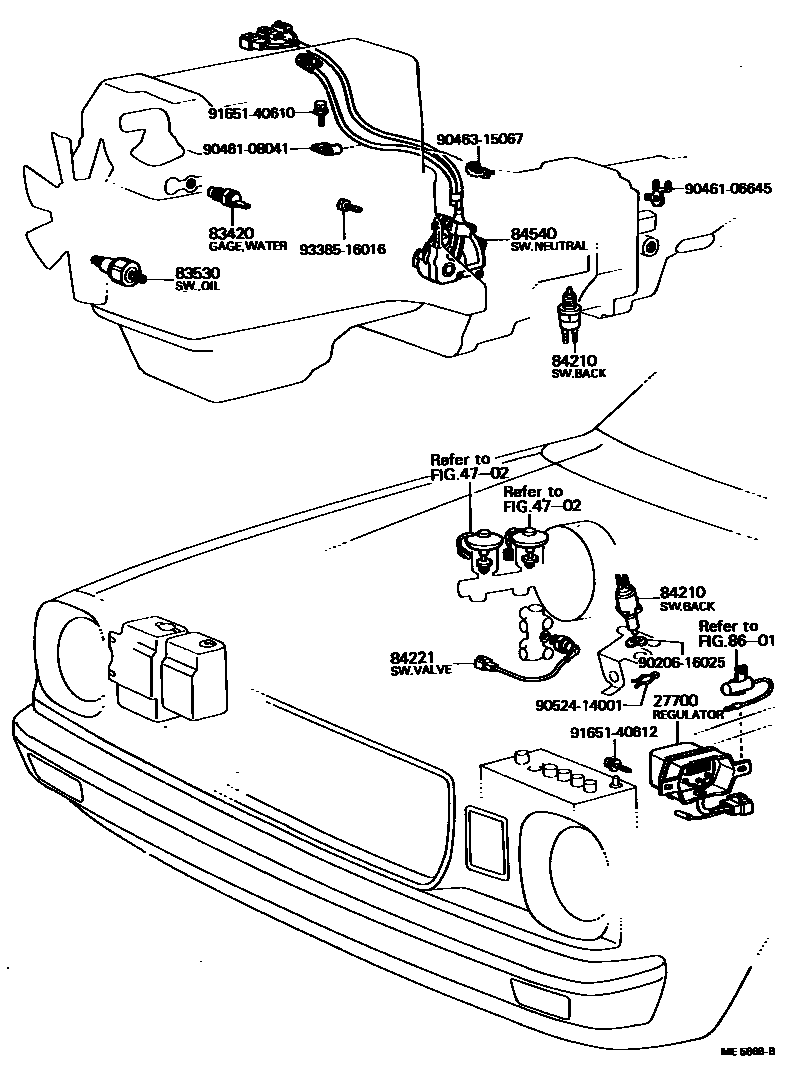

Toyota CRESSIDA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27700REGULATOR ASSY, GENERATOR

main27700-28010i18R..RX30..GEN,SA197711-197803

main27700-34020i18R..RX30..LHD..STD..EUG;18R#,4M..MX32,RX30..DLX..(ARL,EUR)197711-197808

sub27700-73010

main27700-36010i18R,4M..MX32,RX30..SA;18R..RX30..RHD..STD..EUG197708-197711

main27700-36020i18R..RX30..GEN,SA197803-197808

sub27700-15040

4702

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iMX3#,RX3#,TX30197908-198008

DENSO

main83420-20011iMX3#,RX3#197612-197908

main83420-20020iMX3#,RX3#,TX30197908-198008

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTX30198001-198008

sub83530-14030

main83530-30040iMX3#197612-197811

main83530-30041iMX3#197811-197908

main83530-30042iMX3#197908-198008

sub83530-30050

main83530-36011iRX3#197612-198008

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10040iRX3#..3H197612-198008

main84210-14010iMX3#,RX3#,TX30..4F,5F197612-198008

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-12030iRX3#..EUG197908-198008

main84220-20031iRX3#..EUG197612-197704

84540SWITCH ASSY, NEUTRAL START

main84540-12090iRX3#,TX30..3FC197808-198008

sub84540-12130

sub90461-12223

sub93385-16025

main84540-22130iMX3#..3FC197612-198008

sub84540-22131

sub90461-10284

sub93385-16025

main84540-22140iRX3#..3FC197612-197808

8601

9020616025

main90206-16025

9046106645

main90461-06645

9046108041

main90461-08041

9046315067

main90463-15067

9052414001

main90524-14001

9165140610

main91651-40610

9165140612

main91651-40612

9338516016

main93385-16016

16 parts on this diagram · 6 diagrams in section
