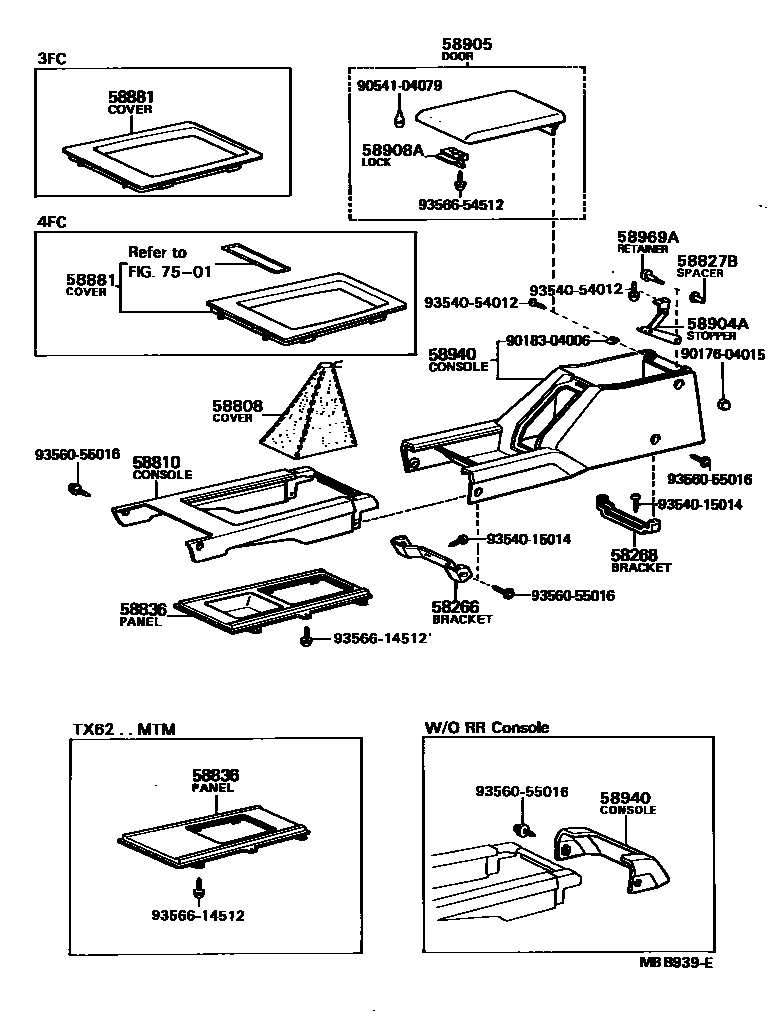

Toyota CRESSIDA — CONSOLE BOX & BRACKET

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58996-22010iGX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F198009-198504

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58853-22020iGX6#,LX60,MX6#,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198504

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22060-01iLX60,RX6#,TX62..4F,5F198009-198208

BLACK,BLACK,TRIM2#

main58808-22060-02iGX6#,LX60,RX60,TX62..4F,5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main58808-22060-04iLX60,RX6#,TX62..4F,5F198009-198208

BLUE,BLUE,TRIM8#

main58808-22060-06iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

D-BROWN,BROWN,TRIM0#,4#

main58808-22060-14iGX6#,LX60,RX60,TX62..4F,5F198208-198504

BLUE,BLUE,TRIM8#

58810CONSOLE ASSY

main58811-22120-01iLX60,MX62,RX6#,TX62..3FC,4F,4FC,5F198009-198208

BLACK,BLACK,TRIM2#

main58811-22120-02iGX6#,LX60,MX6#,RX60,TX62..3FC,4F,4FC,5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main58811-22120-04iLX60,MX62,RX6#,TX62..3FC,4F,4FC,5F198009-198208

BLUE,BLUE,TRIM8#

main58811-22120-06iGX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F198009-198504

D-BROWN,BROWN,TRIM0#,4#

main58811-22120-14iGX6#,LX60,MX6#,RX60,TX62..3FC,4F,4FC,5F198208-198504

BLUE,BLUE,TRIM8#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

main58967-22010iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

58836PANEL, CONSOLE, UPPER FRONT

main58821-22010iTX62..3FC;LX60,MX62,RX6#..3FC,4F,4FC,5F198009-198208

main58821-22020iTX62..4F198009-198208

main58821-22050iTX62..3FC;GX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

main58821-22060iTX62..5F198209-198504

58881COVER, SHIFTING HOLE

main58841-22040iRX6#,TX62..3FC198009-198208

main58841-22050iLX60,MX62,RX60..4FC198009-198208

main58841-22080iLX60,MX62,RX60..ATM198208-198504

main58841-22090iGX6#,MX63,TX62..ATM198208-198504

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-22020iGX6#,LX60,MX6#,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198504

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-22020-01iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

BLACK,BLACK,TRIM2#

main58905-22020-02iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main58905-22020-04iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

BLUE,BLUE,TRIM8#

main58905-22020-06iGX6#,LX60,MX6#,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198504

D-BROWN,BROWN,TRIM0#,4#

main58905-22020-14iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

BLUE,BLUE,TRIM8#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-22010iGX6#,LX60,MX6#,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198504

58940CONSOLE ASSY, REAR

main58901-22020-01iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

BLACK,BLACK,TRIM2#

main58901-22020-04iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

BLUE,BLUE,TRIM8#

main58901-22020-06iLX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198208

D-BROWN,BROWN,TRIM0#,4#

main58901-22070-02iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

main58901-22070-06iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

D-BROWN,BROWN,TRIM4#

main58901-22070-14iGX6#,LX60,MX6#,RX60..3FC,4F,4FC,5F198208-198504

BLUE,BLUE,TRIM8#

main58923-22010-01iLX60,TX62..STD198009-198208

BLACK,BLACK,TRIM2#

main58923-22010-02iTX62198209-198504

DEEP MAROON,RED/MAROON,TRIM3#

main58923-22010-04iLX60,TX62..STD198009-198208

BLUE,BLUE,TRIM8#

main58923-22010-06iLX60,TX62..STD198009-198504

D-BROWN,BROWN,TRIM0#,4#

main58923-22010-14iTX62198209-198504

BLUE,BLUE,TRIM8#

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iGX6#,LX60,MX6#,RX6#..(3FC,4F,4FC,5F)..(DLX,GL,SXL,XL)198009-198504

7501

9017604015

main90176-04015

9018304006

main90183-04006

9054104079

main90541-04079

9354015014

main93540-15014

9354054012

main93540-54012

9356055016

main93560-55016

9356614512

main93566-14512

9356654512

main93566-54512

21 parts on this diagram · 1 diagram in section
