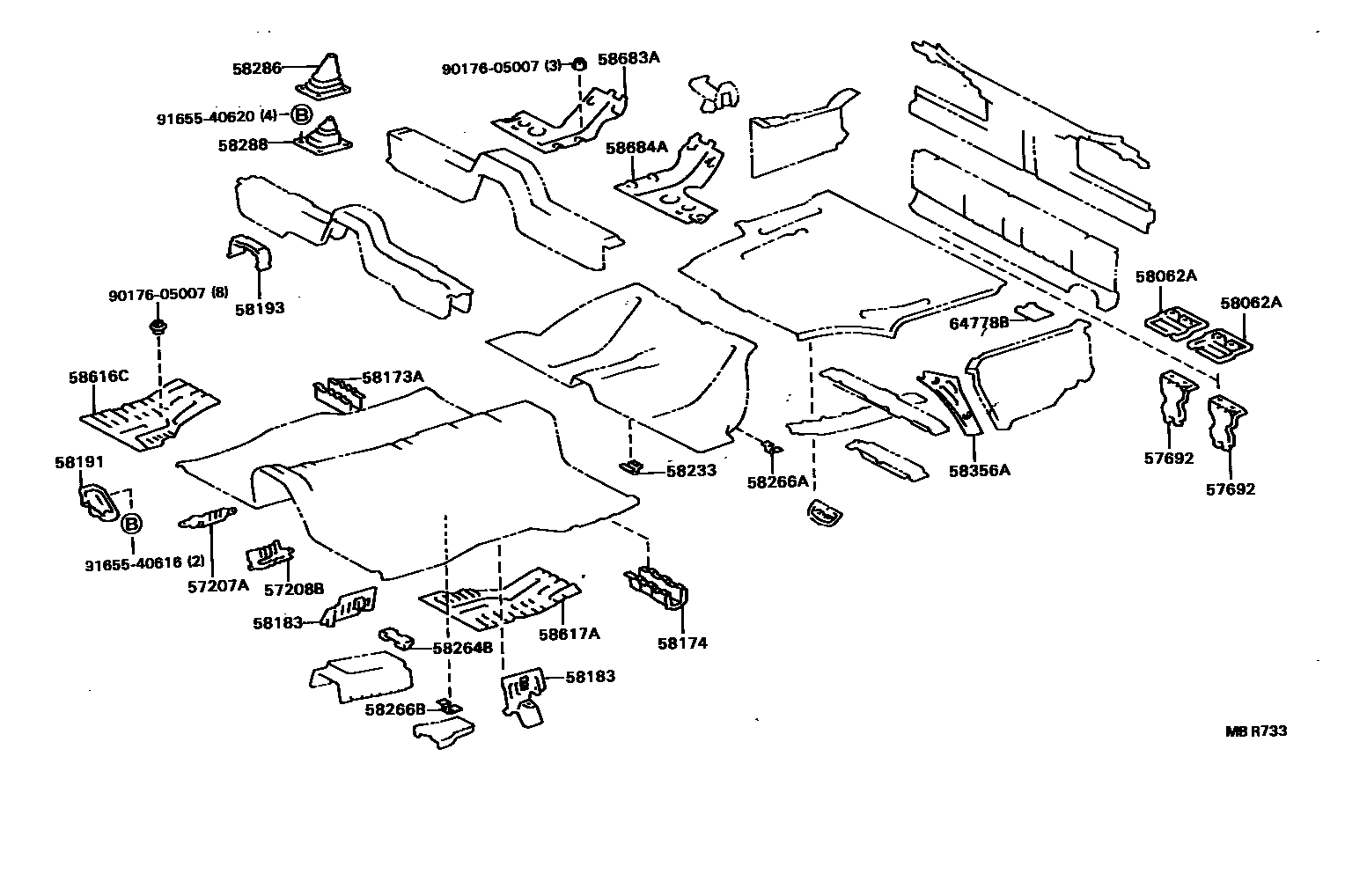

Toyota CRESSIDA WAGON — FLOOR PAN & LOWER BACK PANEL
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58173ADEFLECTOR, FRONT FLOOR STONE, RH
FOR SOUTH AFRICA CKD
58174DEFLECTOR, FRONT FLOOR STONE, LH
FOR SOUTH AFRICA CKD
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58233BRACKET, EXHAUST PIPE MOUNTING
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58266ABRACKET, FUEL TUBE CLAMP
58266BBRACKET, FUEL TUBE CLAMP
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58356AREINFORCEMENT, FLOOR SIDE PLATE, LH
58616CPANEL, FRONT FLOOR SILENCER, NO.1
58617APANEL, FRONT FLOOR SILENCER, NO.2
58683APANEL, CENTER FLOOR SILENCER, RH
58684APANEL, CENTER FLOOR SILENCER, LH
64778BPROTECTOR, SPARE WHEEL
9017605007
main90176-05007
9165540616
main91655-40616
9165540620
main91655-40620
24 parts on this diagram · 4 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CRESSIDA WAGON
This section contains 69 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CRESSIDA WAGON. Key components include: BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH, BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, BRACKET, FUEL TANK MOUNTING, REAR CENTER, BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR.
