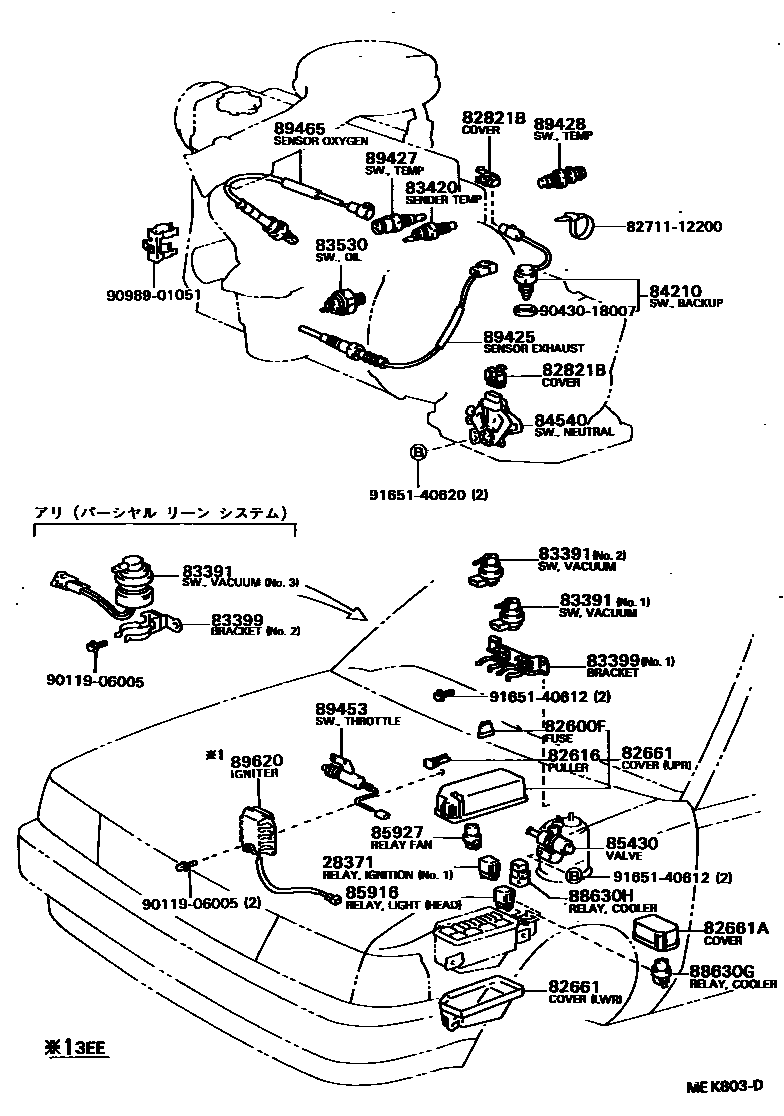

Toyota CORSA/TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28371RELAY, IGNITION, NO.1

main90987-02004i1NT..NL30..5F198805-199009

main90987-04002i2E,3E#..EL3#;1NT..NL30..5F198805-199009

82600FFUSE, FUSE BLOCK

main90982-07011iEL3#,NL30198805-199009

main90982-09002iEL3#,NL30198805-199009

main90982-09003×4iEL31..EFI,TBO198805-199009

main90982-09004iEL3#,NL30198805-199009

main90982-09005×2iEL3#198805-198908

82616PULLER, FUSE

main82616-12010iEL3#,NL30198805-199009

82661COVER, RELAY BLOCK, NO.1

main82661-16140iEL3#..CBR198805-199009

main82661-16150iEL31..EFI,TBO198805-199009

main82661-16160iNL30..5F198805-199009

main82661-16200iEL3#,NL30198805-199009

main82661-16210iNL30..4FC198805-199009

82661ACOVER, RELAY BLOCK, NO.2

main82661-16180iNL30198805-199009

main82661-16190iEL31..TBO198805-199009

82821BCOVER, CONNECTOR

main82821-12250iEL3#,NL30..MTM198805-199009

BACK UP LAMP SW.

main82821-16030iEL3#,NL30..ATM198805-199009

NEUTRAL START SW.

83391SWITCH, VACUUM

main83391-10070iEL3#..MTM..CBR198805-199009

main83391-12210iEL30..3DS..4F..(TX,VC)198805-199009

*52,NO.1

main83391-12240iEL3#..CBR198805-199009

main83391-16130iEL30..3DS..4F..(TX,VC)198805-199009

*52,NO.3

83399BRACKET, VACUUM SWITCH

main83399-10020iEL30..3DS..4F..(TX,VC)198805-199009

*52,NO.2

main83399-16070iEL30..3DS..4F..(TX,VC)198805-199009

main83399-16090iEL3#..MTM..CBR198805-199009

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL3#,NL30198805-199009

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iNL30198805-199009

sub83530-28030

main83530-30080iEL3#198805-199009

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL3#,NL30..MTM198805-199009

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEL3#,NL30..ATM198805-199009

85430VALVE, OUTER VENT CONTROL

main90925-09039iEL3#..CBR198805-199009

85916RELAY, LIGHT CONTROL

main90987-01003iEL3#,NL30198805-199009

TAIL LAMP

main90987-02006iEL3#,NL30198805-199009

HEAD LAMP

85927RELAY, COOLING FAN

main85925-32010iNL30..5F;EL31..4FC..TBO198805-199009

main90987-03001iEL3#..CBR,EFI;EL31..5F..TBO198805-199009

main90987-04002iNL30..4FC198805-199009

88630GRELAY ASSY, COOLER

main88630-95702iEL31..TBO198805-199009

main90987-02004iEL31..EX,VX198805-199009

88630HRELAY ASSY, COOLER

main88630-16090iEL31,NL30..(3FC,4F,5F)..(GX,TX,VC,VL)198805-199009

main90987-03001iEL31..TBO198805-199009

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12210iEL31198805-199009

sub89425-32090

main89425-12250iEL30198805-199009

89427SWITCH, TEMPERATURE DETECT

main89427-16030iNL30..4FC198805-199009

main89427-16050iEL31..4FC..(SXI,UX,VSI,VU)198805-199009

main89427-32021iNL30..5F..(EX,VX)198805-198905

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEL3#..CBR,EFI198805-199009

main89428-10110iEL3#..CBR,EFI198805-199009

main89428-16020iNL30..5F198805-199009

NO.1

main89428-20060iEL31..TBO198805-199009

main89428-30070iNL30..5F..(EX,VX)198805-199009

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iEL30..3DS..4F..(TX,VC)198805-199009

main89453-16010iEL3#..CBR198805-199009

sub89453-12040

89465SENSOR, OXYGEN

main89465-10010iEL3#198805-199009

89620IGNITER ASSY

main89621-30010iEL31..EFI,TBO198805-199009

sub89621-12010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906005

main90119-06005

9043018007

main90430-18007

9098901051

main90989-01051

9165140612

main91651-40612

9165140620

main91651-40620

29 parts on this diagram · 10 diagrams in section
