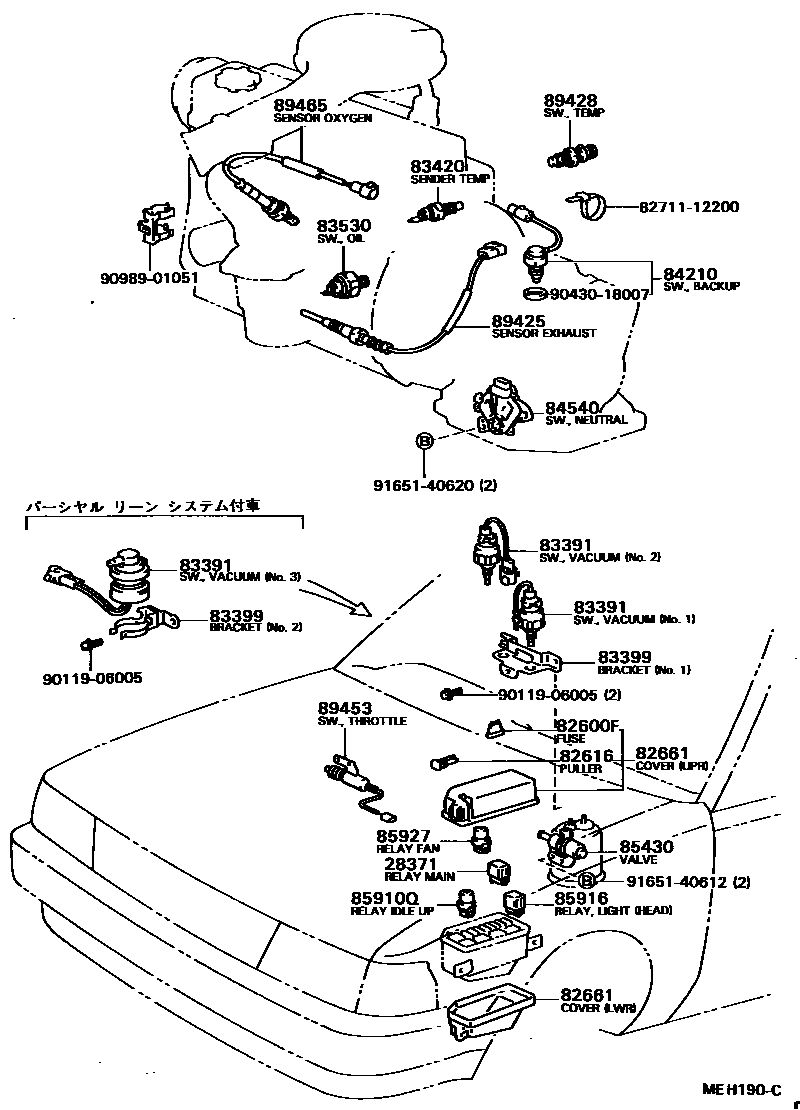

Toyota CORSA/TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28371RELAY, IGNITION, NO.1

main90987-02004i1NT..NL30..5F198605-198805

W/*AIC,NO.2

main90987-04002i2E,3E#..EL3#198605-198805

NO.1

82600FFUSE, FUSE BLOCK

main90982-07011×3iEL3#,NL30198605-198805

main90982-09002×2iEL3#,NL30198605-198805

main90982-09003×10iEL3#,NL30198605-198805

main90982-09004iEL3#,NL30198605-198805

main90982-09005×7iEL3#,NL30198605-198805

82616PULLER, FUSE

main82616-12010iEL3#,NL30198605-198805

82661COVER, RELAY BLOCK, NO.1

main82661-16140iEL3#..CBR198605-198805

UPR

main82661-16150iEL31..TBO198609-198805

UPR

main82661-16160iNL30..5F198605-198805

UPR

main82661-16200iEL3#,NL30198605-198805

LWR

main82661-16210iNL30..4FC198609-198805

UPR

83391SWITCH, VACUUM

main83391-16070iEL3#..CBR198605-198805

NO.2

main83391-16080iEL30..3DS..4F..(TX,VC)198605-198805

NO.1

main83391-16100iEL3#..MTM..CBR198605-198805

NO.1

main83391-16130iEL30..3DS..4F..(TX,VC)198605-198805

*52,NO.3

83399BRACKET, VACUUM SWITCH

main83399-10020iEL30..3DS..4F..(TX,VC)198605-198805

*52,NO.2

main83399-16040iEL30..3DS..4F..(TX,VC)198605-198805

NO.1

main83399-16060iEL3#..MTM..CBR198605-198805

NO.1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL3#,NL30198605-198805

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14020iNL30198605-198701

main83530-14030iNL30198701-198805

sub83530-28030

main83530-30080iEL3#198605-198805

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iEL3#,NL30..MTM198605-198805

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEL3#,NL30..ATM198605-198805

85430VALVE, OUTER VENT CONTROL

main90925-09016iEL3#..CBR198605-198701

main90925-09017iEL3#..CBR198702-198712

main90925-09021iEL3#..CBR198701-198702

main90925-09039iEL3#..CBR198712-198805

85910QRELAY (FOR IDLE UP)

main90987-02004iEL3#..CBR198605-198805

85916RELAY, LIGHT CONTROL

main90987-01003iEL3#,NL30198605-198805

TAIL LAMP

main90987-02006iEL3#,NL30198605-198805

HEAD LAMP

85927RELAY, COOLING FAN

main85925-32010iNL30..5F198605-198805

main90987-03001iEL3#..CBR198605-198805

main90987-04002iNL30..4FC198609-198805

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12190iEL3#198605-198705

main89425-12240iEL31198705-198805

DENSO

sub89425-12210

main89425-12250iEL31198705-198805

NATIONAL

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEL3#..CBR198605-198805

AISIN

main89428-10110iEL3#..CBR198605-198805

DENSO

main89428-15011iEL31..TBO198609-198804

sub89428-32010

main89428-16020iNL30..5F198605-198805

NO.1

main89428-20060iEL31..TBO198804-198805

main89428-30070iNL30..5F198605-198805

NO.2,W/*AIC

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iEL3#..CBR198605-198805

89465SENSOR, OXYGEN

main89465-10010iEL3#198605-198805

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906005

main90119-06005

9043018007

main90430-18007

9098901051

main90989-01051

9165140612

main91651-40612

9165140620

main91651-40620

24 parts on this diagram · 10 diagrams in section
