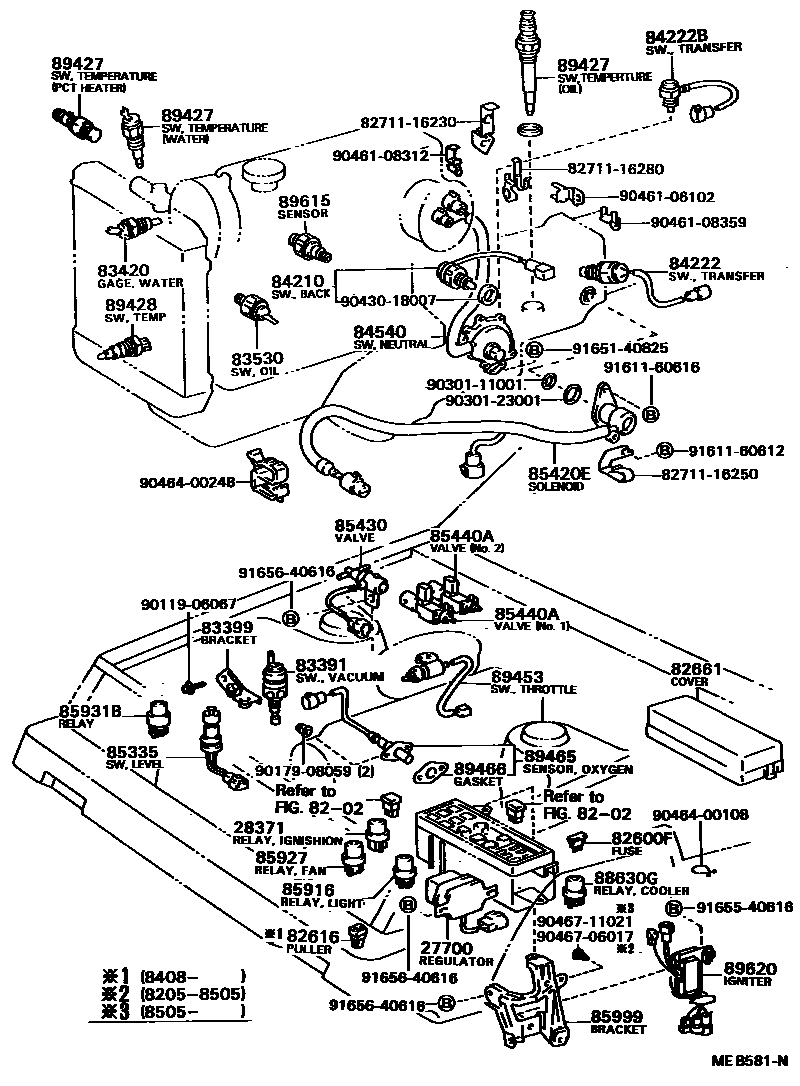

Toyota CORSA/TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-15020i2AU,3A#..AL2#198205-198910

28371RELAY, IGNITION, NO.1

main90987-02002i2AU,3A#..AL2#198205-198408

main90987-02004i2AU,3A#..AL2#198408-198910

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAL2#198205-198910

main90982-09002iAL2#198205-198910

main90982-09003×8iAL2#198205-198910

main90982-09004×2iAL2#198205-198910

main90982-09005×8iAL2#198205-198910

82616PULLER, FUSE

main82616-12010iAL2#198205-198910

82661COVER, RELAY BLOCK, NO.1

main82661-16060iAL2#198205-198408

main82661-16100iAL2#198408-198910

83391SWITCH, VACUUM

main83391-16030iAL2#198205-198910

83399BRACKET, VACUUM SWITCH

main83399-16030iAL21,25..MTM..(SX,VS)198408-198910

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAL2#198205-198308

main83420-20020iAL2#198308-198910

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAL2#198205-198502

main83530-14040iAL2#198502-198511

main83530-30050iAL2#198709-198910

sub83530-30051

main83530-30080iAL2#198511-198709

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-16010iAL2#..MTM198205-198408

main84210-16030iAL2#..MTM198408-198910

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-16010iAL25..6F198408-198910

4WD

sub84222-35020

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-16020iAL25..6F198408-198910

EL

84540SWITCH ASSY, NEUTRAL START

main84540-16020iAL2#..3FC198205-198910

85335SWITCH ASSY, WASHER LEVEL WARNING

main85335-16220iAL21,25..MTM..(SX,VS)198408-198910

main85335-22020iAL21..EX,SX,VE,VS198205-198408

85420ESOLENOID ASSY, TRANSMISSION

main85420-16010iAL25..3FC198408-198910

85430VALVE, OUTER VENT CONTROL

main85430-16030iAL21,25..MTM..(SX,VS)198408-198805

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-16010iAL25..6F198605-198910

NO.1

main85440-16020iAL25..6F198605-198910

NO.2

85916RELAY, LIGHT CONTROL

main90987-01003×2iAL2#198205-198408

main90987-02002iAL2#198408-198910

TAIL LAMP

main90987-02006iAL2#198408-198910

HEAD LAMP

85927RELAY, COOLING FAN

main90987-03001iAL2#198205-198910

85931BRELAY, FUEL HEATER

main90987-02004iAL2#198711-198910

85999BRACKET, COMBINATION RELAY

main85999-16030iAL2#198205-198910

88630GRELAY ASSY, COOLER

main90987-01003iAL2#198205-198408

main90987-02004iAL2#198408-198910

89427SWITCH, TEMPERATURE DETECT

main89427-12060iAL25..3FC198408-198910

WATER TEMPERATURE

main89427-16060iAL2#198711-198910

PTC HEATER TEMPERATURE

main89428-16010iAL25..3FC198408-198910

OIL TEMPERATURE

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15030iAL2#198205-198910

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-14010iAL2#198205-198910

89465SENSOR, OXYGEN

main89465-19065iAL2#..DX,EX,GX,VC,VE,VL198408-198905

sub89465-19066

main89465-19067iAL2#..DX,EX,GX,VC,VE,VL198905-198910

main89465-19075iAL21,25..MTM..(SX,VS)198408-198910

sub89465-19076

main89465-29085iAL2#198205-198408

89466GASKET, OXYGEN SENSOR

main89466-20020iAL2#..DX,EX,GX,VC,VE,VL198810-198910

main89466-30010iAL2#198205-198408

main89466-32010iAL21,25..MTM..(SX,VS)198408-198910

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-16010iAL20..(3DS,5DS)..(DX,VC)198205-198408

W/KNOCK CONTROL

89620IGNITER ASSY

main89620-16090iAL20..(3DS,5DS)..(DX,VC)198205-198408

W/KNOCK CONTROL

8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16230

8271116250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16250

8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16280

9011906067

main90119-06067

9017908059

main90179-08059

9030111001

main90301-11001

9030123001

main90301-23001

9043018007

main90430-18007

9046106102

main90461-06102

9046108312

main90461-08312

9046108359

main90461-08359

9046400108

main90464-00108

9046400248

main90464-00248

9046706017

main90467-06017

9046711021

main90467-11021

9161160612

main91611-60612

9161160616

main91611-60616

9165140825

main91651-40825

9165540616

main91655-40616

9165640616

main91656-40616

50 parts on this diagram · 4 diagrams in section
