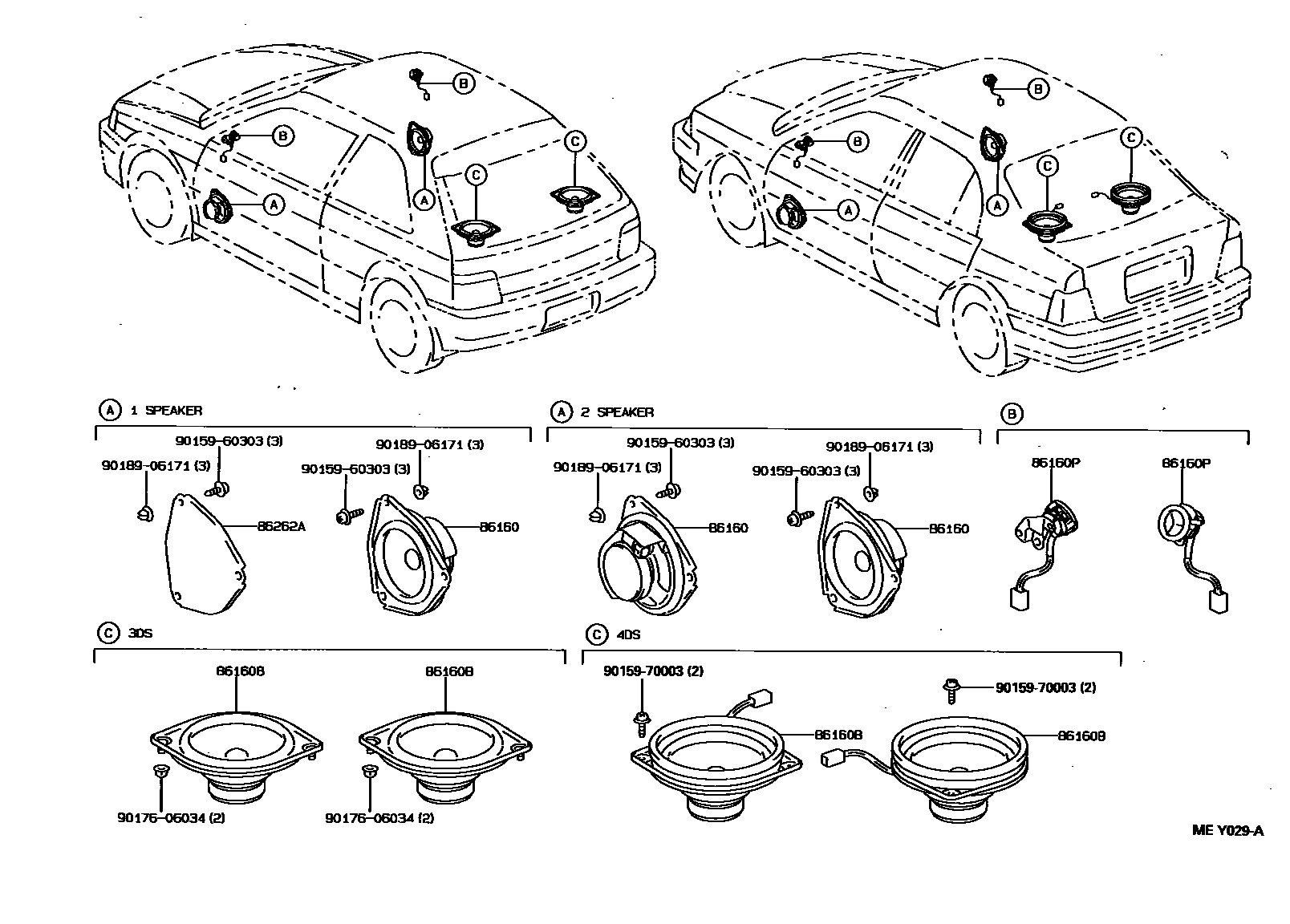

Toyota CORSA/TERCEL — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-16280iEL5#,NL50..AX,JOI,MOA; EL51,NL50;EL53..4DS;EL55..4DS..VX;EL55..AX,JOI,MOA,VITX199409
86160BSPEAKER ASSY, REAR
86160PSPEAKER ASSY, FRONT NO.2
86262ACOVER, SPEAKER, FRONT
9015960303
main90159-60303
9015970003
main90159-70003
9017606034
main90176-06034
9018906171
main90189-06171
8 parts on this diagram · 1 diagram in section
SPEAKER for Toyota CORSA/TERCEL
This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota CORSA/TERCEL. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, COVER, SPEAKER, FRONT.
