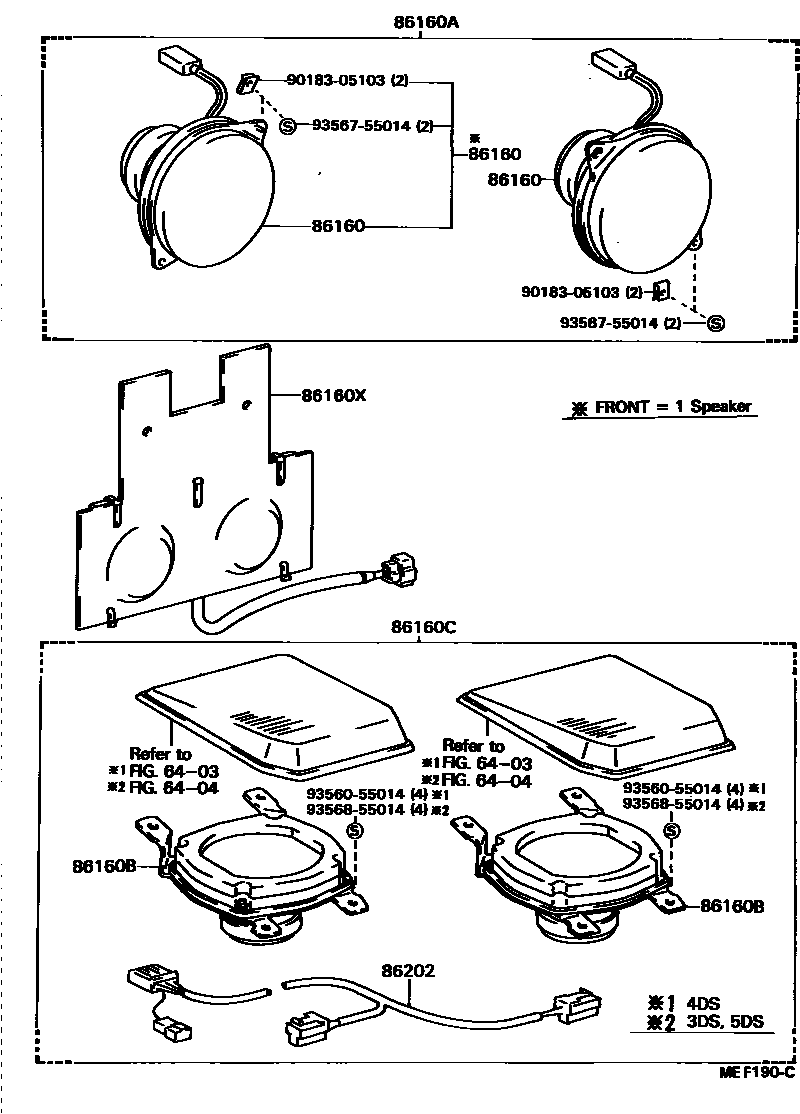

Toyota CORSA/TERCEL — SPEAKER

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

86160SPEAKER ASSY, FRONT NO.1

main86160-19565i198205-198910

FRONT=1 SPEAKER

main86160-32070i198205-198910

TEN,FRONT=2 SPEAKER

main86160-32080i198205-198910

MATSUSHITA,FRONT=2 SPEAKER

86160ASPEAKER SET, FRONT

main86160-39075i198205-198910

MATSUSHITA,FRONT=2 SPEAKER

main86160-39085i198205-198910

TEN,FRONT=2 SPEAKER

86160BSPEAKER ASSY, REAR

main86160-16040×2i198408-198511

main86160-16041×2i198511-198605

main86160-16050×2i198408-198605

86160CSPEAKER SET, REAR

main86160-19525i198408-198605

DARK WINE

main86160-19626i198408-198605

RED MAROON

main86160-19795i198408-198605

GRAY

main86160-19805i198408-198605

BEIGE

main86160-19815i198408-198605

GRAY

main86160-19825i198408-198605

BEIGE

86160XTRANSDUCER, BODYSONIC

main86160-16110i198408-198605

86202WIRE, SPEAKER, NO.1

main86203-12150i198408-198605

9018305103

main90183-05103

9356055014

main93560-55014

9356755014

main93567-55014

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CORSA/TERCEL

This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota CORSA/TERCEL. Key components include: PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT, DECK BOARD & DECK TRIM COVER, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT, SPEAKER ASSY, REAR.
