Toyota CORSA/TERCEL — SIDE MEMBER

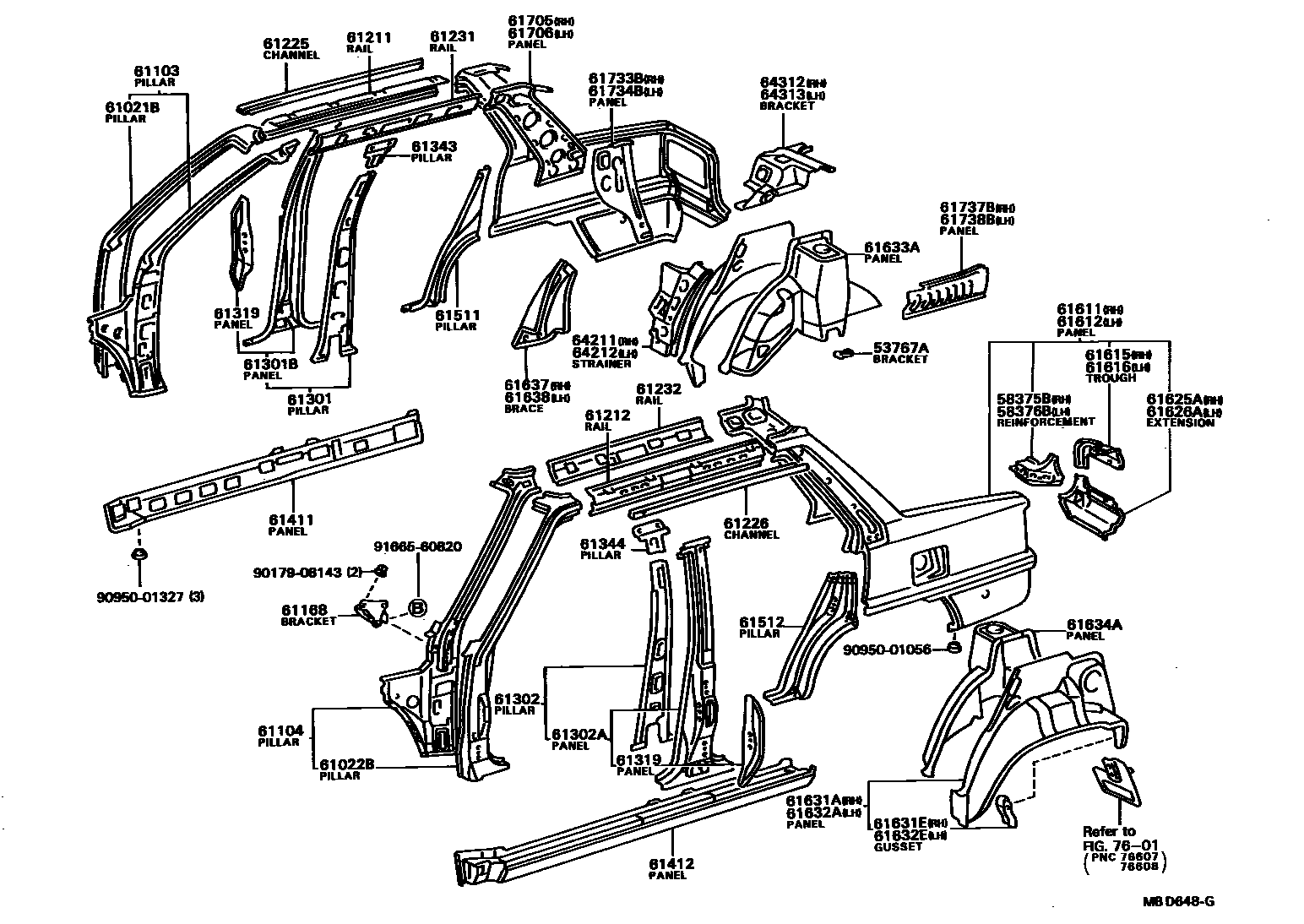

Parts diagram
53767ABRACKET, BATTERY WIRRING HARNESS
main53767-20040i198205-198910
58375BREINFORCEMENT, BODY LOWER BACK PANEL, RH
main58375-16010i198205-198605
main58375-16020i198205-198408
58376BREINFORCEMENT, BODY LOWER BACK PANEL, LH
main58376-16010i198205-198605
main58376-16020i198205-198408
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
main61021-16901i198205-198910
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
main61022-16901i198205-198910
61103PILLAR SUB-ASSY, FRONT BODY, RH
main61021-16040i198205-198611
main61021-16080i198611-198910
61104PILLAR SUB-ASSY, FRONT BODY, LH
main61022-16060i198205-198910
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
main61166-16020i198205-198910
61211RAIL, ROOF SIDE, OUTER RH
main61211-16030i198308-198605
main61211-16050i198205-198605
main61211-16060i198205-198910
61212RAIL, ROOF SIDE, OUTER LH
main61212-16030i198308-198605
main61212-16050i198205-198605
main61212-16060i198205-198910
61225CHANNEL, ROOF DRIP, CENTER RH
main61265-16010i198205-198605
main61265-16020i198205-198910
61226CHANNEL, ROOF DRIP, CENTER LH
main61266-16010i198205-198605
main61266-16020i198205-198910
61231RAIL, ROOF SIDE, INNER RH
main61231-16040i198308-198605
main61231-16060i198205-198605
main61231-16080i198205-198910
61232RAIL, ROOF SIDE, INNER LH
main61232-16040i198308-198605
main61232-16060i198205-198605
main61232-16080i198205-198910
61301PILLAR SUB-ASSY, CENTER BODY, RH
main61301-16020i198205-198910
61301BPILLAR, CENTER BODY, OUTER RH
main61301-16901i198205-198910
61302PILLAR SUB-ASSY, CENTER BODY, LH
main61302-16030i198205-198910
61302APILLAR, CENTER BODY, OUTER LH
main61302-16901i198205-198910
61319PANEL, CENTER BODY PILLAR FINISH
main61318-16020i198205-198910
RH
main61319-16020i198205-198910
LH
61343PILLAR, CENTER BODY, INNER UPPER RH
main61341-16020i198205-198910
61344PILLAR, CENTER BODY, INNER UPPER LH
main61342-16020i198205-198910
61411PANEL, ROCKER, OUTER RH
main61401-16090i198308-198605
main61401-16100i198205-198910
main61401-16110i198408-198605
SPORTS PACKAGE
61412PANEL, ROCKER, OUTER LH
main61402-16090i198308-198605
main61402-16100i198205-198910
main61402-16110i198408-198605
SPORTS PACKAGE
61511PILLAR, QUARTER LOCK, RH
main61511-16900i198205-198910
61512PILLAR, QUARTER LOCK, LH
main61512-16900i198205-198910
61611PANEL, QUARTER, RH
main61601-16900i198205-198408
main61601-16902i198205-198405
main61601-16903i198308-198405
main61601-16911i198405-198605
main61601-16912i198405-198605
main61601-16914i198408-198605
SPORTS PACKAGE
main61601-16915i198408-198910
main61601-16916i198408-198910
61612PANEL, QUARTER, LH
main61602-16900i198205-198408
W/FULL LID OPENER
main61602-16901i198205-198408
main61602-16903i198205-198405
main61602-16904i198205-198405
W/FULL LID OPENER
main61602-16905i198308-198405
main61602-16914i198308-198405
W/FULL LID OPENER
main61602-16915i198308-198405
W/FULL LID OPENER
main61602-16917i198405-198605
main61602-16918i198405-198605
W/FULL LID OPENER
main61602-16919i198405-198605
main61602-16921i198405-198605
W/FULL LID OPENER
main61602-16922i198405-198605
W/FULL LID OPENER
main61602-16923i198408-198910
main61602-16924i198408-198910
W/FULL LID OPENER
main61602-16925i198408-198910
main61602-16926i198408-198605
SPORTS PACKAGE
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-16050i198205-198408
main61621-16060i198408-198910
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-16050i198205-198408
main61622-16060i198408-198910
61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH
main61625-16030i198205-198408
61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH
main61626-16030i198205-198408
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61605-16060i198308-198605
main61605-16080i198205-198605
main61605-16130i198205-198408
main61605-16210i198408-198910
main61605-16220i198408-198910
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
main61645-12080i198408-198910
main61645-16010i198408-198605
main61645-16030i198408-198910
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61606-16080i198308-198605
main61606-16100i198205-198605
main61606-16150i198205-198408
main61606-16230i198408-198910
main61606-16240i198408-198910
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
main61646-16020i198205-198408
main61646-16030i198408-198910
main61646-16050i198408-198910
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-16060i198205-198910
main61607-16070i198408-198604
main61607-16110i198205-198605
main61607-16170i198604-198910
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-16070i198205-198910
main61608-16080i198408-198604
main61608-16140i198205-198910
main61608-16190i198604-198910
61637BRACE, QUARTER WHEEL HOUSE, RH
main61635-16040i198408-198910
main61635-16060i198205-198408
main61635-16090i198408-198910
61638BRACE, QUARTER WHEEL HOUSE, LH
main61636-16060i198205-198408
main61636-16090i198408-198910
main61636-16100i198408-198910
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
main61705-16908i198205-198605
main61705-16909i198308-198605
main61731-16900i198205-198910
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
main61706-16908i198205-198605
main61706-16909i198308-198605
main61732-16900i198205-198910
61733BPANEL, ROOF SIDE, INNER REAR RH
main61735-16010i198205-198601
main61735-16030i198601-198605
main61735-16040i198205-198408
main61735-16050i198408-198910
main61735-16060i198408-198910
61734BPANEL, ROOF SIDE, INNER REAR LH
main61736-16010i198205-198601
main61736-16030i198601-198605
main61736-16040i198205-198408
main61736-16050i198408-198910
main61736-16070i198408-198910
61737BPANEL, ROOF SIDE, INNER LOWER RH
main61737-16020i198205-198408
main61737-16040i198408-198910
main61737-16050i198408-198910
61738BPANEL, ROOF SIDE, INNER LOWER LH
main61738-16020i198205-198408
main61738-16040i198408-198910
main61738-16050i198408-198910
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
main64211-16030i198408-198910
main64211-16900i198205-198910
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
main64212-16030i198408-198910
main64212-16900i198205-198910
64312BRACKET, PACKAGE TRAY, RH
main64312-16900i198205-198910
64313BRACKET, PACKAGE TRAY, LH
main64313-16900i198205-198910
7601MUDGUARD & SPOILER
→ Go to FIG 76-01
9017908143
main90179-08143
9095001056
main90950-01056
9095001327
main90950-01327
9166560820
main91665-60820

54 parts on this diagram · 5 diagrams in section

SIDE MEMBER for Toyota CORSA/TERCEL

This section contains 75 genuine Toyota parts for the SIDE MEMBER system of the Toyota CORSA/TERCEL. Key components include: BRACKET, BATTERY WIRRING HARNESS, REINFORCEMENT, BODY LOWER BACK PANEL, RH, REINFORCEMENT, BODY LOWER BACK PANEL, LH, CARRIER, JACK, PILLAR SUB-ASSY, FRONT BODY, UPPER RH.
