Toyota CORSA/TERCEL — REAR MOULDING

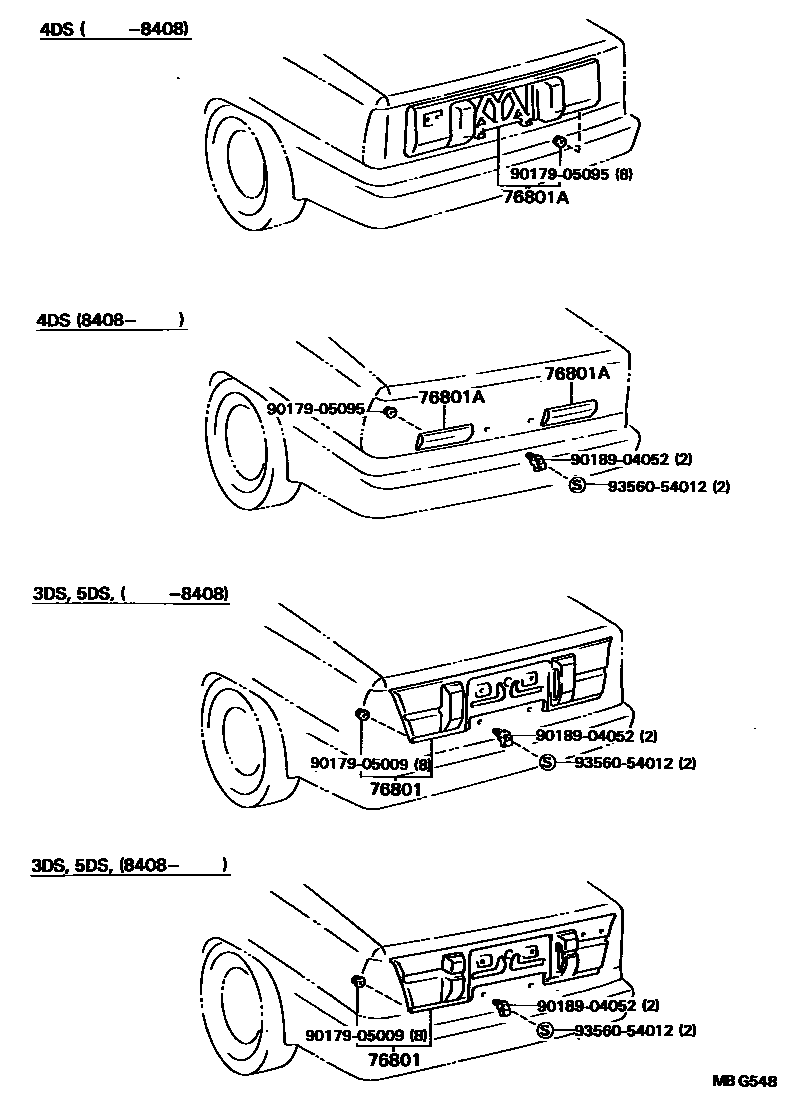

Parts diagram

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-19015i198205-198408

main76801-19025i198205-198301

main76801-19026i198301-198408

main76801-19185i198408-198605

main76801-19195i198408-198605

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-16130i198408-198605

RH

main76801-16140i198408-198605

RH

main76801-16160i198605-198910

main76801-16170i198605-198910

main76801-16180i198605-198910

main76801-16210i198605-198910

main76801-19045i198205-198301

main76801-19046i198301-198408

main76801-19055i198205-198408

main76802-16010i198408-198605

LH

main76802-16020i198408-198605

LH

9017905009

main90179-05009

9017905095

main90179-05095

9018904052

main90189-04052

9356054012

main93560-54012

6 parts on this diagram · 3 diagrams in section

REAR MOULDING for Toyota CORSA/TERCEL

This section contains 7 genuine Toyota parts for the REAR MOULDING system of the Toyota CORSA/TERCEL. Key components include: GARNISH SUB-ASSY, BACK DOOR, OUTSIDE, GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE.
