Toyota CORSA/TERCEL — PARTIAL ENGINE ASSEMBLY

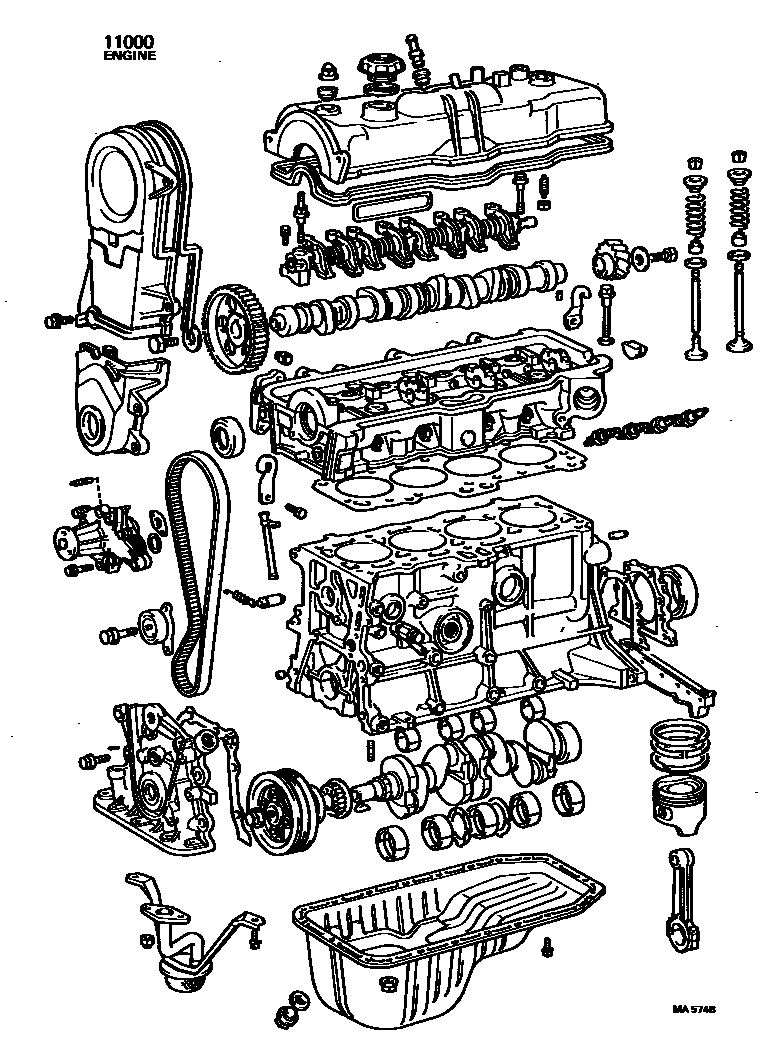

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-14040i198205-198408
main19000-14080i198408-198807
main19000-14081i198807-198910
main19000-15120i198205-198408
sub19000-15121
main19000-15130i198205-198408
main19000-15230i198408-198807
main19000-15231i198807-198910
main19000-15240i198408-198807
main19000-15241i198807-198910

1 parts on this diagram · 1 diagram in section
