Toyota CORSA/TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

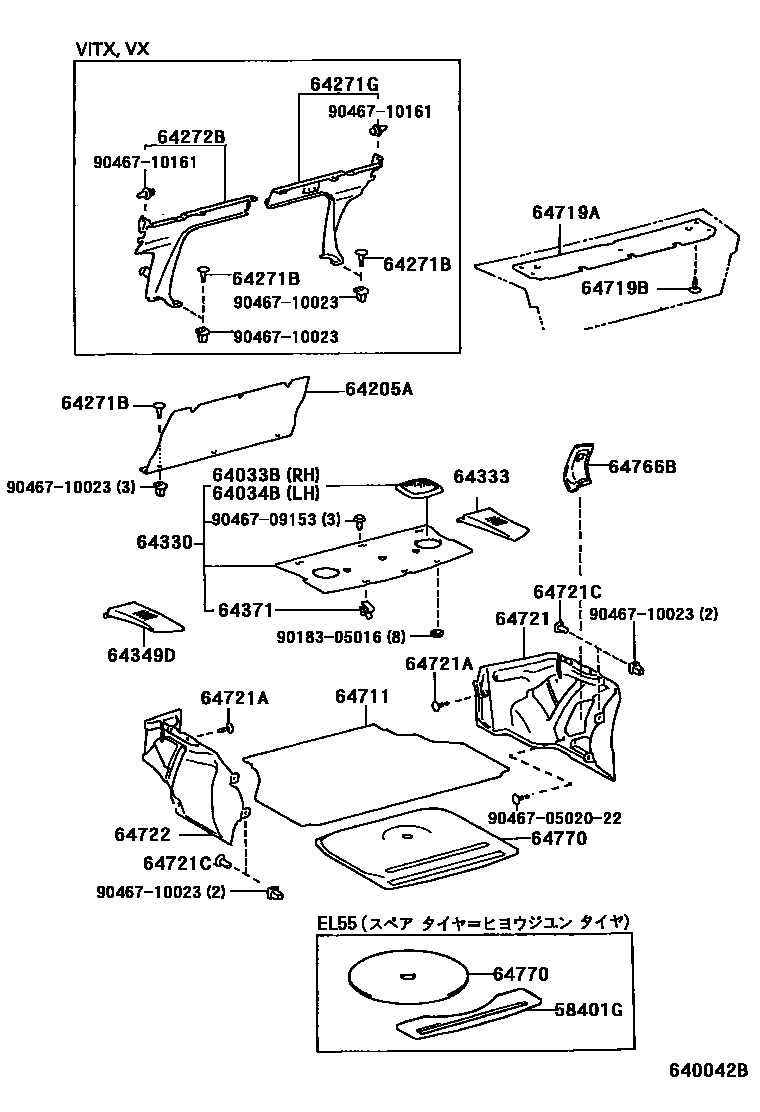

Parts diagram
58401GBOARD SUB-ASSY, REAR FLOOR, NO.1
main58401-16020i199409
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64383-16040-B0i199409-199608
BLUISH GRAY,TRIM1#
main64383-16040-B1i199608-199907
SHADOW GRAY,TRIM1#
main64383-16040-E0i199712-199907
OAK,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64383-16040-B0i199409-199608
BLUISH GRAY,TRIM1#
main64383-16040-B1i199608-199907
SHADOW GRAY,TRIM1#
main64383-16040-E0i199712-199907
OAK,TRIM4#
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-16030-C0i199409-199712
BLACK,TRIM1#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-07115-C0×2i199712
BLACK,TRIM1#,4#
64271GBOARD, ROOM PARTITION, RH
main64271-16060-C0i199409-199712
BLACK,TRIM1#
main64271-16061-C0i199712
BLACK,TRIM1#,4#
64272BBOARD, ROOM PARTITION, LH
main64272-16060-C0i199409-199712
BLACK,TRIM1#
main64272-16061-C0i199712
BLACK,TRIM1#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-16560-B0i199409-199608
BLUISH GRAY,TRIM1#
main64330-16570-B0i199409-199608
main64330-16580-B0i199409-199608
main64330-16590-B0i199409-199608
main64330-16830-B0i199608-199907
main64330-16830-E0i199712-199907
main64330-16840-B0i199608-199907
main64330-16840-E0i199712-199907
64333COVER, PACKAGE TRAY TRIM, SIDE
main64333-16070-B0i199409-199608
BLUISH GRAY,TRIM1#
main64333-16070-B1i199608
SHADOW GRAY,TRIM1#
main64333-16070-E0i199712
OAK,TRIM4#
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
main64349-16050-B0i199409-199608
BLUISH GRAY,TRIM1#
main64349-16050-B1i199608
SHADOW GRAY,TRIM1#
main64349-16050-E0i199712
OAK,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
main64371-16010×3i199409
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-16130-C0i199409-199608
BLACK,TRIM1#
main64711-16160-C0i199712
BLACK,TRIM1#,4#
main64711-16180-C0i199409-199712
main64711-16190-C0i199608-199712
BLACK,TRIM1#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-16030-C0i199409-199712
BLACK,TRIM1#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-05096-22×5i199409-199712
BLACK,TRIM1#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-16070-C0i199409-199510
BLACK,TRIM1#
main64721-16071-C0i199510-199608
BLACK,TRIM1#
main64721-16100-C0i199608-199712
BLACK,TRIM1#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-22×8i199409-199608
BLACK,TRIM1#
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-14041-C0×4i199409-199712
BLACK,TRIM1#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-16070-C0i199409-199510
BLACK,TRIM1#
main64722-16071-C0i199510-199608
BLACK,TRIM1#
main64722-16120-C0i199608-199712
BLACK,TRIM1#
64766BCOVER, QUARTER TRIM JACK
main64766-16050-C0i199608-199712
BLACK,TRIM1#
64770COVER ASSY, SPARE WHEEL
main64770-16230i199409
main64770-16240i199409
main64770-16260i199409
main64770-16270i199409
9018305016
main90183-05016
904670502022
main90467-0502022
9046709153
main90467-09153
9046710023
main90467-10023
9046710161
main90467-10161

25 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CORSA/TERCEL

This section contains 25 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CORSA/TERCEL. Key components include: BOARD SUB-ASSY, REAR FLOOR, NO.1, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, COVER SUB-ASSY, ROOM PARTITION, CLIP(FOR ROOM PARTITION BOARD).
