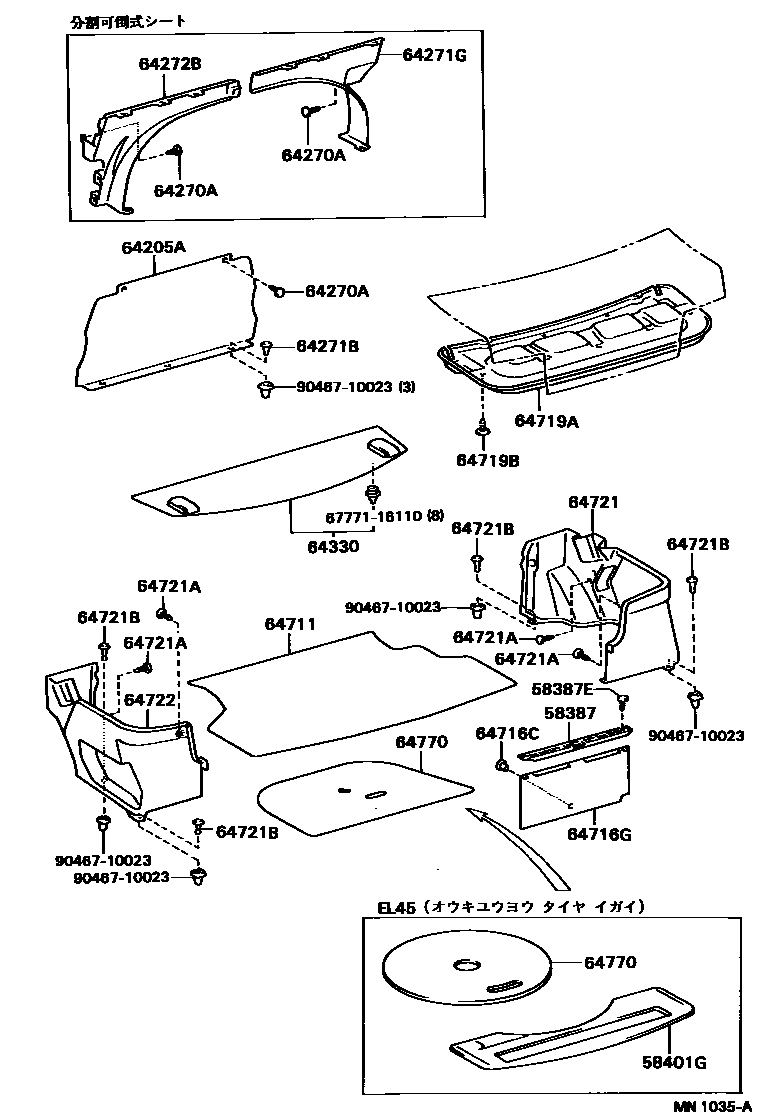

Toyota CORSA/TERCEL — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
main58387-16020-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main58387-16020-22iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199210
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main58387-16040-C0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199210-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-05098-01×4iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main90467-05098-22×4iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199311
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main90467-06055-22×4iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199311-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
EISEN BLUE,EISEN BLUE,TRIM8#
58401GBOARD SUB-ASSY, REAR FLOOR, NO.1
64205ACOVER SUB-ASSY, ROOM PARTITION
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
main90467-05096-01×3iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT); EL41..4DS..(TX,VC); EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ); EL43..VE,VIT199009-199208
main90467-05096-22×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT); EL41..4DS..(TX,VC); EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64271BCLIP(FOR ROOM PARTITION BOARD)
GRAY,TRIM2#,6#,8#; GRAY,TRIM2#,8#
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
SPRUCE,TRIM6#
BLACK,TRIM2#
SPRUCE,TRIM6#
EISEN BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
BLACK,TRIM2#,6#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05091-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main90467-05091-22iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-16070-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main64716-16070-20iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-16010-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main64719-16010-20iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-05096-01×11iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main90467-05096-22×11iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-16030-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main64721-16030-20iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-05096-01×13iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main90467-05096-22×13iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main90467-07115-03×4iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
GRAY,TRIM2#,6#,8#; GRAY,TRIM2#,8#
main90467-07115-C0×4iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-16030-01iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199009-199208
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
main64722-16030-20iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC)199208-199409
BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#
64770COVER ASSY, SPARE WHEEL
6777116110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16110
9046710023
main90467-10023
21 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CORSA/TERCEL
This section contains 21 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CORSA/TERCEL. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), BOARD SUB-ASSY, REAR FLOOR, NO.1, COVER SUB-ASSY, ROOM PARTITION, CLIP(FOR ROOM PARTITION BOARD SETTING).
