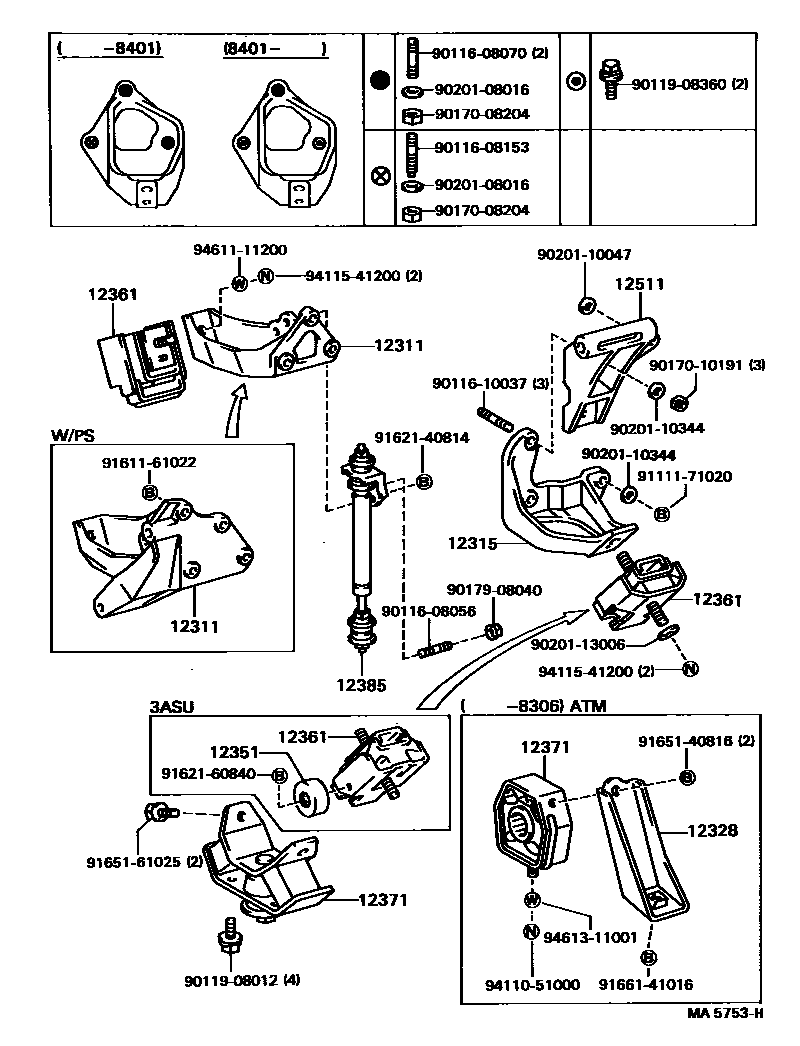

Toyota CORSA/TERCEL — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
W/PS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12328STAY, ENGINE MOUNTING, REAR LH
12351DAMPER, ENGINE MOUNTING
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12385ABSORBER, ENGINE MOUNTING, NO.1
12511BRACKET, ALTERNATOR, NO.1
9011608056
main90116-08056
9011608070
main90116-08070
9011608153
main90116-08153
9011610037
main90116-10037
9011908012
main90119-08012
9011908360
main90119-08360
9017008204
main90170-08204
9017010191
main90170-10191
9017908040
main90179-08040
9020108016
main90201-08016
9020110047
main90201-10047
9020110344
main90201-10344
9020113006
main90201-13006
9111171020
main91111-71020
9161161022
main91611-61022
9162140814
main91621-40814
9162160840
main91621-60840
9165140816
main91651-40816
9165161025
main91651-61025
9166141016
main91661-41016
9411051000
main94110-51000
9411541200
main94115-41200
9461111200
main94611-11200
9461311001
main94613-11001
32 parts on this diagram · 1 diagram in section
MOUNTING for Toyota CORSA/TERCEL
This section contains 32 genuine Toyota parts for the MOUNTING system of the Toyota CORSA/TERCEL. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, STAY, ENGINE MOUNTING, REAR LH, DAMPER, ENGINE MOUNTING, INSULATOR, ENGINE MOUNTING, FRONT.
