Toyota CORSA/TERCEL — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,NEW BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
NON-GLARE,BLACK,NEW BLACK,TRIM2#
NON-GLARE,BLUE,BLUE,TRIM8#
NON-GLARE,BEIGE,DARK BEIGE,TRIM4#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,IVORY
87908BMIRROR SUB-ASSY, RH
DOOR
W/*DRC,BLUE
W/*DRC
87909BMIRROR SUB-ASSY, LH
DOOR
W/*DRC,BLUE
W/*DRC
87910MIRROR ASSY, OUTER REAR VIEW, RH
DOOR
W/*DRC
FENDER
DOOR
W/*DRC
W/*DRC,RED,RED
W/*DRC,GRAY,LIGHT GRAY METALLIC
W/*DRC,BLUE,GRAYISH BLUE M
W/*DRC,WHITE,WHITE
W/*DRC,RED,RED
W/*DRC,GRAY,LIGHT GRAY METALLIC
W/*DRC,BLUE,GRAYISH BLUE METALLI
W/*DRC,WHITE,SUPER WHITE
RED,*MOS,RED
WHITE,*MOS,WHITE
RED,*SOS OR *ACU,RED
WHITE,*SOS OR *ACU,WHITE
RED,*SOM,*CE,*ACU OR *SOS,RED
WHITE,*SOM,*CE,*ACU OR *SOS,WHITE
RED,*SOS OR *ACU,RED
WHITE,*SOS OR *ACU,WHITE
RED,*ACU,*92,RED
WHITE,*ACU,*92,WHITE
RED,*ACU,*93,RED
WHITE,*ACU,*93,WHITE
RED,*MOS,RED
WHITE,*MOS,WHITE
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
DOOR
W/*DRC
FENDER
DOOR
W/*DRC
W/*DRC,RED,RED
W/*DRC,GRAY,LIGHT GRAY METALLIC
W/*DRC,BLUE,GRAYISH BLUE M
W/*DRC,WHITE,WHITE
W/*DRC,RED,RED
W/*DRC,GRAY-M,LIGHT GRAY METALLIC
W/*DRC,BLUE-M,GRAYISH BLUE METALIC
W/*DRC,WHITE,SUPER WHITE
RED,*MOS,RED
WHITE,*MOS,WHITE
RED,*SOS OR *ACU,RED
WHITE,*SOS OR *ACU,WHITE
RED,*SOM,*CE,*ACU OR *SOS,RED
WHITE,*SOM,*CE,*ACU OR *SOS,WHITE
RED,*SOS OR *ACU,RED
WHITE,*SOS OR *ACU,WHITE
RED,*SOM,*CE OR *SOS,RED
WHITE,*ACU,*92,WHITE
RED,*ACU,*93,RED
WHITE,*ACU,*93,WHITE
RED,*MOS,RED
WHITE,*MOS,WHITE
87941GASKET, OUTER REAR VIEW MIRROR, LH
9014950045
main90149-50045
9017906060
main90179-06060
9331915016
main93319-15016
11 parts on this diagram · 1 diagram in section

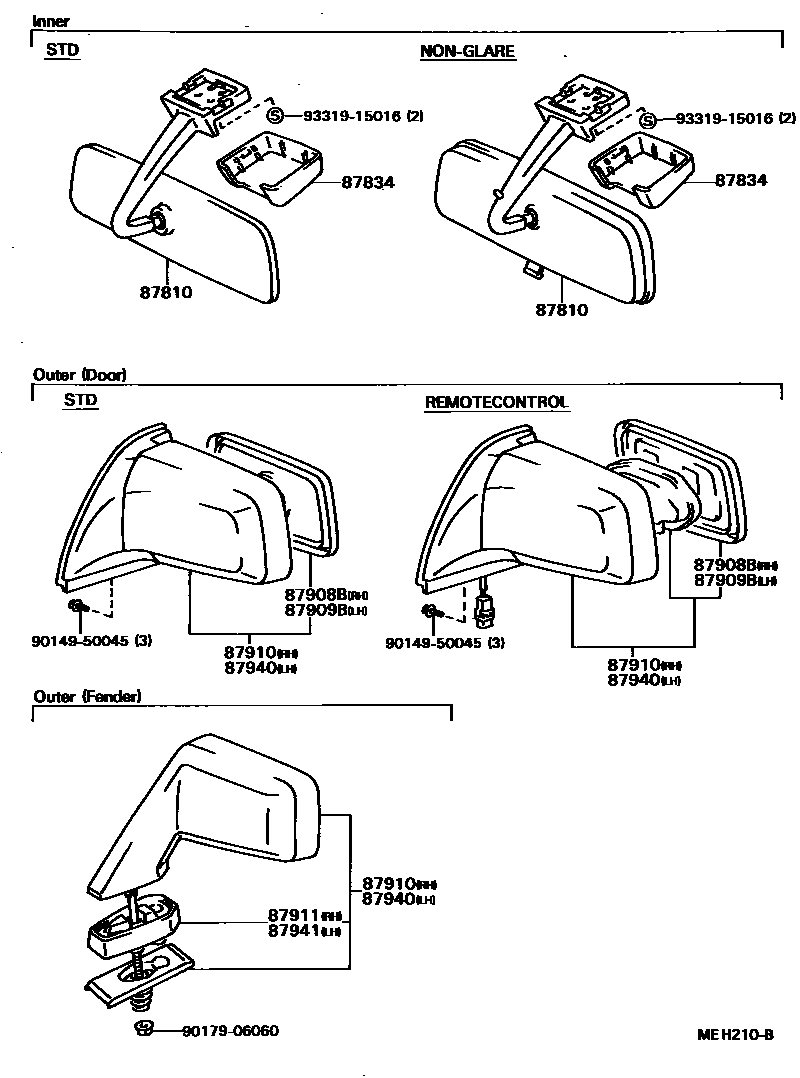

MIRROR for Toyota CORSA/TERCEL
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota CORSA/TERCEL. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
