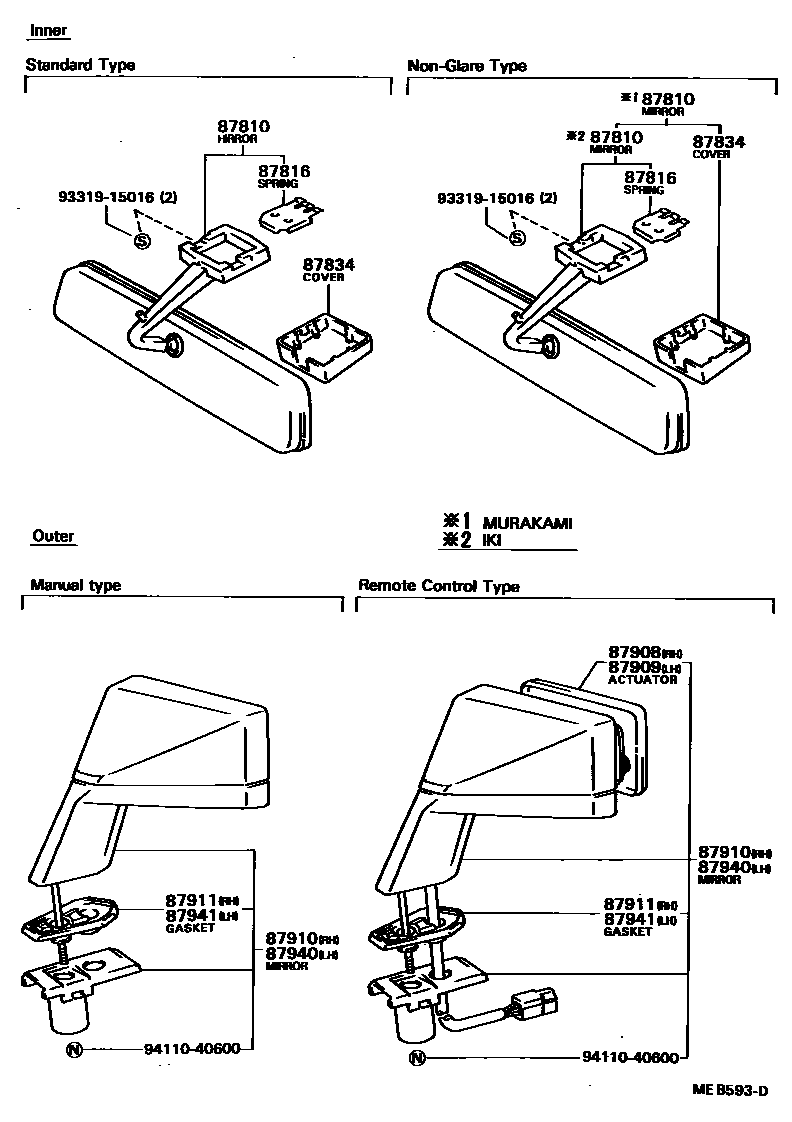

Toyota CORSA/TERCEL — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16010-01i198605-198910

BLACK,NEW BLACK,TRIM2#

main87810-16010-05i198605-198910

BEIGE,DARK BEIGE,TRIM4#

main87810-16020-01i198605-198910

BLACK,IKI,NEW BLACK,TRIM2#

main87810-16020-05i198605-198910

BEIGE,IKI,DARK BEIGE,TRIM4#

main87810-19015-15i198605-198910

BEIGE,MURAKAMI,DARK BEIGE,TRIM4#

main87810-19015-18i198308-198408

IVORY,CUTIE & SOPIA,IVORY

main87810-19015-21i198605-198910

BLACK,MURAKAMI,NEW BLACK,TRIM2#

main87810-20170-18i198205-198605

IVORY,IVORY

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i198605-198910

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-18i198205-198605

IVORY,IVORY

main87834-20080-28i198605-198910

IVORY,IVORY

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-12100i198408-198605

DOOR TYPE

main87908-16370i198605-198805

MIRROR=BLUE,DOOR TYPE

main87908-32010i198205-198209

FENDER TYPE

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-12090i198408-198910

DOOR TYPE

main87909-16420i198605-198805

MIRROR=BLUE DOOR TYPE

main87909-32010i198408-198409

FENDER TYPE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16231i198408-198605

*DM

main87910-16241i198408-198910

BLACK,*DM

main87910-16251i198408-198605

BLACK,*RC,*DM

main87910-16261i198408-198910

BLACK,*RC,*DM

main87910-16310-02i198512-198605

RED,*RC,*DM,RED

main87910-16310-03i198509-198605

EX EXTRA,SILVER-M,*RC,*DM,SILVER METALLIC; VE EXTRA,SILVER-M,*RC,*DM,SILVER METALLIC

main87910-16310-08i198512-198605

WHITE,*RC,*DM,WHITE

main87910-16310-13i198710-198801

GRAY,*RC,DM,GRAY-METALLIC

main87910-16310-23i198806-198910

GRAY-M(168),*DRC,GRAY METALLIC

main87910-16370-03i198605-198805

SILVER-M,*RC,MIRROR=BLUE,*DM,SILVER METALLIC

main87910-16380-02i198512-198605

RED,*RC,*DM,RED

main87910-16380-08i198512-198605

WHITE,*RC,*DM,WHITE

main87910-16390i198605-198805

BLACK,*RC,MIRROR=BLUE,*DM

main87910-16400-03i198605-198805

SILVER-M,*DM,SILVER METALLIC

main87910-80008i198205-198910

FENDER TYPE

main87910-80060i198308-198408

*DM

main87910-80061i198305-198408

*DM

main87910-80062i198308-198408

*RC,*DM

main87910-80063i198305-198408

*RC,*DM

main87910-80107i198408-198409

*RC,FENDER TYPE

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-16070i198205-198910

main87911-16080i198209-198211

W/REMOTE CONTROL MIRROR

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16261i198408-198605

*DM

main87940-16271i198408-198910

BLACK,*DM

main87940-16281i198408-198605

BLACK,*RC,*DM

main87940-16291i198408-198910

BLACK,*RC,*DM

main87940-16350-02i198512-198605

RED,*RC,*DM,RED

main87940-16350-03i198509-198605

EX EXTRA,SILVER-M,*RC,*DM,SILVER METALLIC; VE EXTRA,SILVER-M,*RC,*DM,SILVER METALLIC

main87940-16350-08i198512-198605

WHITE,*RC,*DM,WHITE

main87940-16350-13i198710-198910

main87940-16350-23i198806-198910

GRAY-M(168),*DRC,GRAY METALLIC

main87940-16420-03i198605-198805

SILVER-M,*RC,MIRROR=BLUE,*DM,SILVER METALLIC

main87940-16430-02i198512-198605

RED,*RC,*DM,RED

main87940-16430-08i198512-198605

WHITE,*RC,*DM,WHITE

main87940-16440i198605-198805

BLACK,*RC,MIRROR=BLUE,*DM

main87940-16450-03i198605-198805

SILVER-M,*DM,SILVER METALLIC

main87940-80008i198205-198910

FENDER TYPE

main87940-80061i198308-198408

*DM

main87940-80062i198305-198408

*DM

main87940-80063i198308-198408

*RC,DOOR TYPE

main87940-80064i198305-198408

*RC,*DM

main87940-80107i198209-198211

*RC,FENDER TYPE

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-16070i198205-198910

main87941-16080i198209-198211

W/REMOTE CONTROL MIRROR

9331915016

main93319-15016

9411040600

main94110-40600

11 parts on this diagram · 2 diagrams in section

MIRROR for Toyota CORSA/TERCEL

This section contains 19 genuine Toyota parts for the MIRROR system of the Toyota CORSA/TERCEL. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
