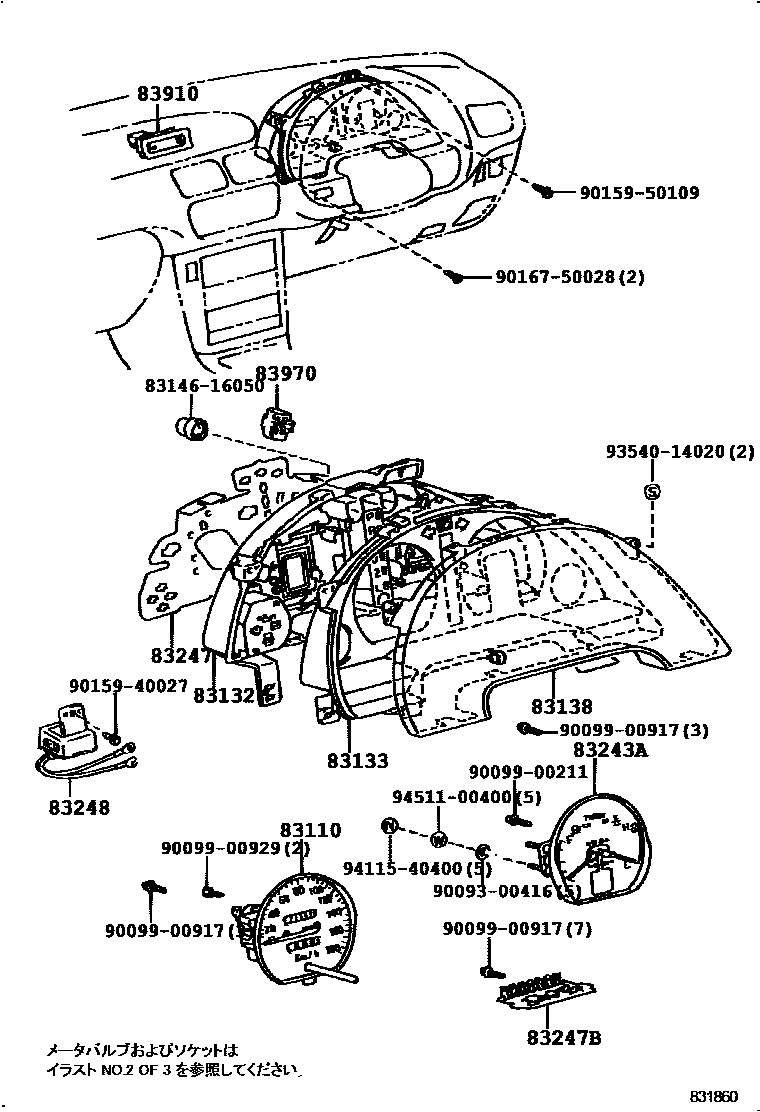

Toyota CORSA/TERCEL — METER
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
main83133-1G110iEL41..4F..(AVE,AXX,SOP);NL40..5F..(AVE,AX,AXX,JOI,MOA); EL41..4F..(AX,JOI,MOA,TX,VC)199009-199208
83138GLASS, SPEEDOMETER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83248CHIME, SPEED WARNING
83910CLOCK ASSY
BLACK,TRIM2#
GRAISH BLUE,TRIM8#
SPRUCE,TRIM6#
BLACK,TRIM2#
SPRUCE,TRIM6#
EISEN BLUE,TRIM8#
83970BUZZER ASSY, REVERSE WARNING
8314616050GROMMET, METER GLASS
main83146-16050
9009300416
main90093-00416
9009900211
main90099-00211
9009900917
main90099-00917
9009900929
main90099-00929
9015940027
main90159-40027
9015950109
main90159-50109
9016750028
main90167-50028
9354014020
main93540-14020
9411540400
main94115-40400
9451100400
main94511-00400
21 parts on this diagram · 5 diagrams in section
METER for Toyota CORSA/TERCEL
This section contains 40 genuine Toyota parts for the METER system of the Toyota CORSA/TERCEL. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
