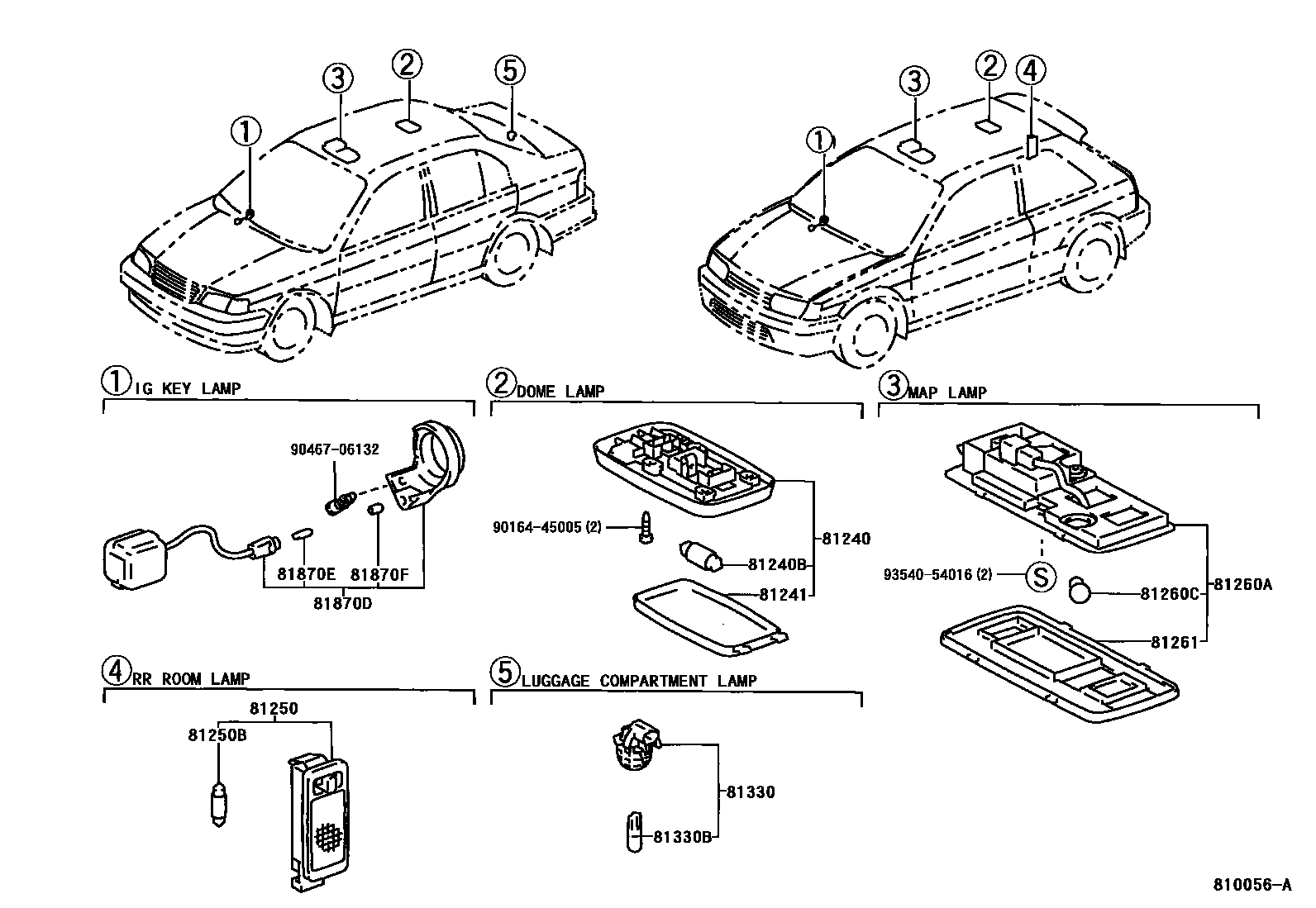

Toyota CORSA/TERCEL — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1i199409

LT.BLUISH GRAY,TRIM1#

main81240-12060-E0i199712

MD.OAK,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i199409

81241LENS, ROOM LAMP, NO.1

main81241-12020i199409

81250LAMP ASSY, ROOM, NO.2

main81250-16040i199409

81250BBULB, ROOM LAMP, NO.2

main90981-11016i199409

81260ALAMP ASSY, MAP

main81260-20160-B0i199409

LT.BLUISH GRAY,TRIM1#

main81260-20160-E3i199712

MD.OAK,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-12014i199409

81261LENS AND COVER, MAP LAMP

main81261-20160-B1i199409

LT.BLUISH GRAY,TRIM1#

main81261-20160-E2i199712

MD.OAK,TRIM4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090i199409

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020i199409

81870DLAMP ASSY, KEY CYLINDER

main81870-32051i199409

81870EBULB, KEY CYLINDER LAMP

main90981-11018i199409

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i199409-199712

9016445005

main90164-45005

9046706132

main90467-06132

9354054016

main93540-54016

16 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota CORSA/TERCEL

This section contains 16 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CORSA/TERCEL. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
