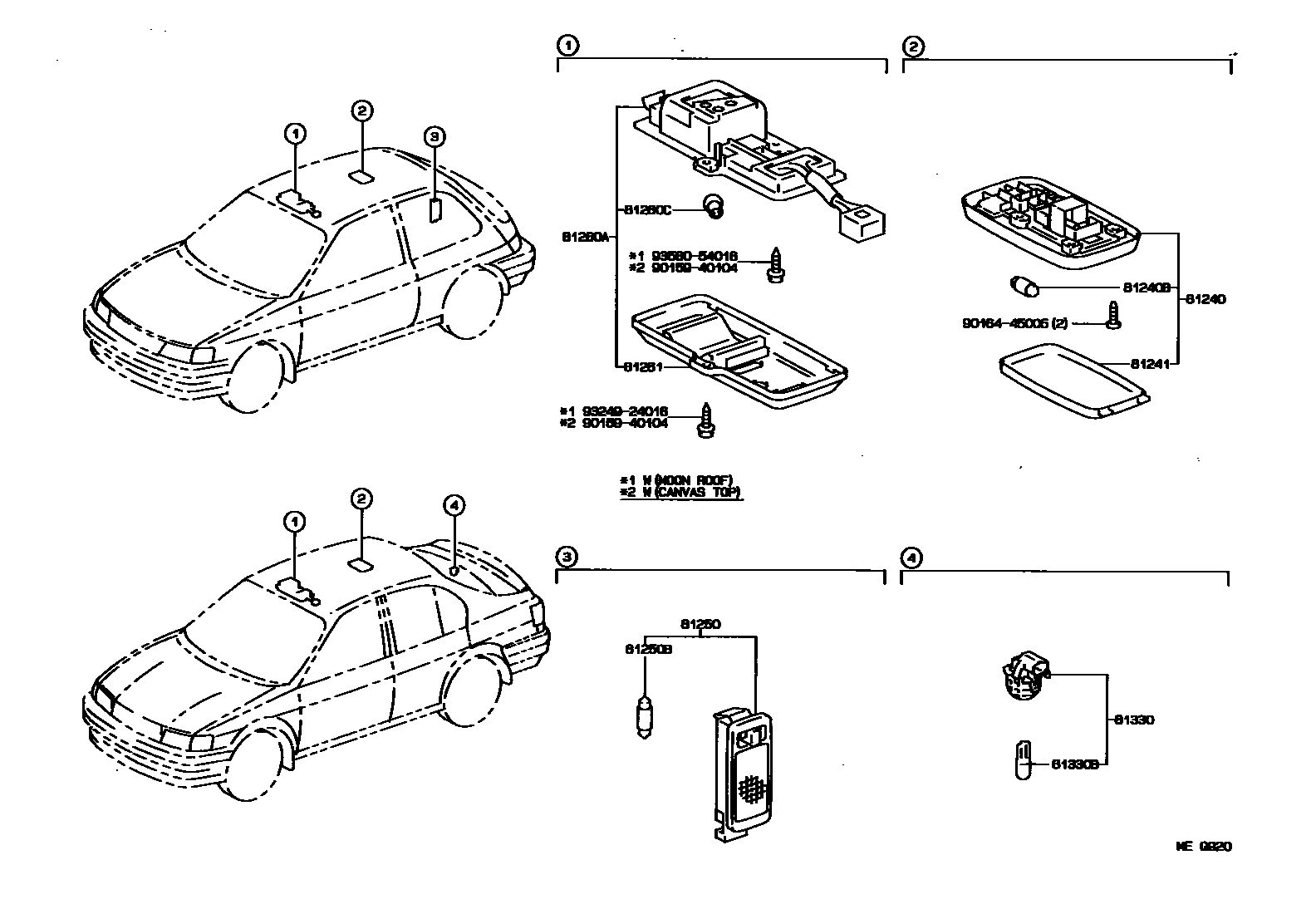

Toyota CORSA/TERCEL — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
main81240-12020-17iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ); EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ)199009-199208
main81240-12020-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ); EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ)199208-199409
LIGHT GRAY,TRIM2#
SPRUCE,TRIM6#
GRAISH BLUE,TRIM8#
LI.SPRUCE,TRIM6#
LIGHT GRAY,TRIM2#
LI.BLUE,TRIM8#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
GRAY,TRIM2#
GRAISH BLUE,TRIM8#
SPRUCE,TRIM6#
LI.SPRUCE,TRIM6#
LI.BLUE,TRIM8#
LI.GRAY,TRIM2#
SPRUCE,TRIM6#
GRAISH BLUE,TRIM8#
LIGHT GRAY,TRIM2#
LI.SPRUCE,TRIM6#
LI.BLUE,TRIM8#
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
GRAY,TRIM2#
GRAISH BLUE,TRIM8#
SPRUCE,TRIM6#
SPRUCE,TRIM6#
GRAISH BLUE,TRIM8#
LIGHT GRAY,TRIM2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
9015940104
main90159-40104
9016445005
main90164-45005
9324924016
main93249-24016
9356054016
main93560-54016
14 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota CORSA/TERCEL
This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CORSA/TERCEL. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
