Toyota CORSA/TERCEL — HEATING & AIR CONDITIONING - COMPRESSOR

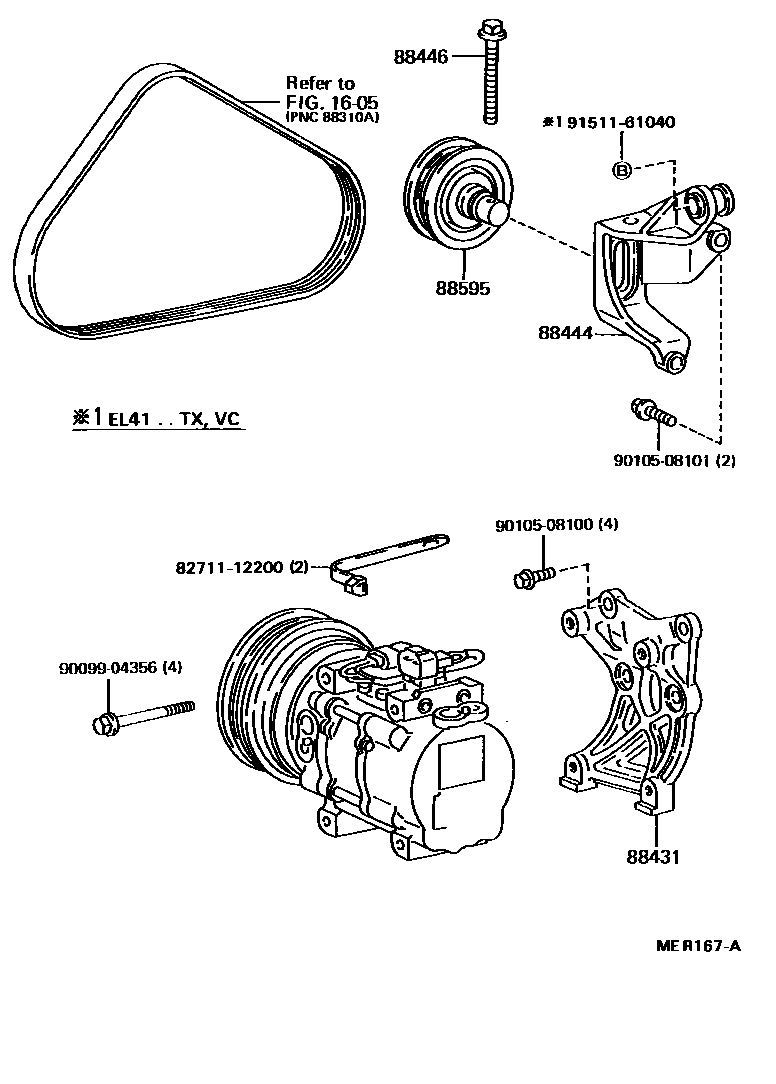

Parts diagram

1605V-BELT

→ Go to FIG 16-05

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060i199009-199409

main88431-16070i199009-199208

main88431-16080i199009-199409

main88431-16120i199405-199409

SCROLL COMPRESSOR

88444BRACKET, IDLE PULLEY

main88444-10031i199009-199409

88446BOLT, IDLE PULLEY

main88446-12030i199009-199409

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170i199009-199208

main88440-17010i199009-199409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904356

main90099-04356

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

10 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota CORSA/TERCEL

This section contains 22 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota CORSA/TERCEL. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH).
