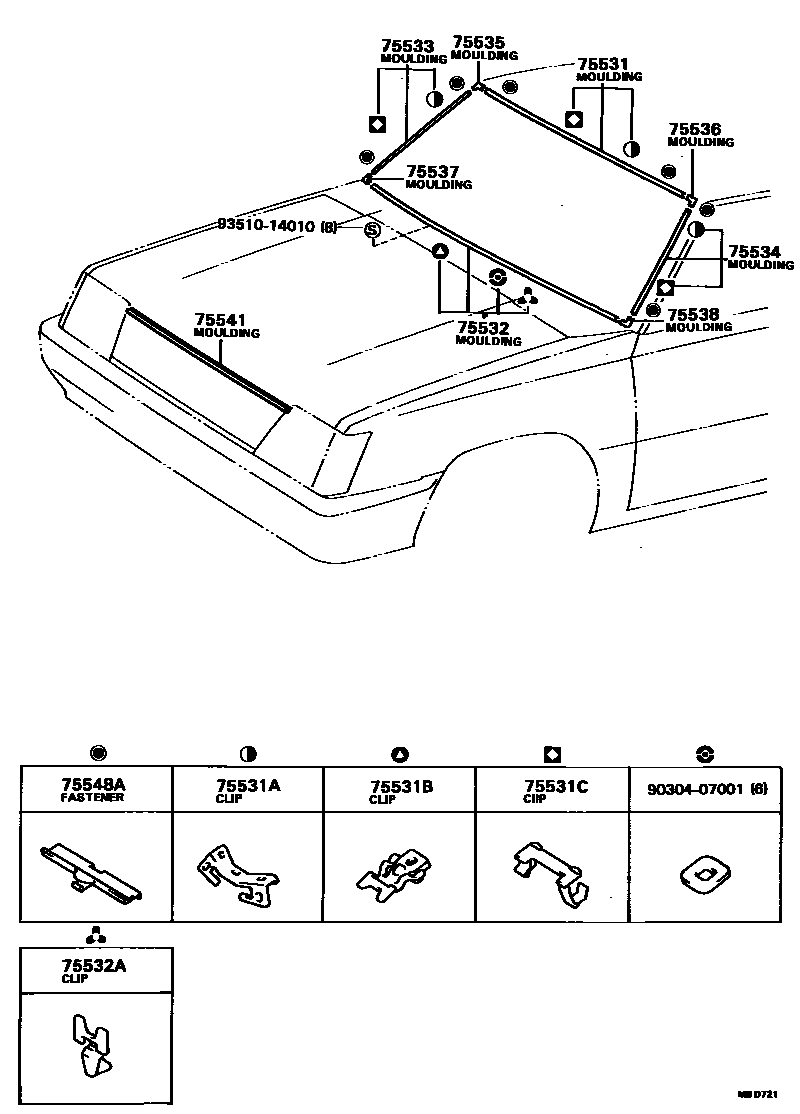

Toyota CORSA/TERCEL — FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-16030i198205-198910

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-16020×11i198205-198910

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-16020×8i198205-198910

75531CCLIP, WINDSHIELD MOULDING SET, NO.3

main75547-16010×6i198205-198306

75532MOULDING, WINDSHIELD, LOWER

main75535-16030i198205-198910

75532ACLIP, WINDSHIELD MOULDING SET

main75547-16020×2i198205-198910

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-16030i198205-198910

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-16030i198205-198910

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-16030i198205-198910

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-16030i198205-198910

75537MOULDING, WINDSHIELD CORNER, LOWER RH

main75543-16030i198205-198910

75538MOULDING, WINDSHIELD CORNER, LOWER LH

main75544-16030i198205-198910

75541MOULDING, HOOD, FRONT

main75771-16030i198205-198408

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-12070×6i198408-198605

main75548-16010×6i198605-198910

main75548-22060×6i198306-198408

9030407001

main90304-07001

9351014010

main93510-14010

16 parts on this diagram · 1 diagram in section

FRONT MOULDING for Toyota CORSA/TERCEL

This section contains 16 genuine Toyota parts for the FRONT MOULDING system of the Toyota CORSA/TERCEL. Key components include: MOULDING, WINDSHIELD, OUTER UPPER, CLIP, WINDSHIELD MOULDING SET, NO.1, CLIP, WINDSHIELD MOULDING SET, NO.2, CLIP, WINDSHIELD MOULDING SET, NO.3, MOULDING, WINDSHIELD, LOWER.
